electric modular oven

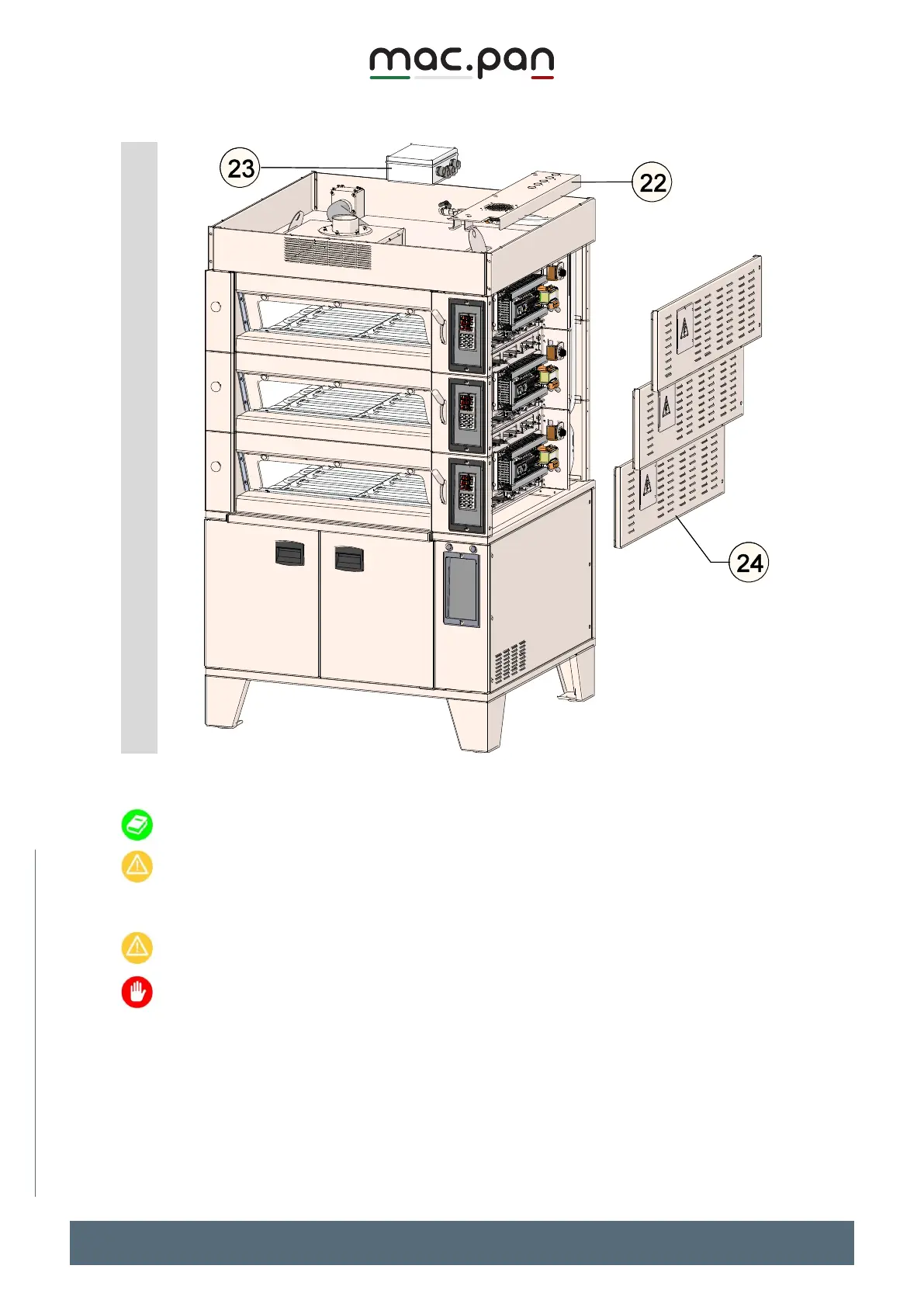

FIG.10
Use self-tapping screws to install the lateral compensator of the top cover (Pos.22) .
Install a cooling fan above the electrical panels, on the aforementioned compensator.
Position the junction box of the electrical system (Pos.23) on the cover of the oven.
Connect the junction box to the panel installed on the baking chamber following the wiring
diagram (annex "F")
Carry out the above mentioned operation for each one of the chambers
Install the cover panels on the side of the electrical panel (Pos.24).
Do not use thermoinsulating material for these panels.
Avoid inserting insulating material in this area; the components of the electrical panel must be
ventilated constantly.
Excessive heat build-up could damage it irreparably
