electric modular oven
PAG. 10 CAP. 3 MD
Lamp replacement

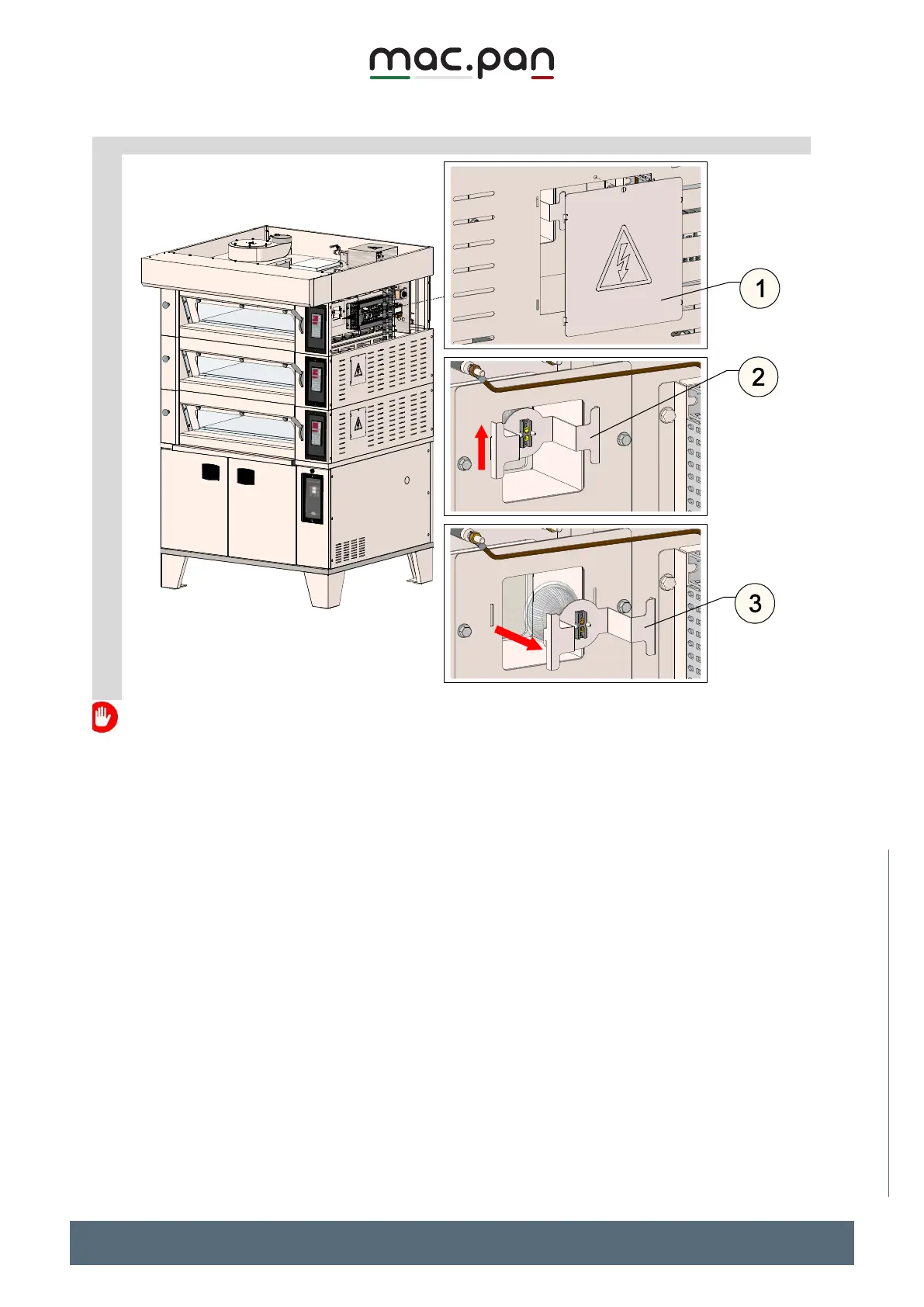

FIG.9
Power off the oven
To access the lamp :
- Unscrew the casing fixing screws and remove the above mentioned casing (Pos. 1)
- Unhook the lamp support rod (see arrow - Pos. 2).
- Extract the lamps support rod (Pos. 3).
- Proceed with the replacement of the lamp with one of equal type.
- Re-assemble all the parts previously removed.
