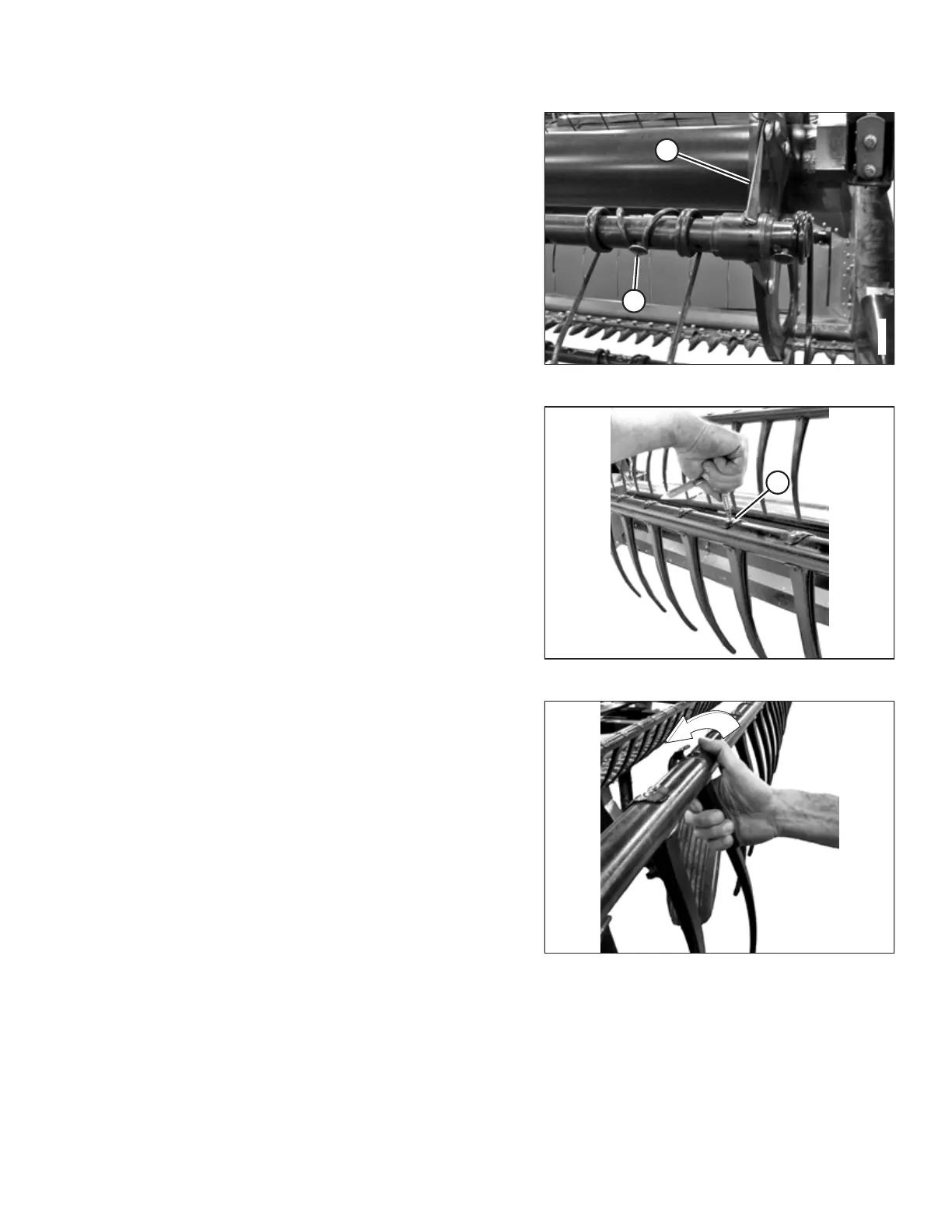

Figure 4.17: Removing Steel Finger
Steel Finger
27. Remove bolts (B) from the existing fingers and slide the
fingers over the tine tube to remove. (remove tine tube
arms (A) from the tine tubes as necessary).
Figure 4.18: Removing Plastic Finger
Plastic Finger
28. Remove screw (A) using a Torx
®
Plus 27 IP socket wrench.
Figure 4.19: Removing Plastic Finger
Plastic Finger
29. Push the clip at the top of the finger back towards the reel
tube as shown and remove the finger from the tube.
REMOVING EXISTING FINGERS AND BUSHINGS
