215505 22 Revision A
$

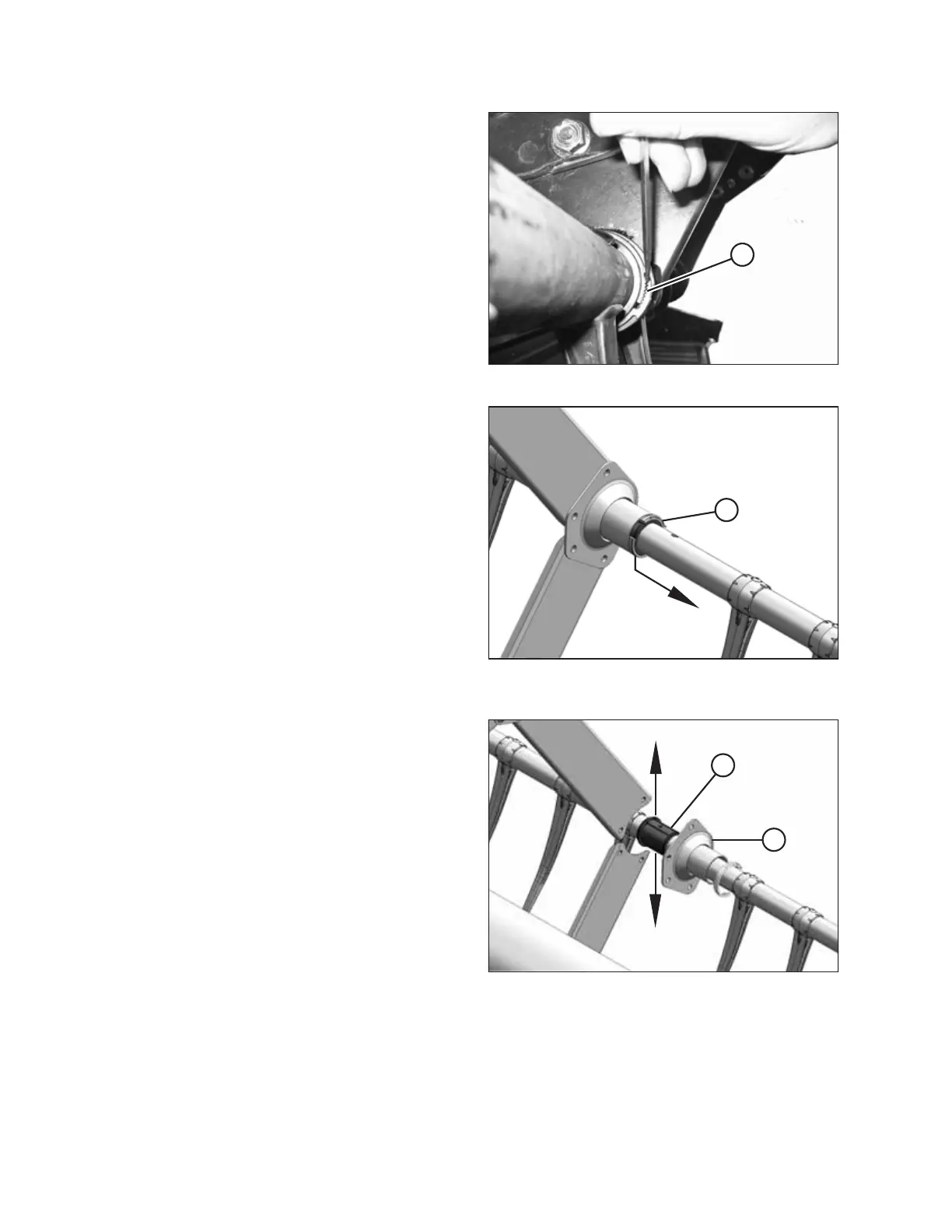

Figure 4.20: Bushing Clamp
30. Release bushing clamps (A) using a small screwdriver to
separate the serrations.
$
Figure 4.21: Tine Tube Reinforcing Kit Bushing Clamp
(Option)
31. Move clamps (A) off the bushings.
$
%
Figure 4.22: Tine Tube Reinforcing Kit Support
(Option)
32. On each reel, there are three right-facing supports (A). Slide
the support off bushing halves (B).
REMOVING EXISTING FINGERS AND BUSHINGS
