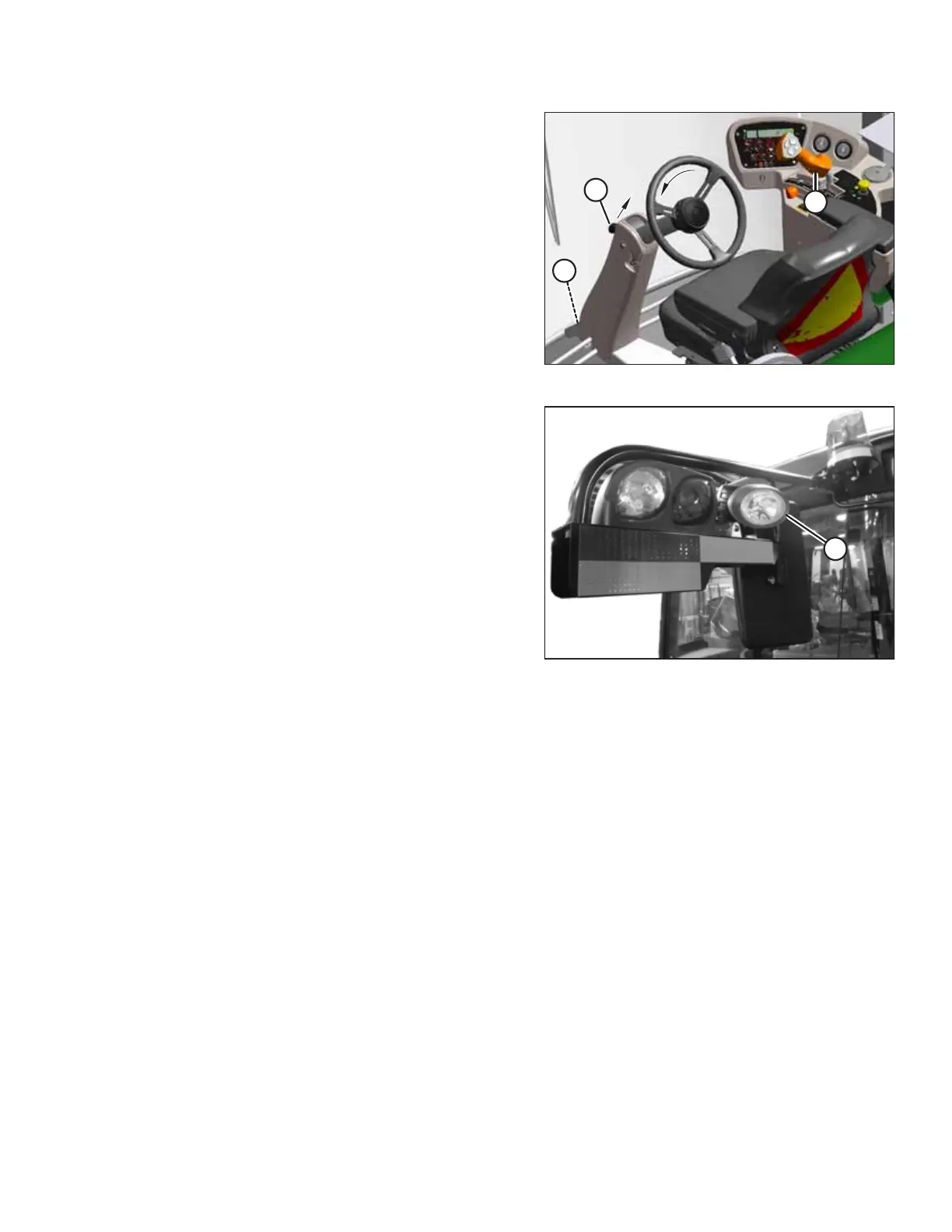

Figure 3.39: Operator Console
4. Follow these steps to put the windrower in engine-
forward mode:
a. Place ground speed lever (GSL) (A) in N-DETENT. Engine
can be running.
IMPORTANT:
If GSL is NOT in N-DETENT, damage to the GSL cable may
result when swiveling operator’s station.
b. Pull up on knob (B) and hold to release latch (C) at base
of steering column.
c. Turn steering wheel clockwise to pivot operator’s
station counterclockwise 180° until pin engages latch
to secure operator’s station in new position.
Figure 3.40: HID Auxiliary Light
5. If HID auxiliary lighting has been installed, confirm that the
HID lights turned off when the operator’s station was
turned.
INSTALLATION INSTRUCTIONS
