147762 22 Revision C
3.4 Checking Operation of Lights
Once all parts have been installed, check to make sure the high intensity discharge (HID) auxiliary lights are operating
properly. Follow these steps:

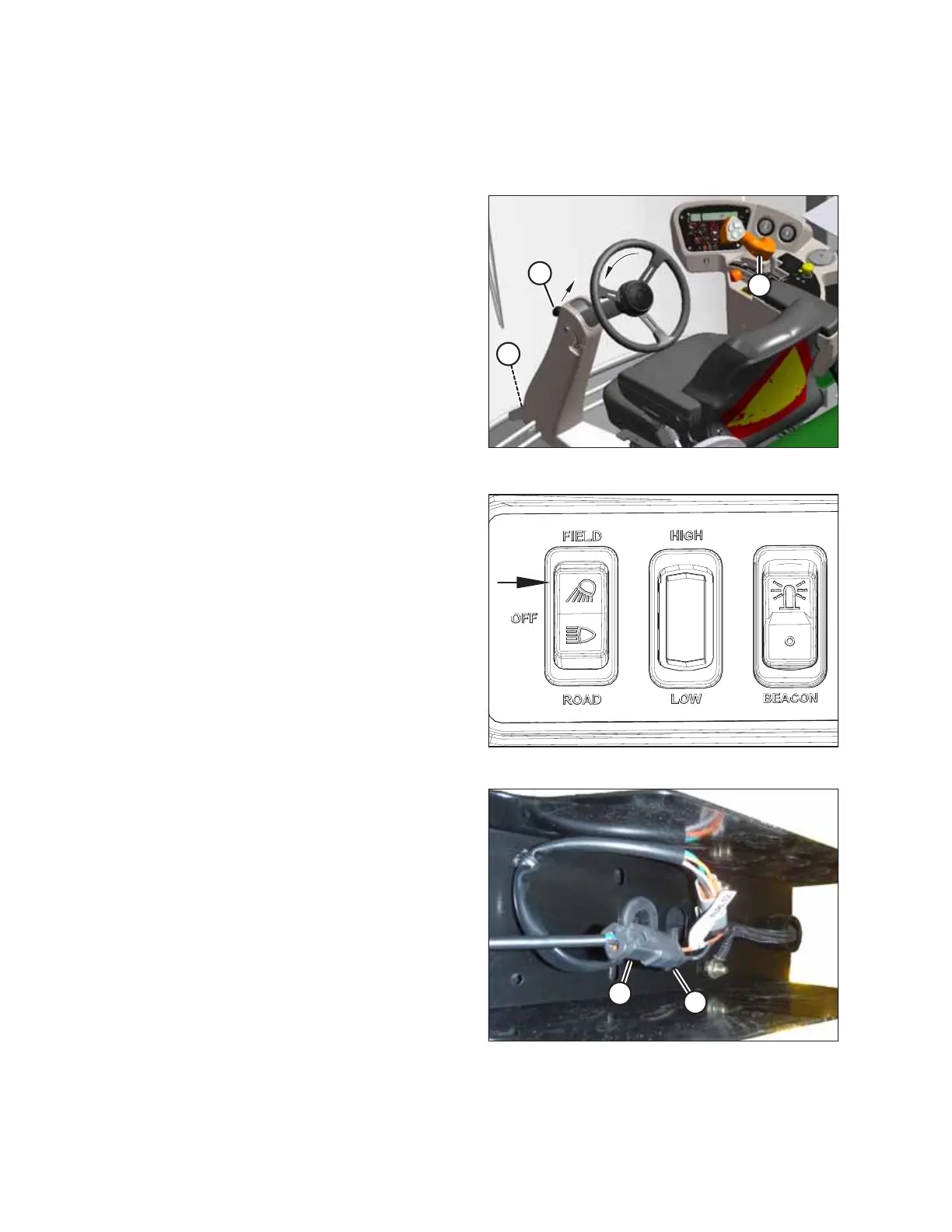

Figure 3.36: Operator Console
1. If the windrower is in engine-forward mode (operator’s
seat faces the engine), follow these steps to put the
windrower in cab-forward mode:
a. Place ground speed lever (GSL) (A) in N-DETENT. Engine
can be running.
IMPORTANT:
If GSL is NOT in N-DETENT, damage to the GSL cable may
result when swiveling operator’s station.
b. Pull up on knob (B) and hold to release latch (C) at base
of steering column.
c. Turn steering wheel counterclockwise to pivot
operator’s station clockwise 180° until pin engages
latch to secure operator’s station in new position.
Figure 3.37: Field Light Switch in Cab Headliner
2. If HID auxiliary lighting has been installed, turn on the field
lights and confirm that the HID lights on the mirror
supports also turn on.
Figure 3.38: Underside of Right Light/Mirror Mounting
Bracket
3. If HID auxiliary lighting has NOT been installed, disconnect
the HID light harness (A) below each light/mirror mounting
bracket from the main harness connector (AUX LT1 or AUX
LT2) (B). Measure the voltage across pins 1 and 2 on
connector (B)—it should be 12V. This confirms that the
existing wiring is still functioning and that the auxiliary
lights should work when connected.
INSTALLATION INSTRUCTIONS
