INSTALLATION INSTRUCTIONS
3.3 Installing Fuse Decal
1. Move right cab-forward side platform rearward. For
instructions, refer to windrower operator’s manual or
technical manual.
2. Undo clips (A) on both sides of the fuse and
breaker box.
3. Remove fu se box cov er (B).

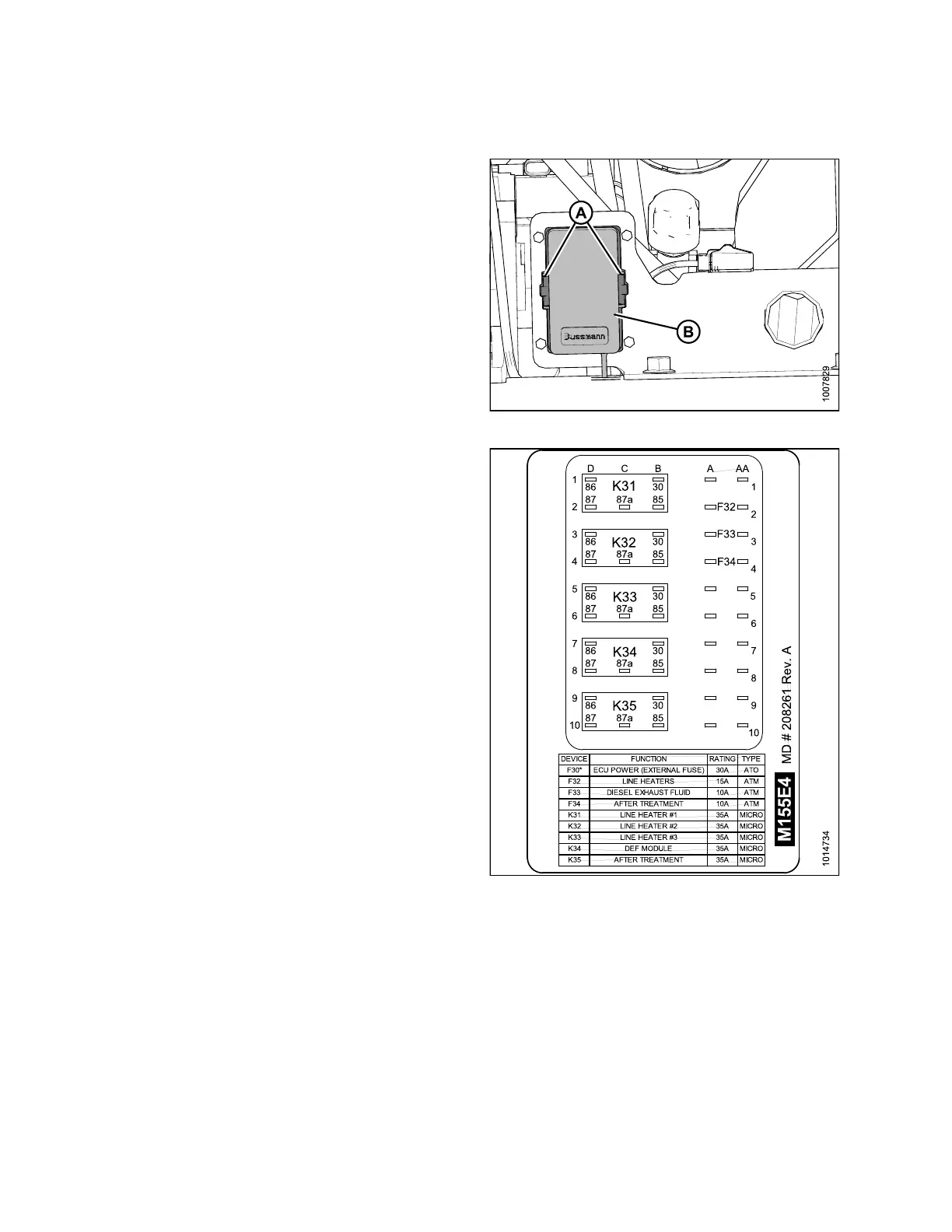

Figure 3.1
2: Fuse Box
4. Install the decal on the inside fuse cover.
Figure 3.13: Fuse Decal
167730
14
Revision B
