INSTALLATION INSTRUCTIONS
3. Thread fitting (A) into open port. Finger tighten, then
torque to 19–21 ft·lbf (26–29 N·m).
4. Repeat Steps 2, page 12 and 3, page 13 until all fo ur
plugs ha ve been replaced .

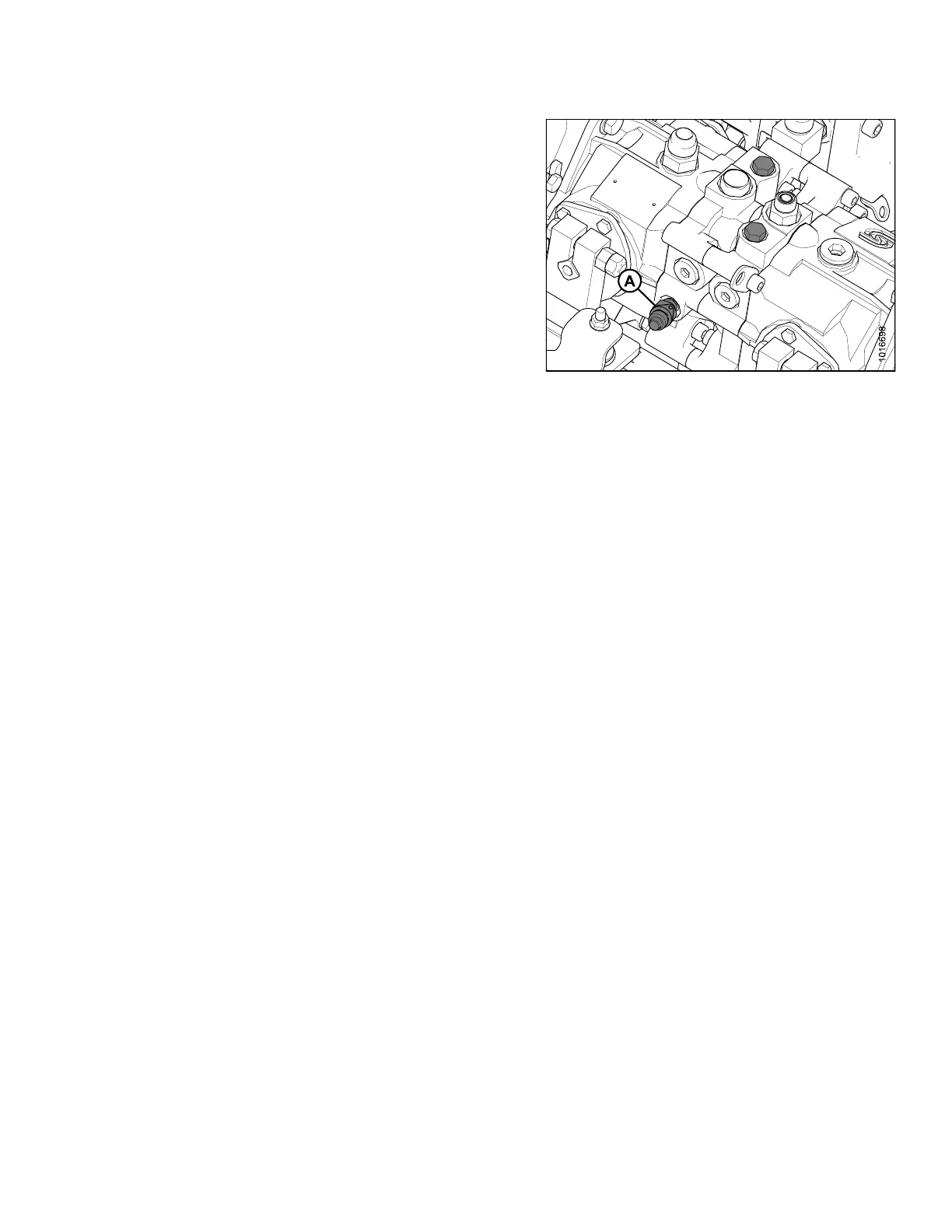

Figure 3.11: Traction Drive Pump Assembly
167730 13 Revision B
