Introduction

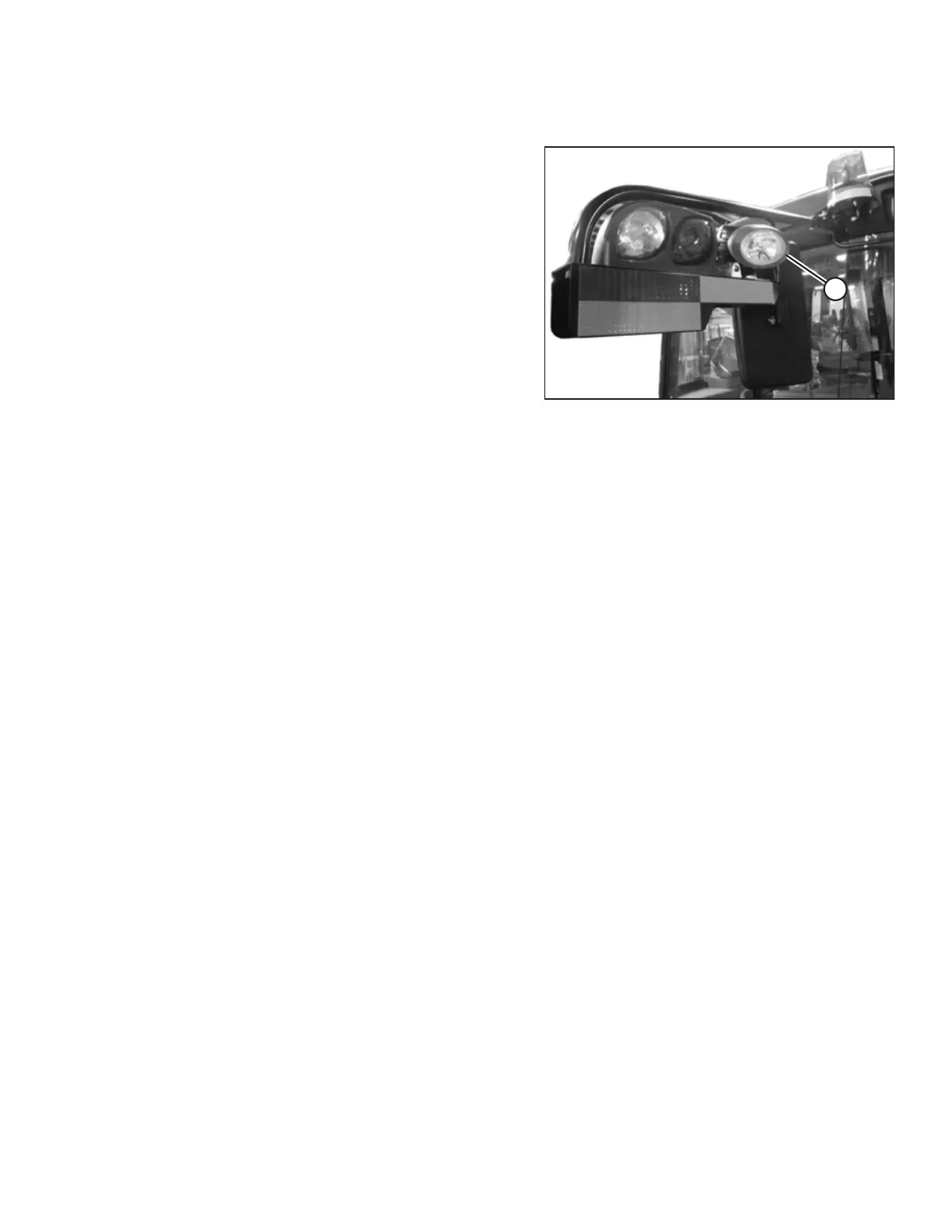

Figure 1: HID Auxiliary Lighting
Some M155, M155E4, and M205 Self-Propelled Windrowers
from model year 2015 or earlier that are configured with the
high intensity discharge (HID) auxiliary lighting option (A)
experience flickering of lights and overheating of the fuse block.
The Auxiliary Lighting Harness Repair kit (MD #167693) can be
used to correct these issues.
This document explains how to install the kit. A list of parts
included in the kit is provided in 2 Parts List, page 5.
Installation time
It will take approximately 1 hour to install this kit.
Conventions
The following conventions are followed in this document:
• Right and left are determined from the operator’s position, facing forward with the windrower in cab-forward position.
• Unless otherwise noted, use the standard torque values provided in the windrower operator’s manual and technical
manual.
NOTE:
Keep your MacDon publications up-to-date. The most current version of this instruction can be downloaded from our
Dealer-only site (https://portal.macdon.com) (login required).
NOTE:
This document is currently available in English only.
