CAB DISPLAY MODULE (CDM)
4. Press SELECT (C) until TILT CYL INSTALLED? is
displayed on the upper line.
• NO/YES is dis playe d on the lower lin e .
5. Press right (B)arrow to select YES. Press SELECT (C).
6. Press PROGRAM (A) to ex it Programming Mode or
press SELECT (C) to proceed to next WINDROWER
SETUP action.
Figure 4.7
6: M105 Hyd rau lic C enter-Link
Figure
4.77: M155 Hy d raulic Center-Link
4.4.3
Activating the Reel Fore-Aft Function on an M105
NOTE:
Reel fore-aft activation requires installation of the Windrower Optional Hydraulic Fore-Aft Kit (MD #B5577). For
more information, refer to the windrower operator’s manual or the windrower technical manual.
1. Turn ignition key to RUN, or start the engine. Refer to
3.15 Starting Engine, page 84.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is dis playe d on the lower lin e .
3. Press right arrow(B) to select YES. Press SELECT (C).
• SET HEADER TYPE? is displayedon the upper line.

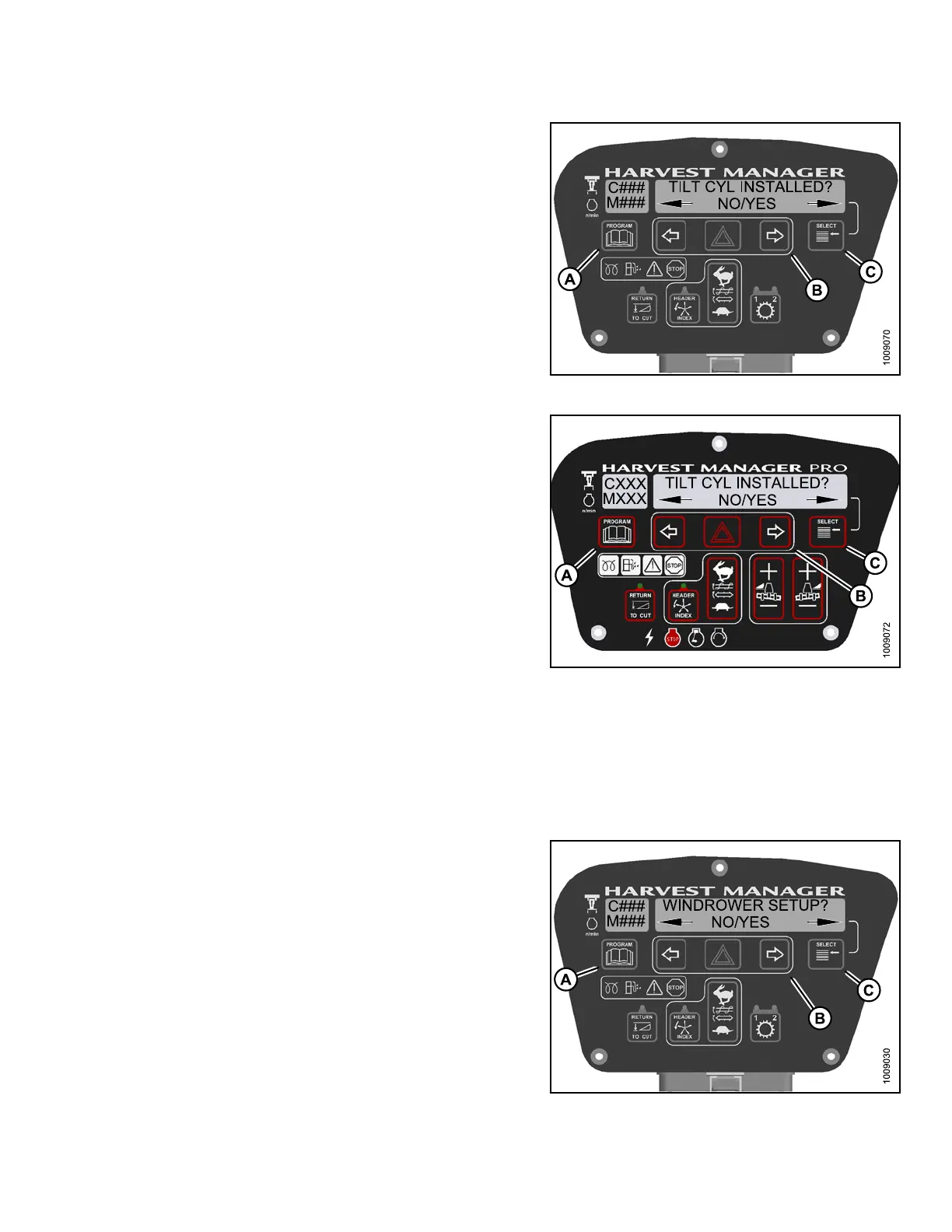

Figure 4.78: CDM Programming Buttons
147962 187 Revision A
