CAB DISPLAY MODULE (CDM)
6. Press SELECT (D) until DISK SPEE D is displayed on
the upper line.
• ENABLED/LOC KED is displayed on t he lower line.
7. Press left arrow (B) to enable DISK SPEED control
switch, or press right arrow (C) to lock DISK SPEED
control switch.
8. Press PROGRAM (A) to ex it Programming Mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.

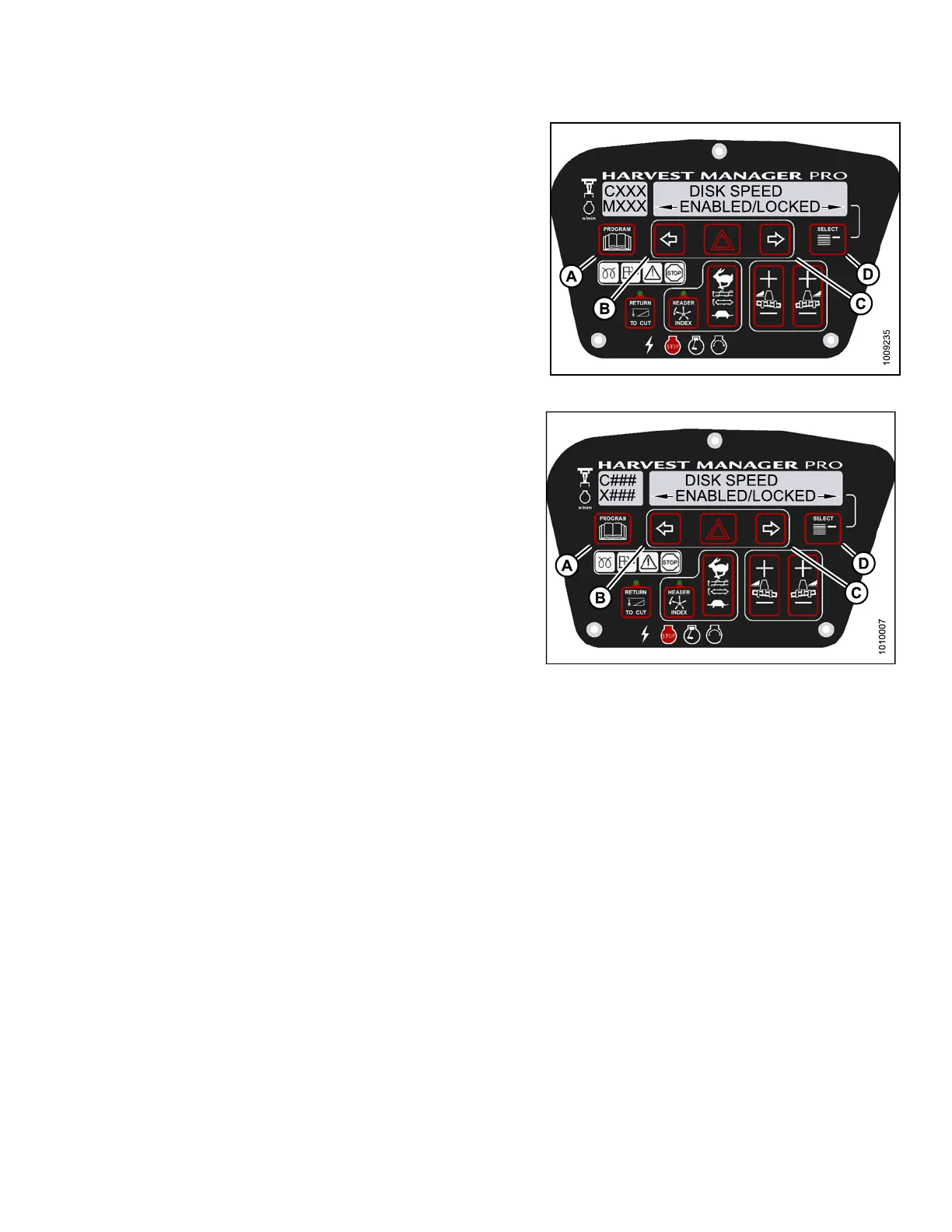

Figure 4.1
68: M155 Disc Speed Control Lock
Figure 4.169: M205 Disc Speed Control Lock
4.5.3 Activating the Header Float Control Lockout
NOTE
:
The h
eader MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
auto
matically adjusts its programming for each header.
147962
