ASSEMBLING THE WINDROWER
3.3 Installing Legs

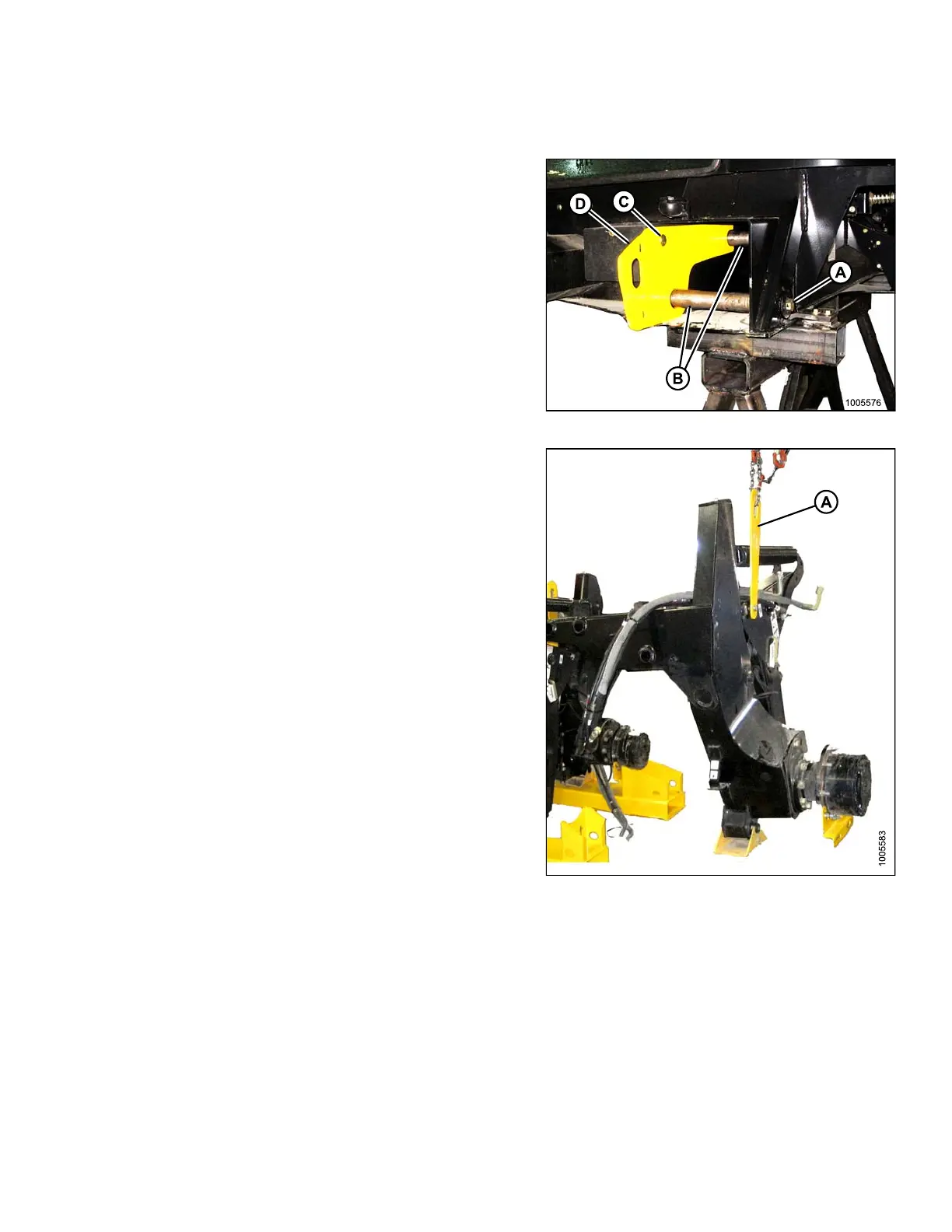

1. Remove the front leg bolts (A) and pins (B) and set
aside for reinstallatio n . Remove carriag e bolt (C) and
remove lifting plate (D).
Figure 3.8
:LiftingPlate
2. Attach the front leg to a lifting device using lifting
bar (A).
3. Position the leg at the frame.
Figure 3.9: Leg Position
