UNLOADING T HE WINDROWER
2.7 Removing Leg Assemblies
1. Ensu re the lift bar is attached to the leg assemb ly a s
shown and the clevis pin is installed w ith t he head on
near side.
2. Attach the chain (A) to the lifting bar (B) on the leg
assembly, and connect the chain to a lifting device with
a minimum lifting capacity of 2268 kg (5000 lb.).

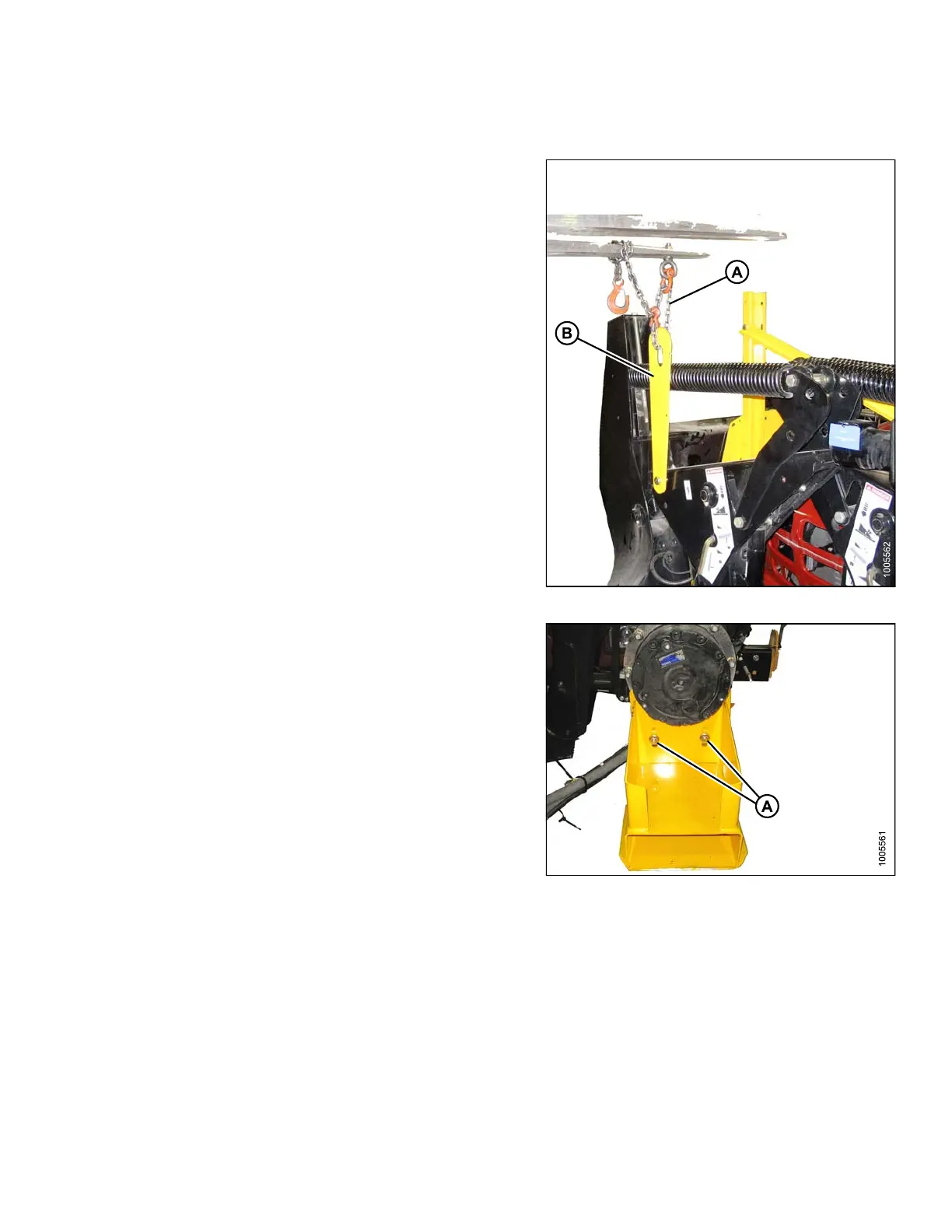

Figure 2.27: Leg Shipping Assembly
3. Remove t
wo bolts (A) from the lower support channel.
Figure 2.28: Lower Support Channel
147962
21
Revision A
