CAB DISPLAY MODULE (CDM)
4. Press right(A) arrow to select YES. P ress SELECT (B).
5. VIEW ERR OR CODES ? is displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right(A) arrow to select YES. P ress SELECT (B).
• VIEW W INDRWR CODES? is displayed on the
upper line.
• NO/YES is displayed on the lower line.

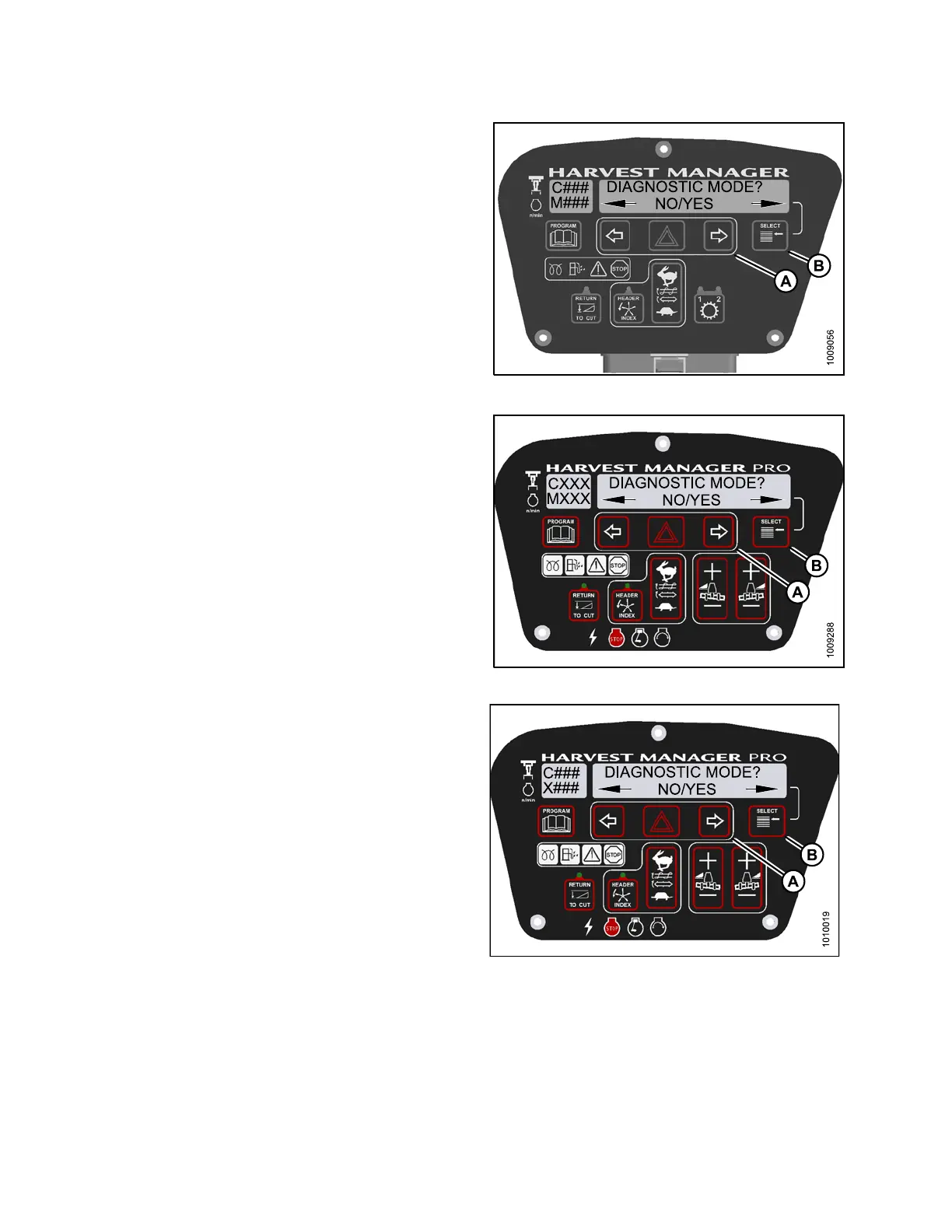

Figure 4.2
33: M105 Diagnostic Functions
Figure
4.234: M155 Diagnostic Functions
Figure 4.235: M205 Diagnostic Functions
147962 254 Revision A
