CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming M ode. Press
SELECT (C).
• WINDROWER SETUP? is displayed on the
upper line.

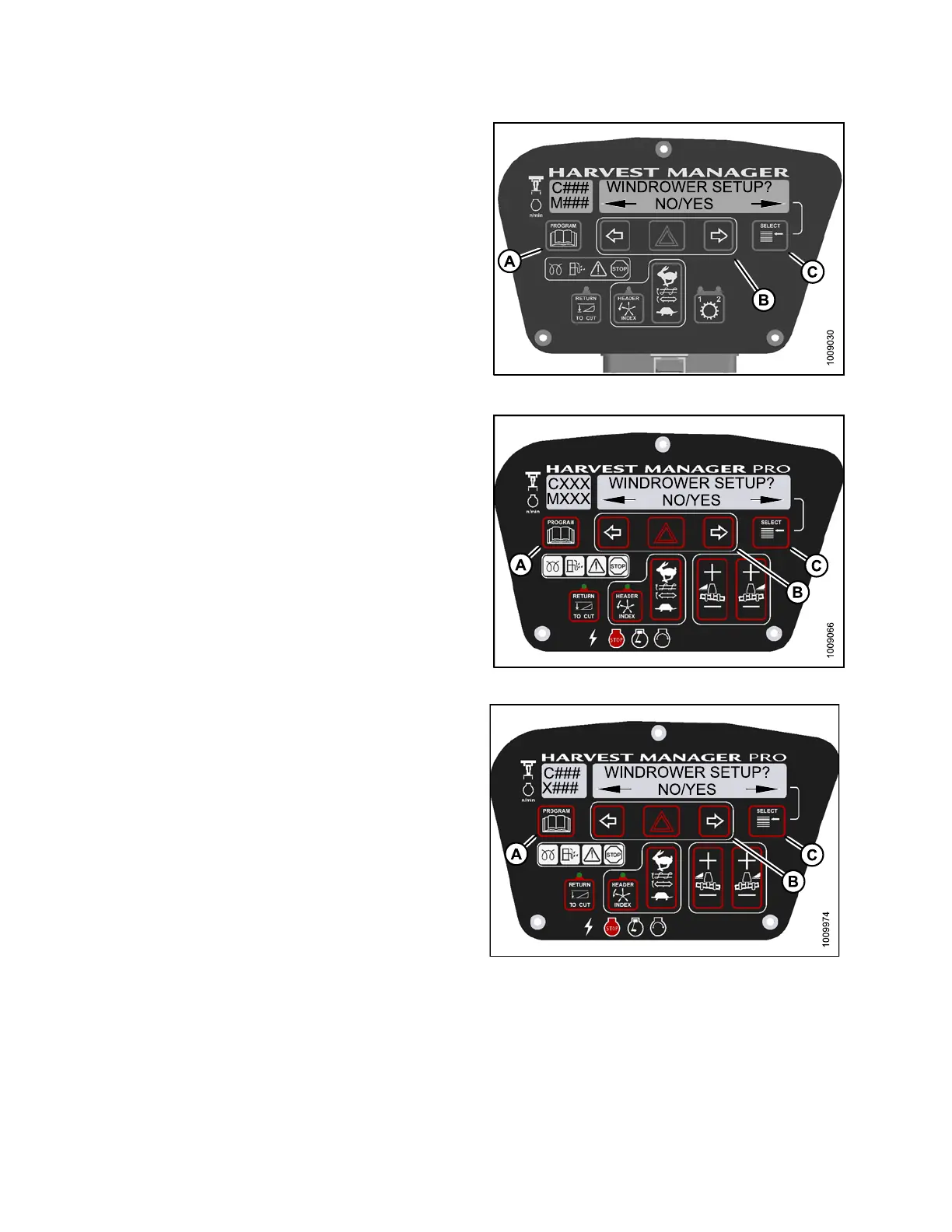

Figure 4.279: M105 CDM P rogramming Buttons
Figure 4.280: M155 CDM P rogramming Buttons
Figure 4.281: M205 CDM P rogramming Buttons
147962
27
4
Revision A
