ASSEMBLING THE WINDROWER

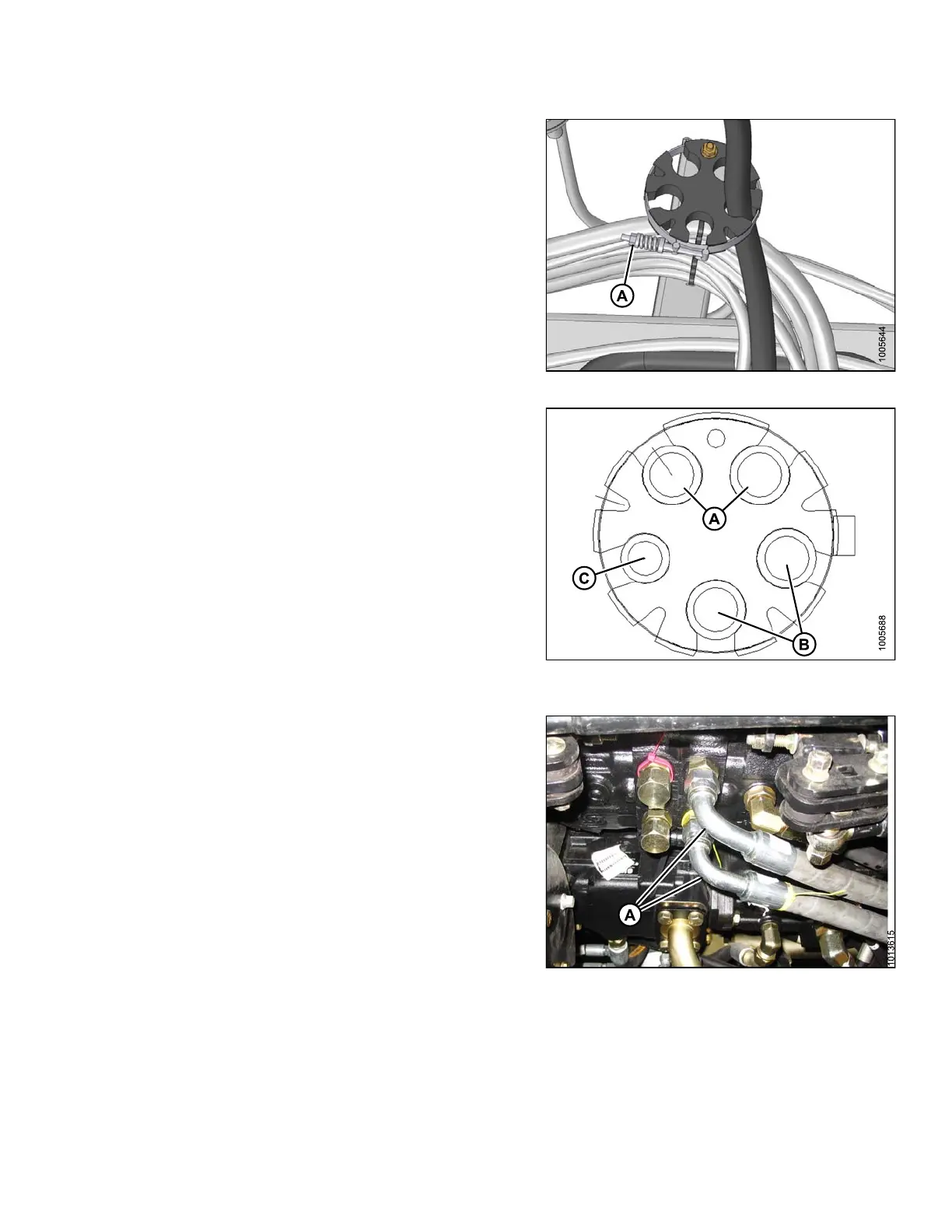

23. Remove clamp (A) from round plastic hose block (case
drainhoseispreinstalledinblock).
Figure 3.46: Hose Block
NOTE:
Case drain hose (C) is preinstalled in block.
24. Insert two left-hand traction drive hoses (A) into hose
block as shown.
25. Insert two right-hand traction drive hoses (B) into hose
block as shown.
26. Reinstall clamp.
Figure 3.47: Hose Block (View Looking
Forward)
27. Remove caps and attach hoses with short elbows (A)
to respective side of pump (either yellow or no tie).
Tighten fittings.
Figure 3.48: Pump
147962
47
Revision A
