UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007

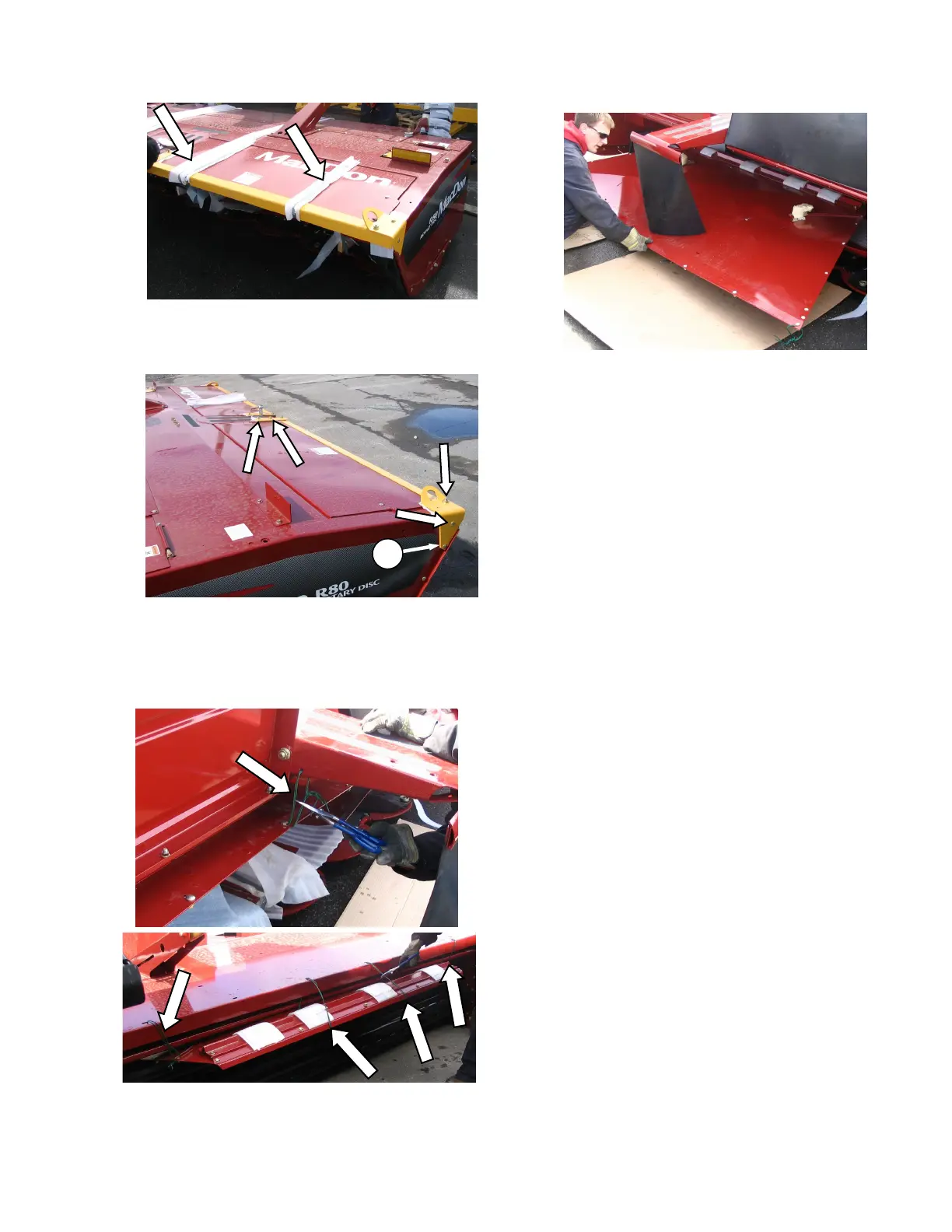

h. Cut all banding at header front covers. The
two center bands also secure the forming
shield top cover inside the header.
i. Remove five bolts and nuts on each door and
remove front angles and lift hooks. Retain
lower side bolt (A) for re-installation at same
location after hook is removed.
j. Open cutterbar doors fully.
k. Remove shipping wire holding forming shield
top cover to header.
l. Slide top cover out from front of header and
set aside for later installation.
