UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007
17

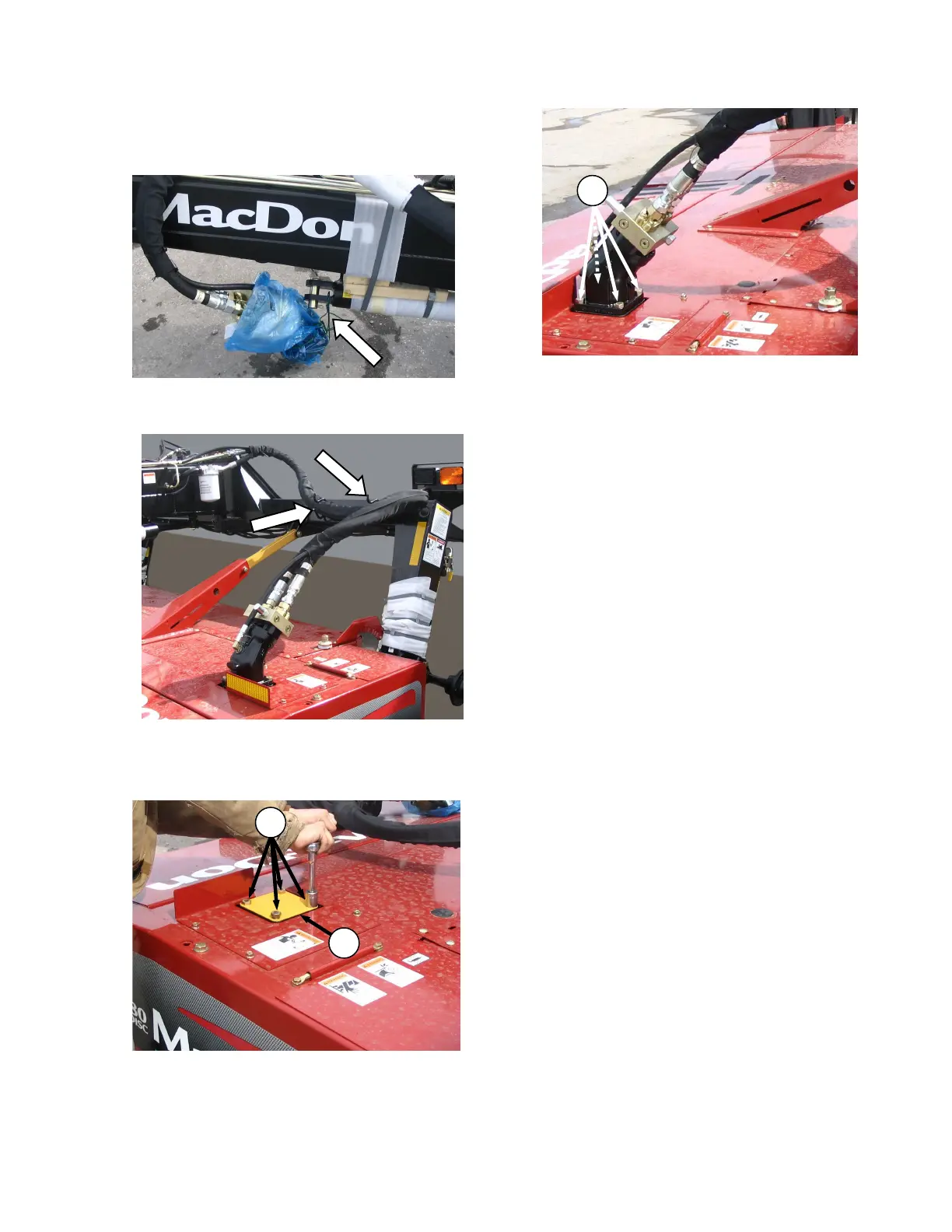

STEP 9. INSTALL HYDRAULIC
MOTOR
a. Remove shipping wire that holds motor to
steering cylinder.
b. Route the motor and main drive hoses from
the hitch to the left side of the carrier frame.
c. Route hoses through hose guides.
d. Remove four bolts (A) securing plate (B) to
gearbox and remove plate. Retain bolts.
e. Position motor on gearbox as shown and re-
install the four bolts (A). If required, loosen the
hose swivel fittings at the motor ports to
remove any twist in the hose routing from the
hitch. Re-tighten fittings.
A
B
A
