UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007
20
STEP 12. REMOVE FLOAT
SPRINGS

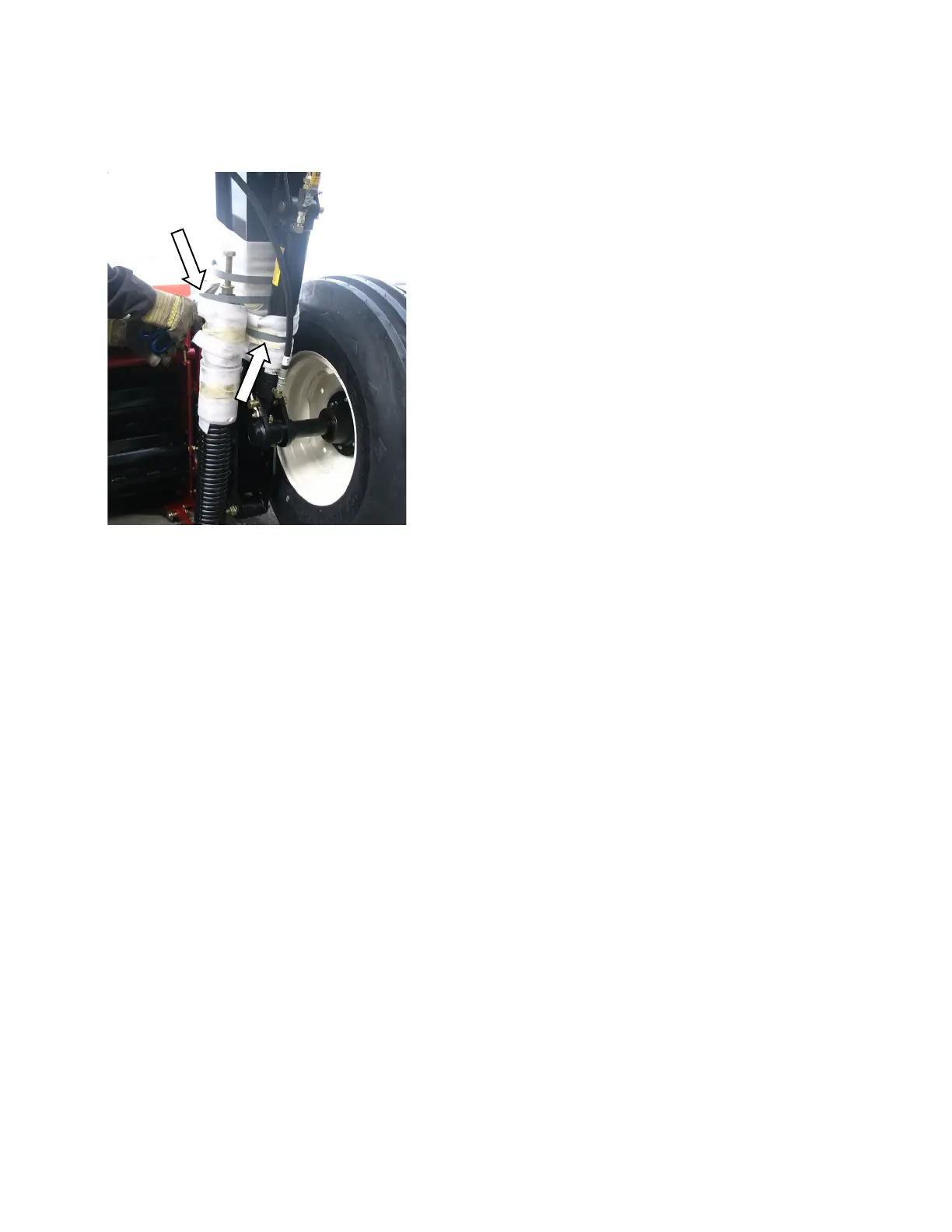

a. Cut the banding that secures the LH and RH
lift cylinders and header float springs to the
carrier frame. Lay float springs on the ground.
