UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007
STEP 8. CONNECT LIFT HOSE
IMPORTANT
Hoses should be routed so there are no
twists or sharp bends and no locations
where contact with the frame is likely.
Ensure that there is sufficient length of
hose and wiring in span to
accommodate full swing of hitch in both
directions. Relocate plastic ties if
necessary to provide suitable slack in
hoses and wiring.
IMPORTANT
To prevent contamination of the
hydraulic system, extreme care must be
taken to avoid dirt entering at connection
points. To minimize exposure to
contamination, remove cap from one
hose and its mating connection and
connect before removing other caps and
plugs.

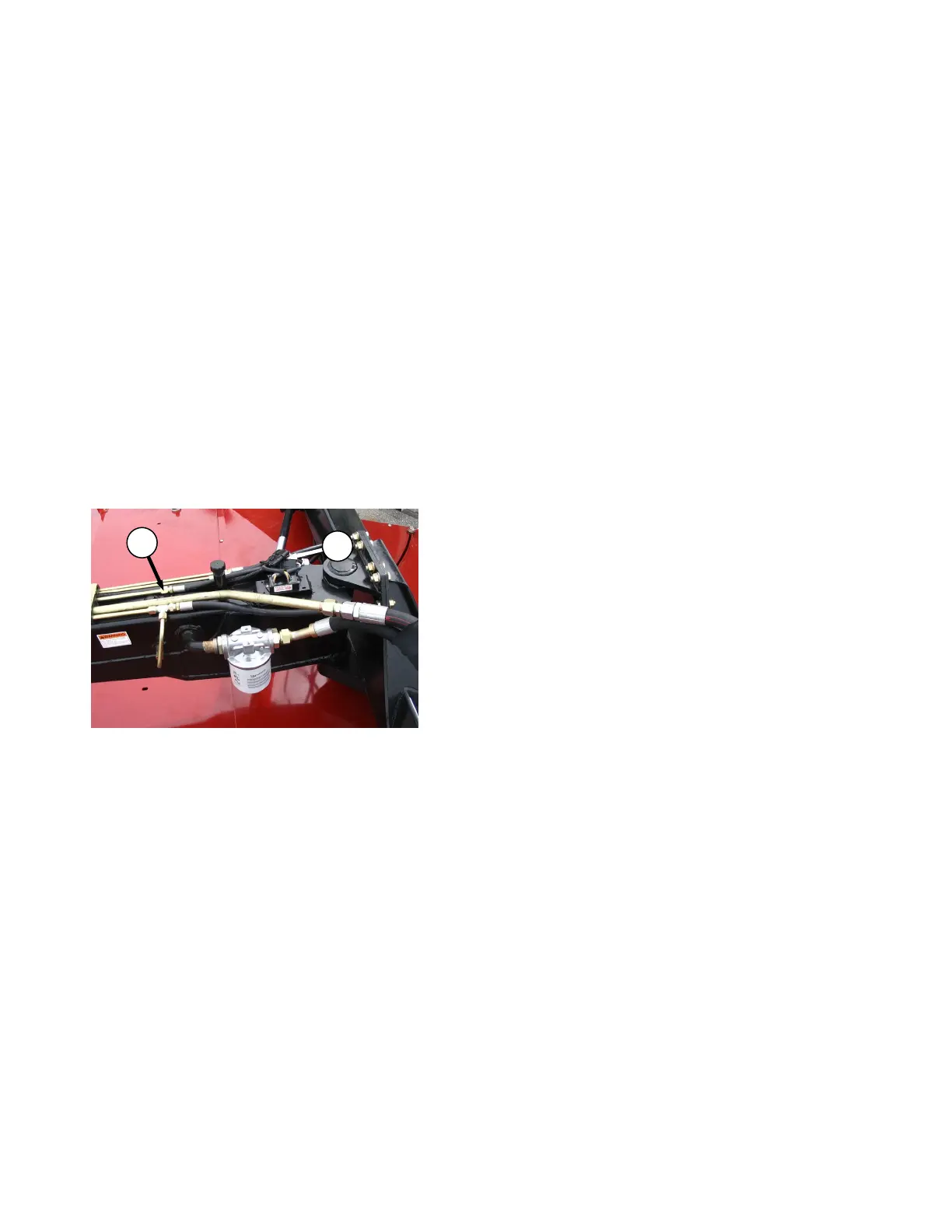

a. Connect the lift cylinder hose (A) to the fitting
on the hitch.
b. Connect electrical wiring harness (B) at rear of
hitch as shown.
To Next Page
