MacDon R80 - Step 17. Install Forming Shield

UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007
27

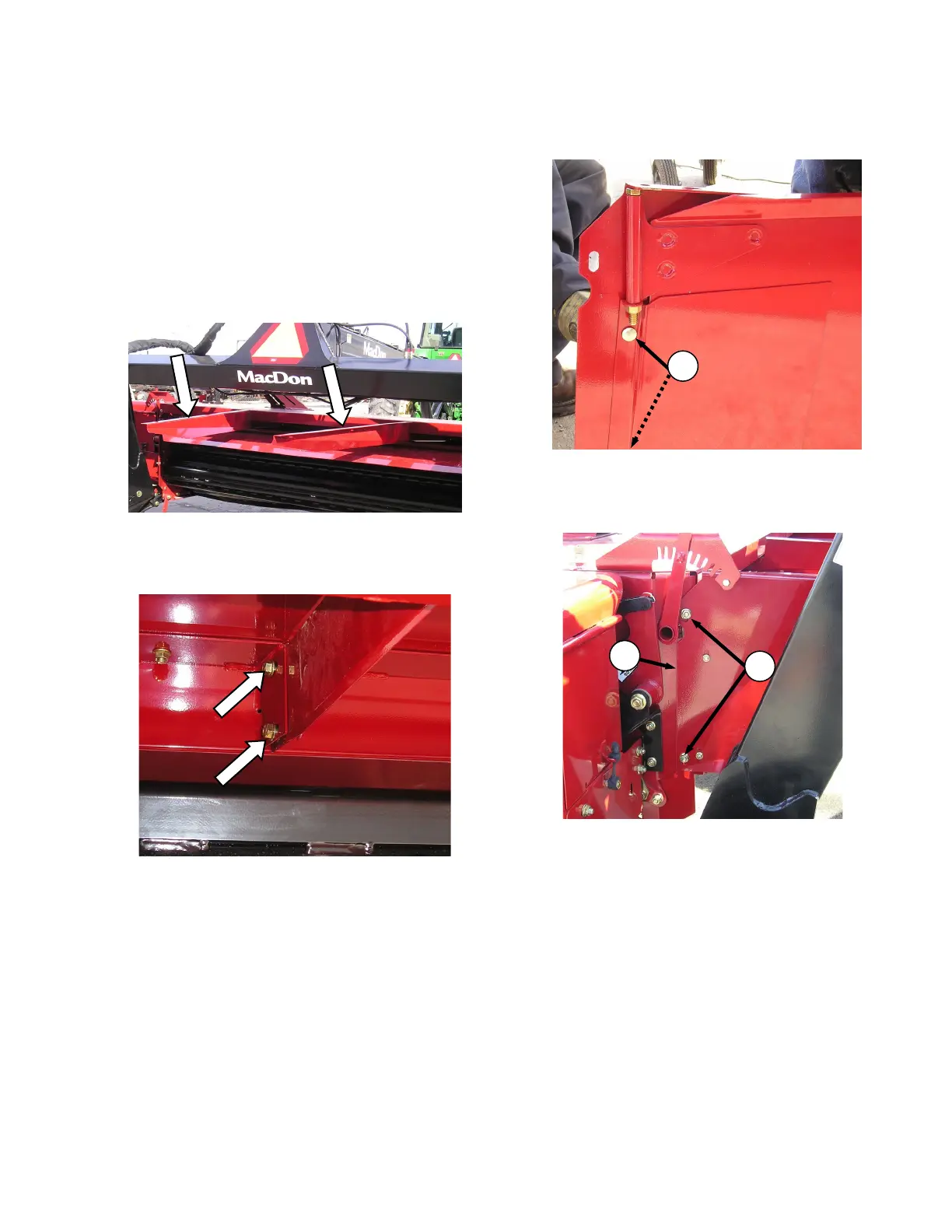

STEP 17. INSTALL FORMING
SHIELD
a. Retrieve forming shield bundles that were
removed from shipping locations in earlier
steps.
b. Remove banding and packing material.
A. INSTALL FINS
a. Remove hardware from forward ends of fins.
b. Position forming shield fins on header as
shown and secure with two bolts and nuts in
each fin. Do not fully tighten hardware.
B. INSTALL SIDE SUPPORTS
a. Disassemble the LH and RH deflector/support
assemblies by removing two bolts (A) and nuts
from each assembly. Retain hardware.
b. Position side support (B) on header and
secure with two existing bolts (C) and nuts.
Bolt heads should face inboard. Do not
tighten.
c. Repeat above step for opposite side support.
A
C
B
