MacDon R80 - Page 30

UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007
28

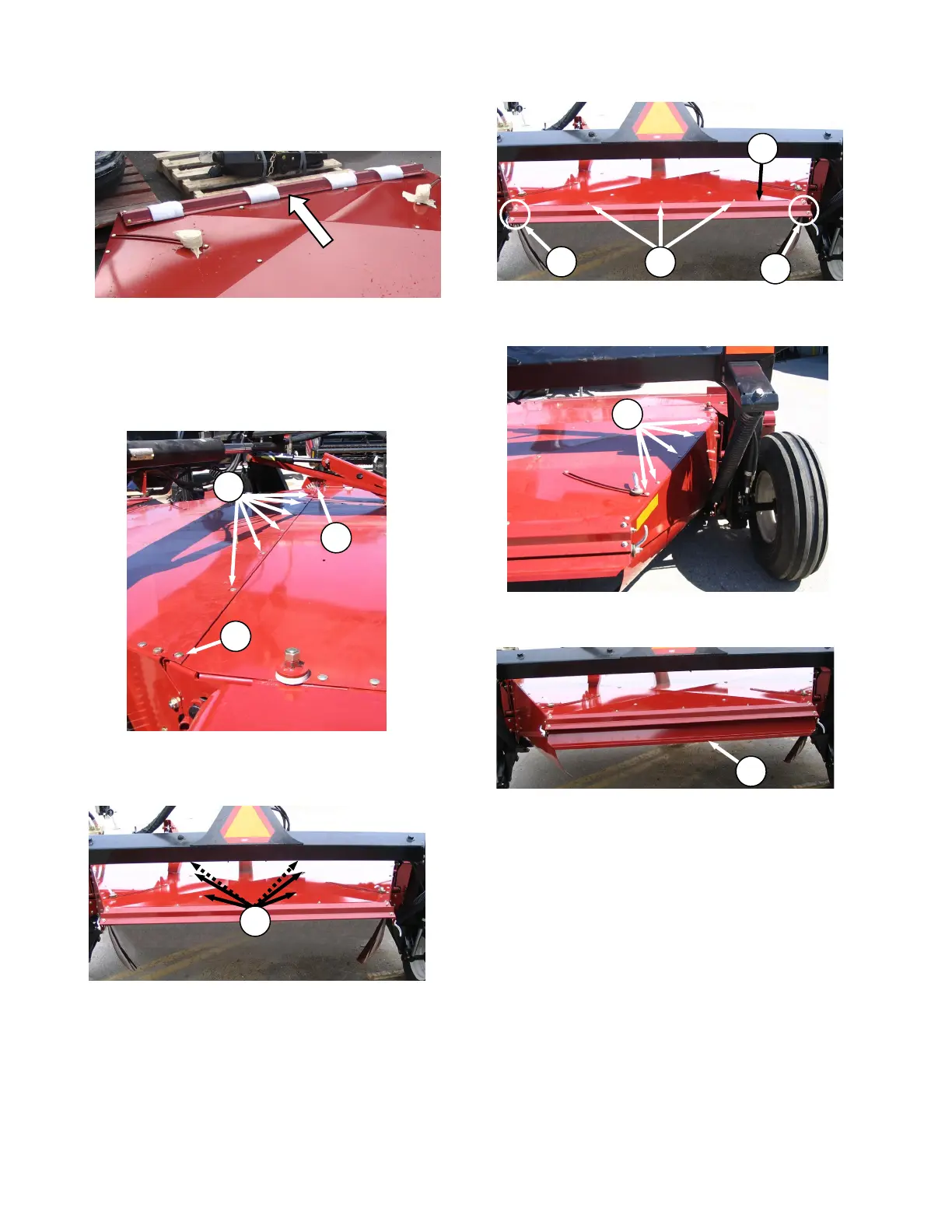

C. INSTALL TOP COVER
a. Disassemble rear member from top cover.
Retain hardware and remove packing foam
from member.
b. Remove hardware from top cover and retain
for re-installation.
c. Position top cover onto fins and side supports.
d. Install six 3/8 x 0.75 bolts (A) and nuts, and
two 3/8 x 1.25 bolts (B) and nuts along front of
cover. Do not tighten.
e. Install six 3/8 x 0.75 bolts (C) and nuts through
cover into fins. Do not tighten.
f. Position rear member (D) on aft end of top
cover and secure with nine 3/8 x 0.75 bolts (E)
and nuts but do not tighten.
g. Install five 3/8 x 0.75 bolts (F) and nuts along
each side of top cover but do not tighten.
h. Position rear baffle (G) at rear of forming shield
to determine distance between LH and RH
supports. Tighten member bolts (E) and then
remove rear baffle.
i. Tighten all bolts along front and sides of
forming shield top cover.
C
A
B
B
F
E
E
E
D
G
