UNLOADING AND ASSEMBLY
Form # 169080 Issue – April 2007

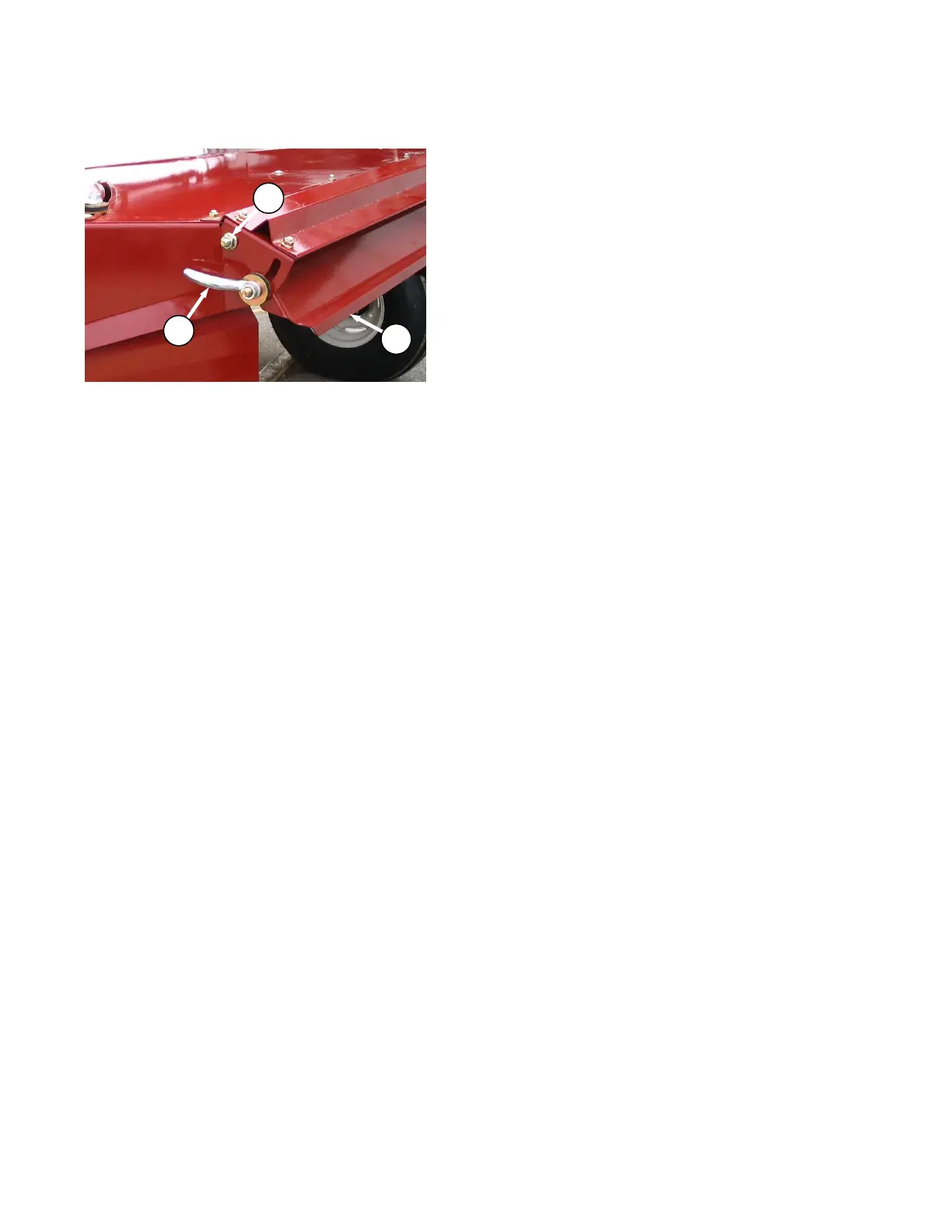

E. INSTALL REAR BAFFLE
a. Remove handle (A), washers, and bolt from aft
end of each side support and retain for
reinstallation.
b. Remove nut (B) and bolt from each end of rear
baffle (C).
c. Locate rear baffle at rear of forming shield and
install bolt (B) and nut at each end. Do not
fully tighten.
d. Install adjuster bolt, washers, and handle (A) at
each end through baffle and slot in side
support.
e. Adjust baffle to middle position and tighten
handle (A) to maintain position.
