UNLOADING AND ASSEMBLY
169561 11 Revision C

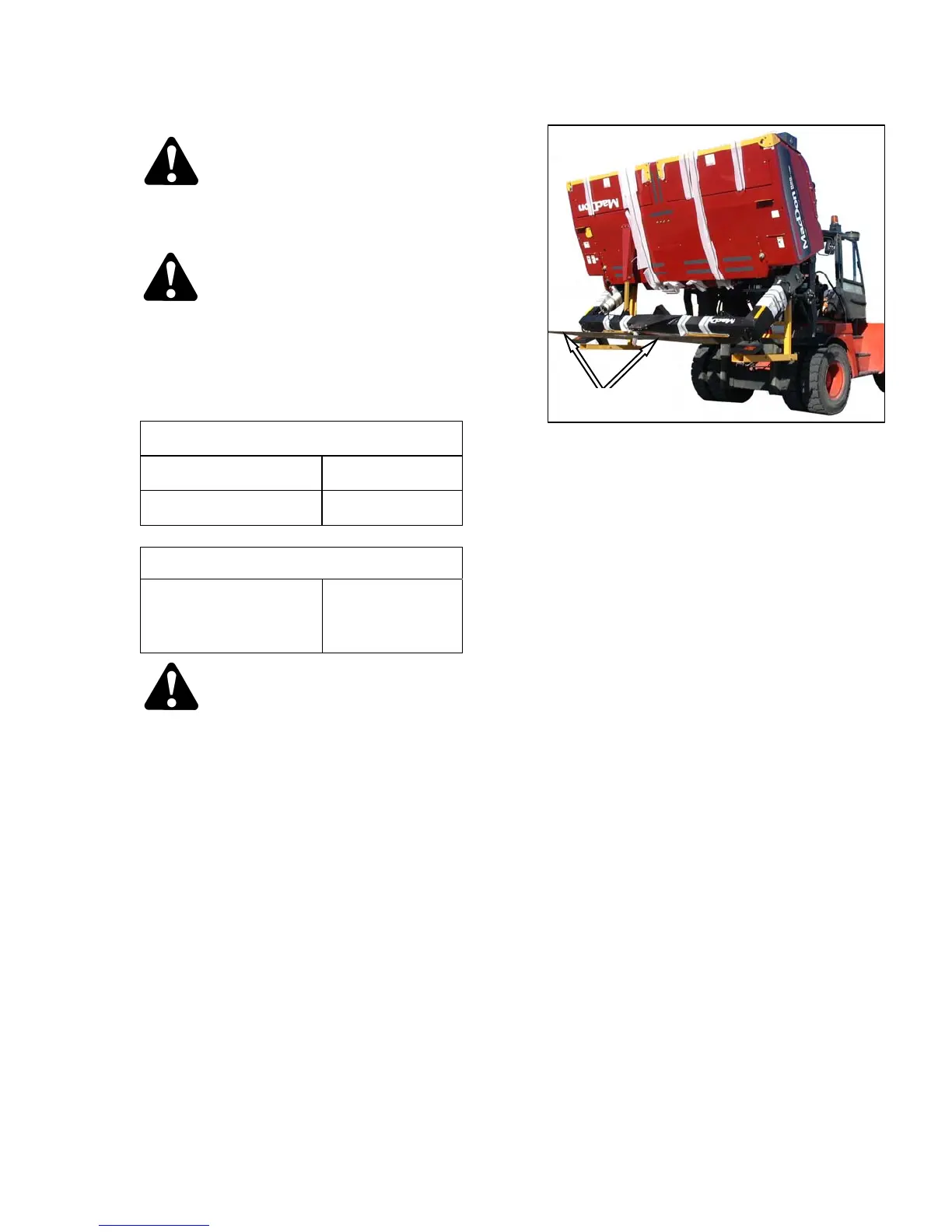

STEP 2. UNLOAD HEADER
CAUTION
To avoid injury to bystanders from being
struck by machinery, do NOT allow
persons to stand in unloading area.
CAUTION
Equipment used for unloading must meet
or exceed the requirements specified
below. Using inadequate equipment may
result in chain breakage, vehicle tipping or
machine damage.
LIFTING VEHICLE
Minimum Capacity 8,000 lb. (3,630 kg)
Minimum Height 15 ft. (4.5 m)
CHAIN
Overhead Lifting Quality
(1/2 inch)
5,000 lb. (2,270 kg)
Minimum Working
Load
WARNING
Be sure forks are secure before moving
away from load. Stand clear when lifting.
a. Remove hauler's tie down straps and chains.
b. Approach mower conditioner from either its
underside or topside, and slide forks in
underneath lifting framework as far as possible.
NOTE
When possible, approach from the
underside to minimize potential for
scratching the unit.
c. Raise mower conditioner off deck.
IMPORTANT
Take care not to contact the other machine
if load is two-wide.
d. Back up until unit clears trailer, and slowly lower
to 6 inches (150 mm) from ground.
e. Take to storage or set-up area, and set machine
down securely on level ground.
f. Repeat for other mower conditioner if required.
g. Check for shipping damage and missing parts.
FORKS
To Next Page
