UNLOADING AND ASSEMBLY
169561 20 Revision C

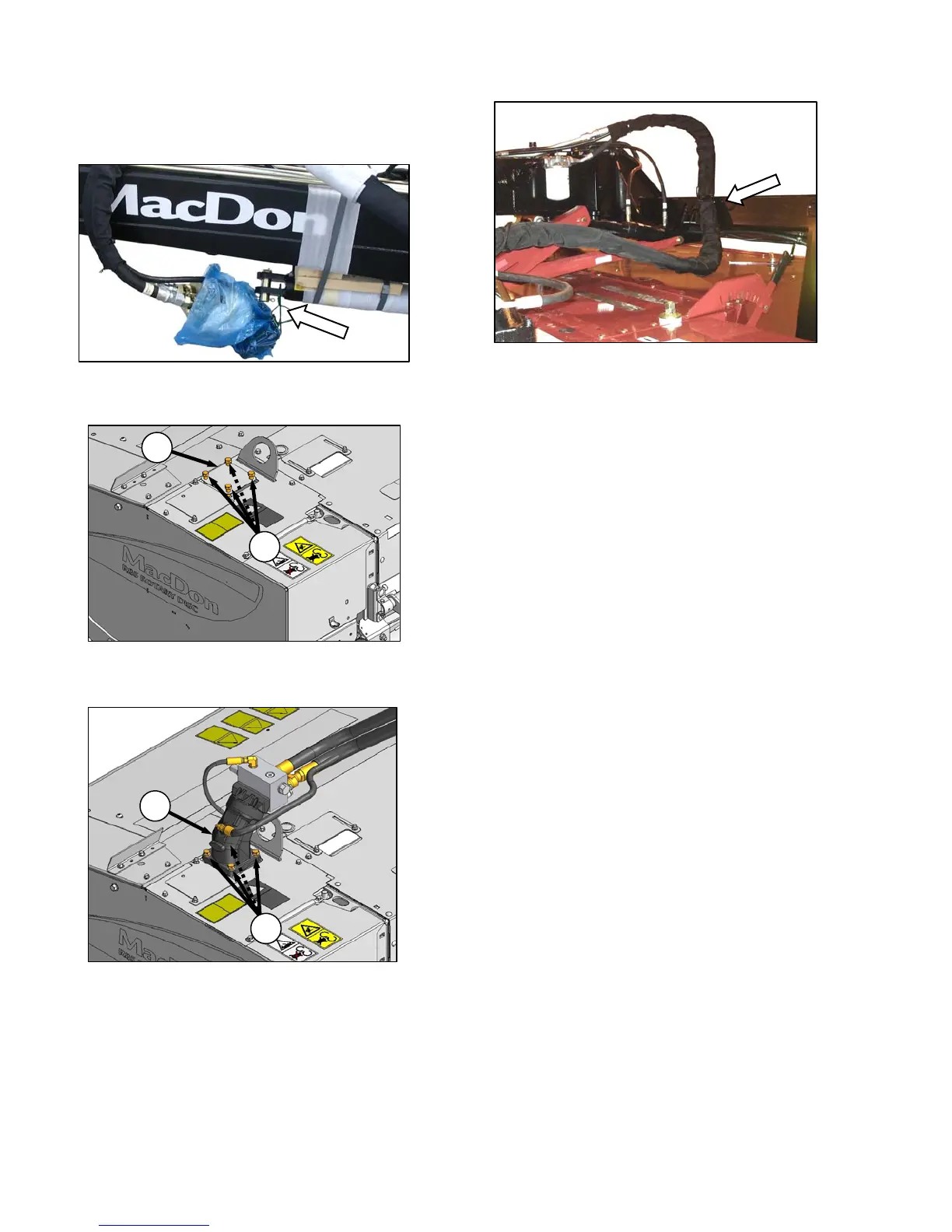

STEP 10. INSTALL HYDRAULIC
MOTOR
a. Remove shipping wire that holds motor to
steering cylinder.
b. Remove four bolts (A) securing plate (B) to
gearbox, and remove plate. Retain bolts.
c. Position motor (C) on gearbox as shown, and
re-install the four bolts (A). Torque to 103 ft·lbf
(140 N·m).
d. Route hoses through hose guides.
NOTE
If required, loosen the hose swivel fittings at
the motor ports to remove any twist in the
hose routing from the APT hitch. Do NOT
loosen the clamp type fitting.
A
B
A
C
To Next Page
