UNLOADING AND ASSEMBLY
169561 34 Revision C
f. Lift aft end of forming shield so that side
deflectors clear float springs, and tighten all
bolts.

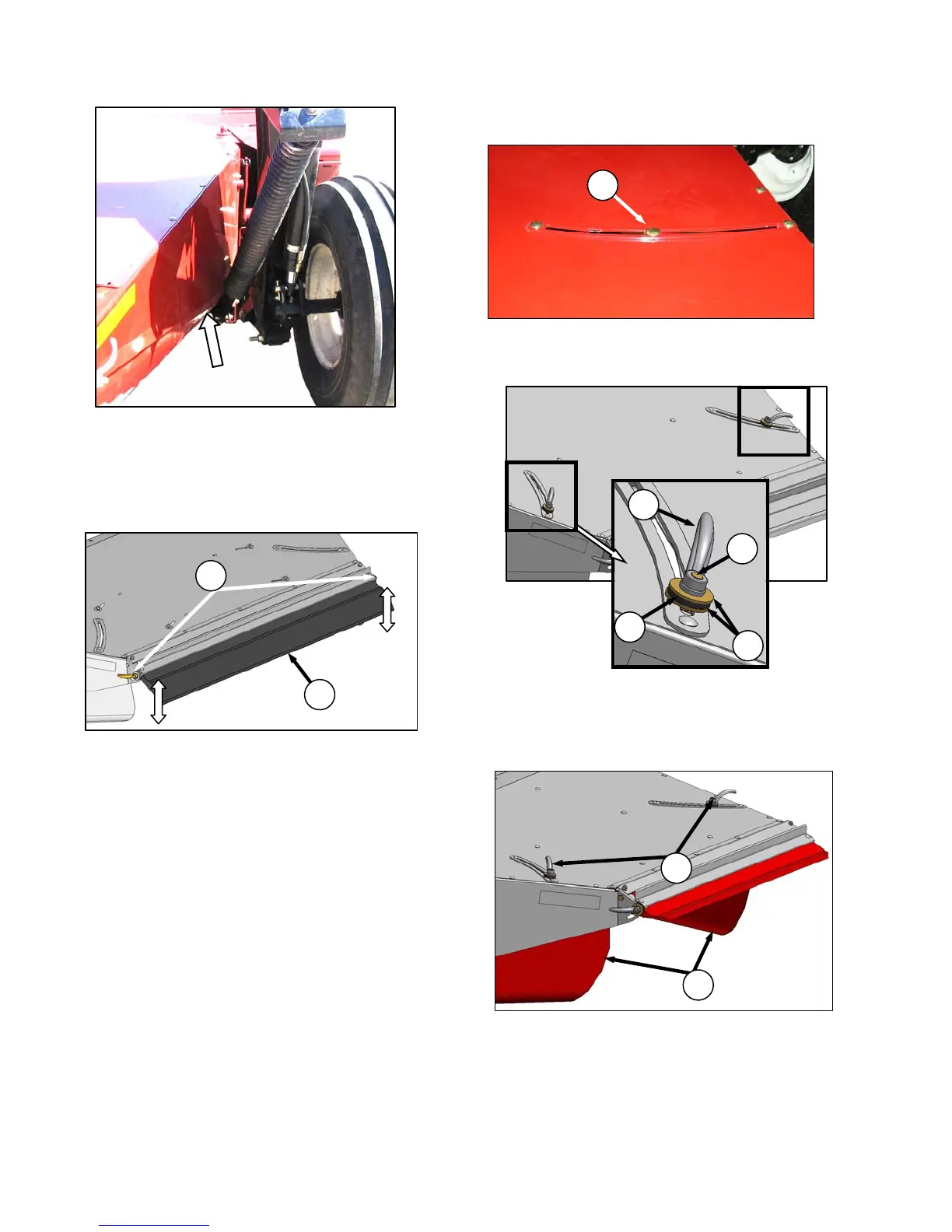

C. ADJUST REAR DEFLECTOR
a. Loosen handles (H) until rear deflector (J) can
be moved up or down.
b. Position deflector at mid-position, and tighten
handles (H).
D. ADJUST SIDE DEFLECTORS
a. Remove bolt and nut (A), and discard. Repeat at
opposite side of cover.
b. Retrieve hardware as supplied, and install
1/2 in. x 1.75 long carriage bolt (B) from
underneath, washers (C), rubber washer (D), and
handle (E) as shown at two (2) places.
c. Position side deflectors (F) at mid-point, and
tighten handles (E).
A
J
H
C
E
B
D
F
E
To Next Page
