UNLOADING AND ASSEMBLY
169561 33 Revision C

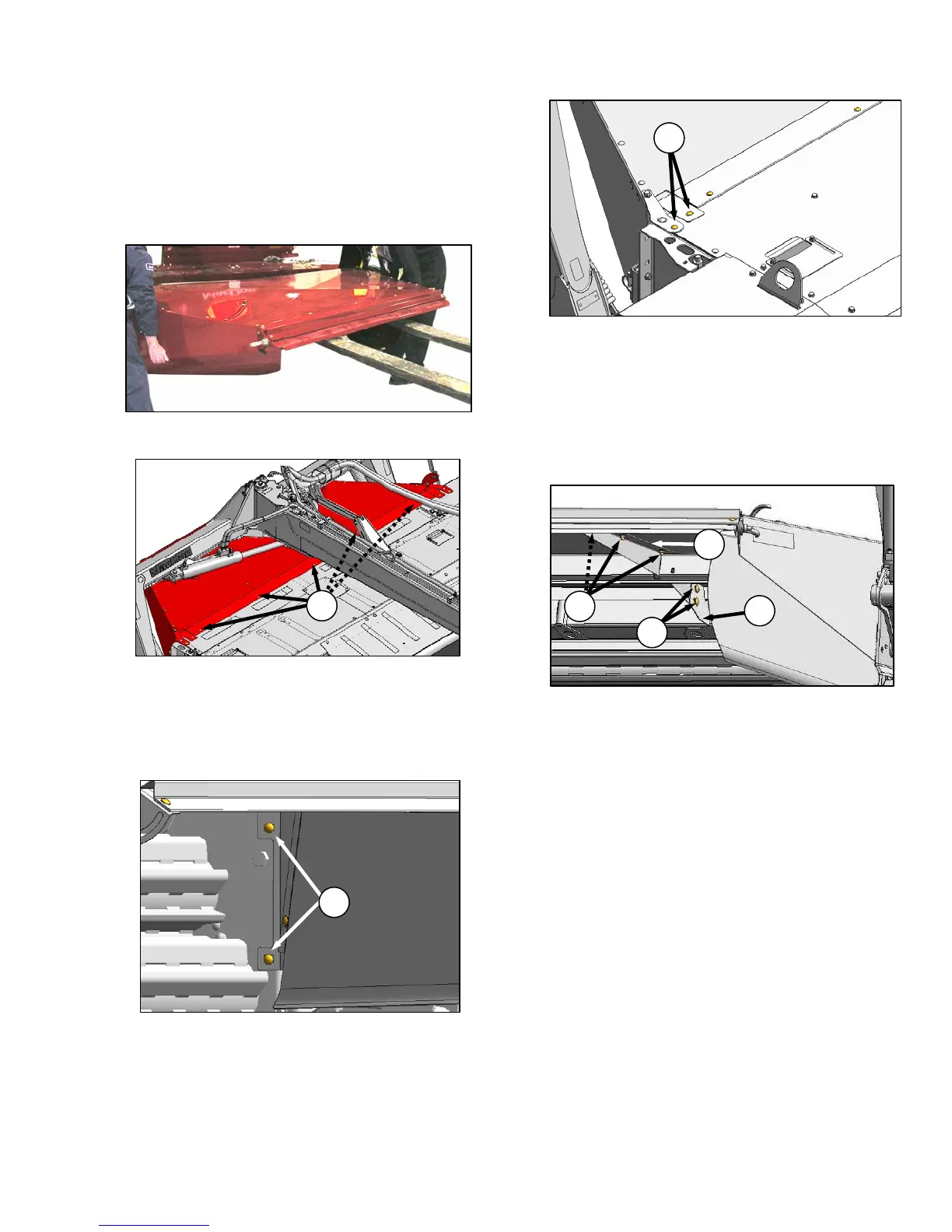

STEP 21. INSTALL FORMING
SHIELD
A. ATTACH FORMING SHIELD
a. Place forming shield on lift forks, and position
forming shield up to header.
b. Slide forming shield onto header.
c. Locate shield to align holes in forward row.
Install five 3/8 in. x 0.75 long carriage bolts and
nuts in forward row at locations (A) to hold
shield. Nuts on inside. Do NOT tighten.
d. Back forklift away from work area.
e. Install four 1/2 in. x 1.0 long carriage bolts and
nuts (B) at sides of shield. Do NOT tighten.
f. Install four 1/2 in. x 1.0 long carriage bolts (C) at
forward corners. Do NOT tighten.
B. INSTALL SUPPORTS
a. Retrieve supports and hardware bag that were
removed from shipping locations in earlier steps.
b. Position support (D) through slot in frame, and on
inboard (outboard optional) side of mounting plate
(E).
NOTE
If necessary, lower crop deflector to allow
installation of supports.
c. Install two 1/2 in. x 1.0 long carriage bolts (F) and
nuts through support and mounting plate (E). Do
NOT fully tighten bolts.
d. Attach support (D) to cover with three
3/8 in. x 0.75 long carriage bolts and nuts (G).
e. Repeat for other support.
(continued next page)
A
RIGHT SHOWN - LEFT OPPOSITE
B
RIGHT SHOWN - LEFT OPPOSITE
C
RIGHT SIDE SHOWN - LEFT SIDE OPPOSITE.
(CROP DEFLECTOR NOT SHOWN FOR CLARITY)
D
F
E
G
To Next Page
