PRE-DELIVERY CHECKS
169561 45 Revision C
E. CONDITIONER ROLLS
I. ROLL GAP
DANGER
Stop engine, and remove key from ignition
before leaving Operator's seat for any
reason. A child or even a pet could engage
an idling machine.

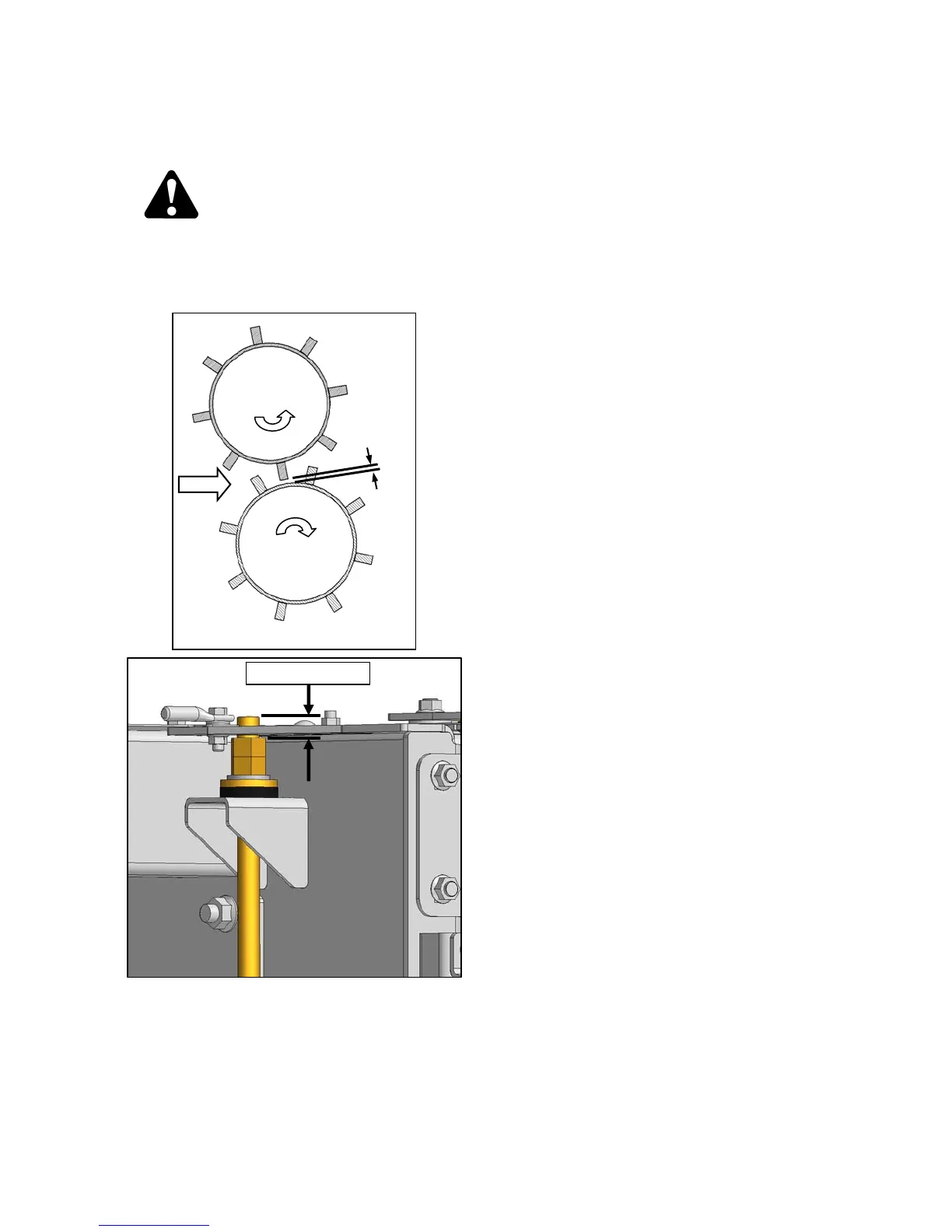

The amount of thread protruding through jam nut
indicates roll gap. Factory setting is 3/4 in. (19 mm)
which equates to 1/2 in. (13 mm) of roll gap.
CROP
ROLL GAP
3/4 in. (19 mm)
