UNLOADING AND ASSEMBLY
169561 23 Revision C

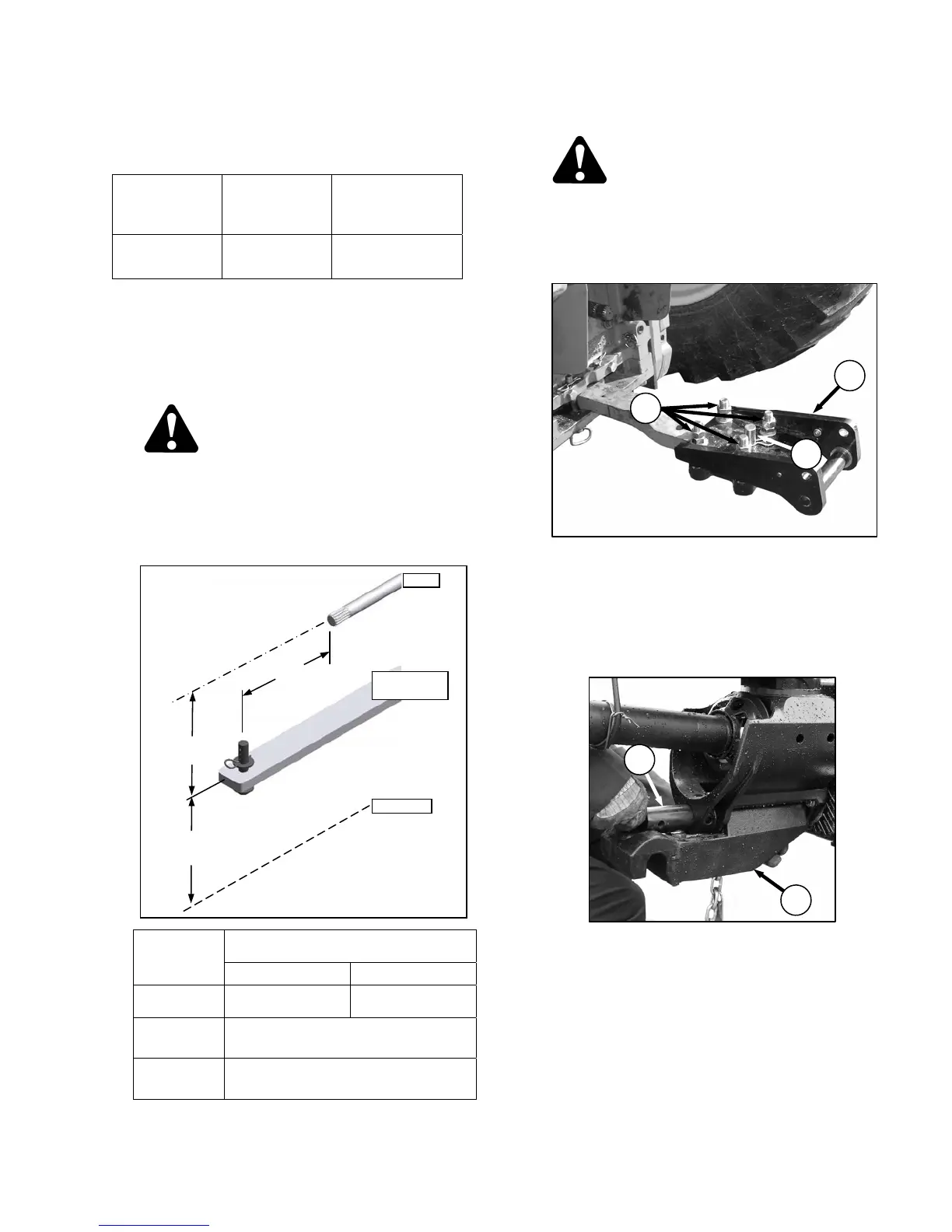

STEP 14. TRACTOR SETUP
MINIMUM
POWER
MINIMUM
DRAWBAR
CAPACITY
MINIMUM
HYDRAULICS
100 HP
(75 kW)
As per ASAE
2,000 psi
(13,789 kPa)
NOTE
Tractor must be equipped with a seven
terminal outlet to supply power. to the
mower conditioner's hazard lights.
A. DRAWBAR ADJUSTMENT
CAUTION
Shut off tractor, engage parking brake, and
remove key before working around hitch.
Adjust tractor drawbar to meet ASAE Standard
specifications as listed below.
DIMENSION
1000 RPM PTO
1.37 INCH DIA. 1.75 INCH DIA.
X
16 in. (406 mm) 20 in. (508 mm)
Y
6–12 in. (152–305 mm)
8 in. (203 mm) Recommended
Z
13–17 in. (330–432 mm)
16 in. (406 mm) Recommended
B. DRAWBAR HITCH SETUP
CAUTION
Shut off tractor, engage parking brake, and
remove key before working around hitch.
a. Secure the tractor drawbar so the hitch-pin hole is
directly below the driveline.
b. Loosen bolts (B) on extension assembly (A), and
slide onto drawbar.
c. Install pin (C) through drawbar and extension from
underside, and secure with hairpin.
d. Gradually tighten the four bolts to 265 ft·lbf
(359 N·m).
e. Attach the APT hitch swivel member (D) with pin
(E).
(continued next page)
Z
TRACTOR
DRAWBAR
PTO
GROUND
A
C
B
E
D
To Next Page
