UNLOADING AND ASSEMBLY
169561 16 Revision C

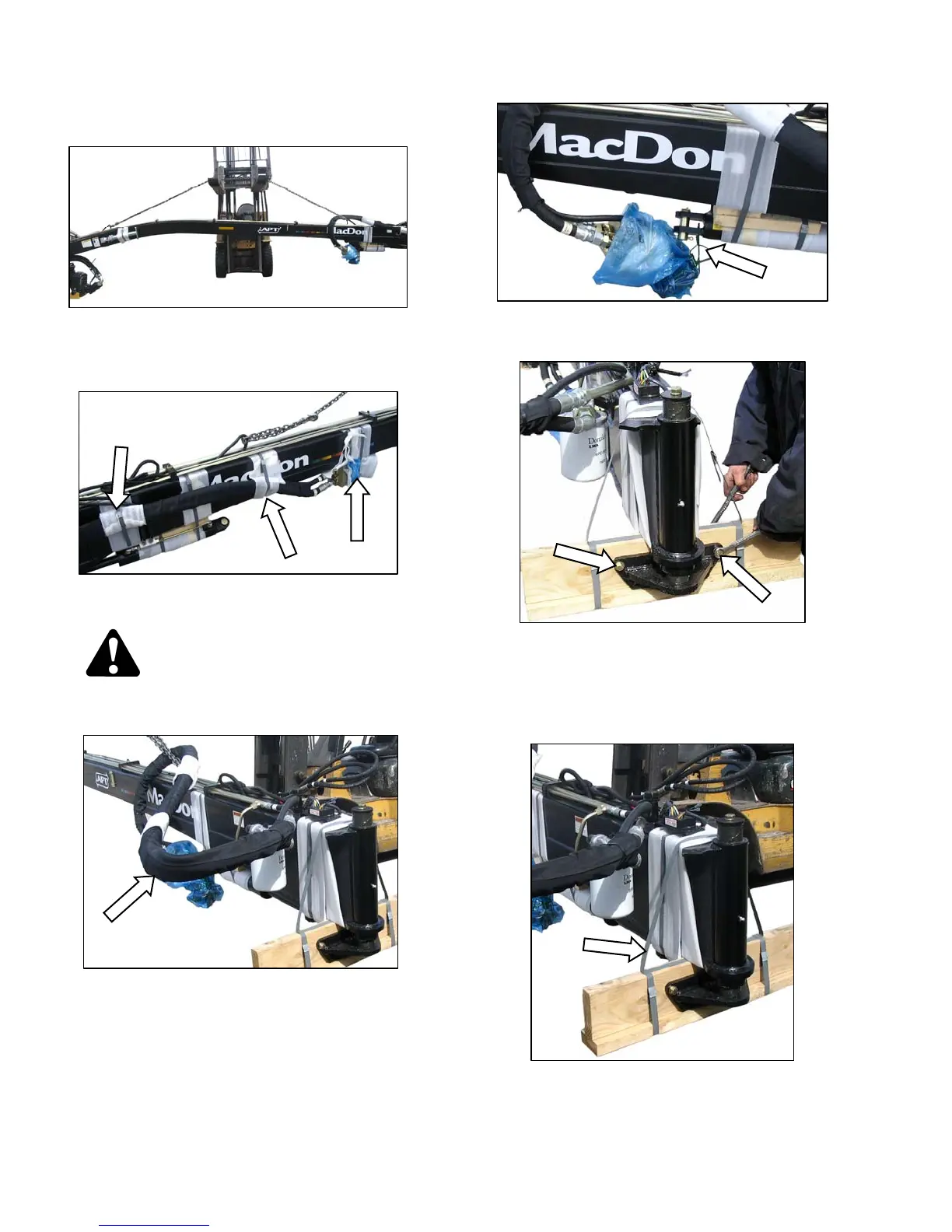

STEP 6. UNPACK APT HITCH
a. Attach chain from lifting vehicle or hoist to APT
hitch hooks, and raise it approximately
24 inches (610 mm) off ground.
b. Cut banding securing hydraulic motor and
hoses to underside of hitch.
CAUTION
Hold motor to keep it from dropping to the
ground when cutting band around motor.
c. Route motor and hoses to the left side of the
hitch.
d. Secure the motor to the steering cylinder with
shipping wire.
e. Remove the two bolts securing wooden stand to
hitch pin.
NOTE
Bolt and washer at top of pin keeps pin in
hitch when bolts are removed.
f. Cut banding securing wooden stand to hitch, and
remove wooden stand.
