INSTALLATION INSTRU CTIONS
9. Slide pulley (B) (MD #268129) onto gearbox shaft (A)
with notches facing outboard. The pulley is provided in
the kit.
10. Slide split taper bushing (C) (MD #115074) onto
gearbox shaft (A). The bushing is provided in the kit.

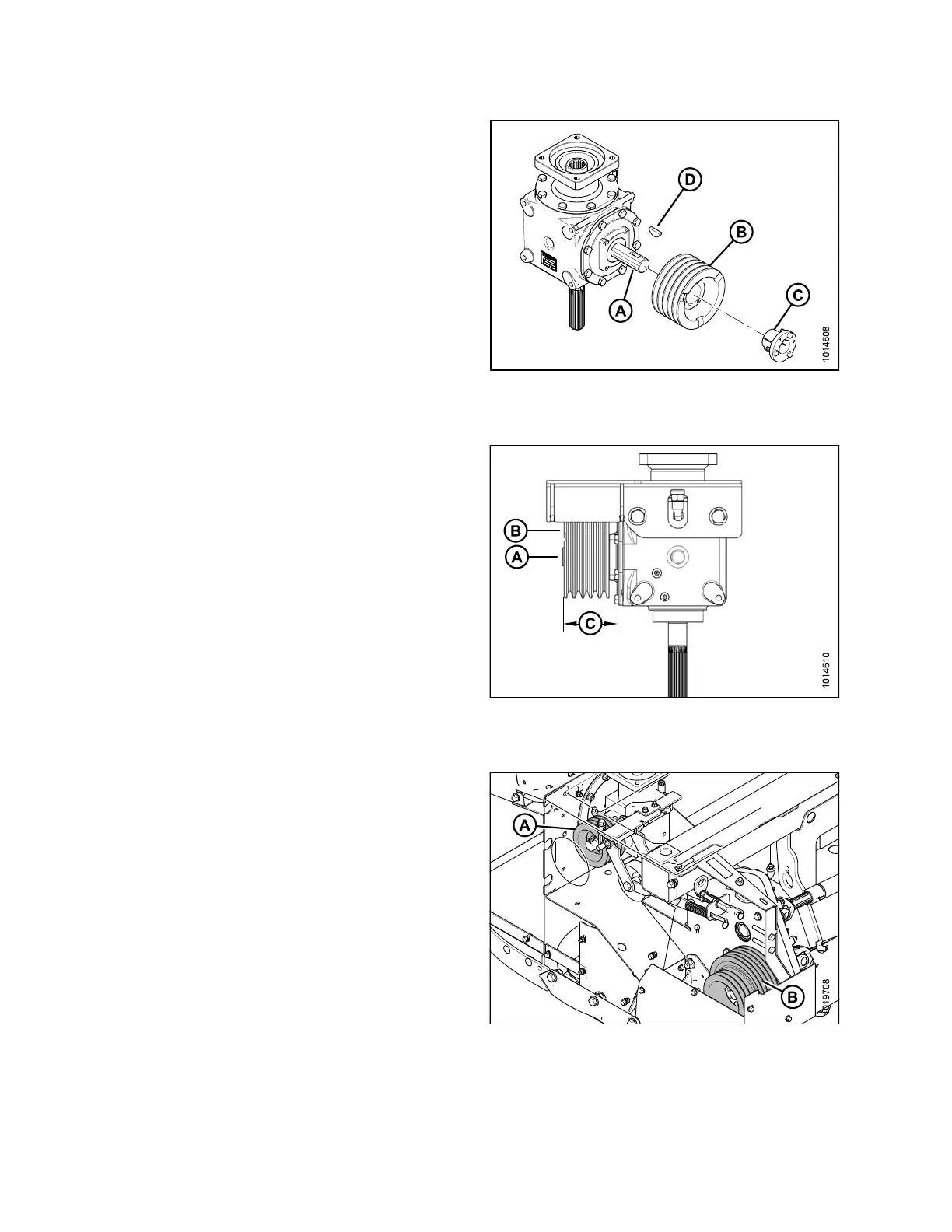

Figure 3.22: Gearbox Components
A - Gearbox Shaft
B-Pulley
C - Split Ta
per Bushing
D-Woodruf
fKey
11. Measure the distance (C) from the outer face of the
pulley (B) to the edge of the gearbox. It should be 102.6
mm (4-1/16 in.).
Figure 3.23: Pulley Positioning
A - Gearbox Shaft
B-Pulley
C - 102.6 mm (4-1
/16 in.)
12. Using a straight edge, ensure cutterbar drive gearbox
pulley (A) is alig ned within 2 mm (1/16 in.) of the
conditioner pulley (B). If there is any misalignment,
adjust the po s ition of the p ulley (B ).
Figure 3.24: Pulleys
