INSTALLATION INSTRUCTIONS
13. Windrower headers only: Attach speed sensor
bracket (A) (MD #268122) to idler bracket (B) with
two 1 in. carriage bolts (MD #19965) and two flange
nuts (C) (MD #30228). Speed sensor bracket, bolts,
and nuts are provided in kit.
14. Windrower headers only: Reinstall speed
sender (D). Adjust sensor so that the gap between the
sensor and the pulley is 2–3 mm (1/16–1/8 in.).

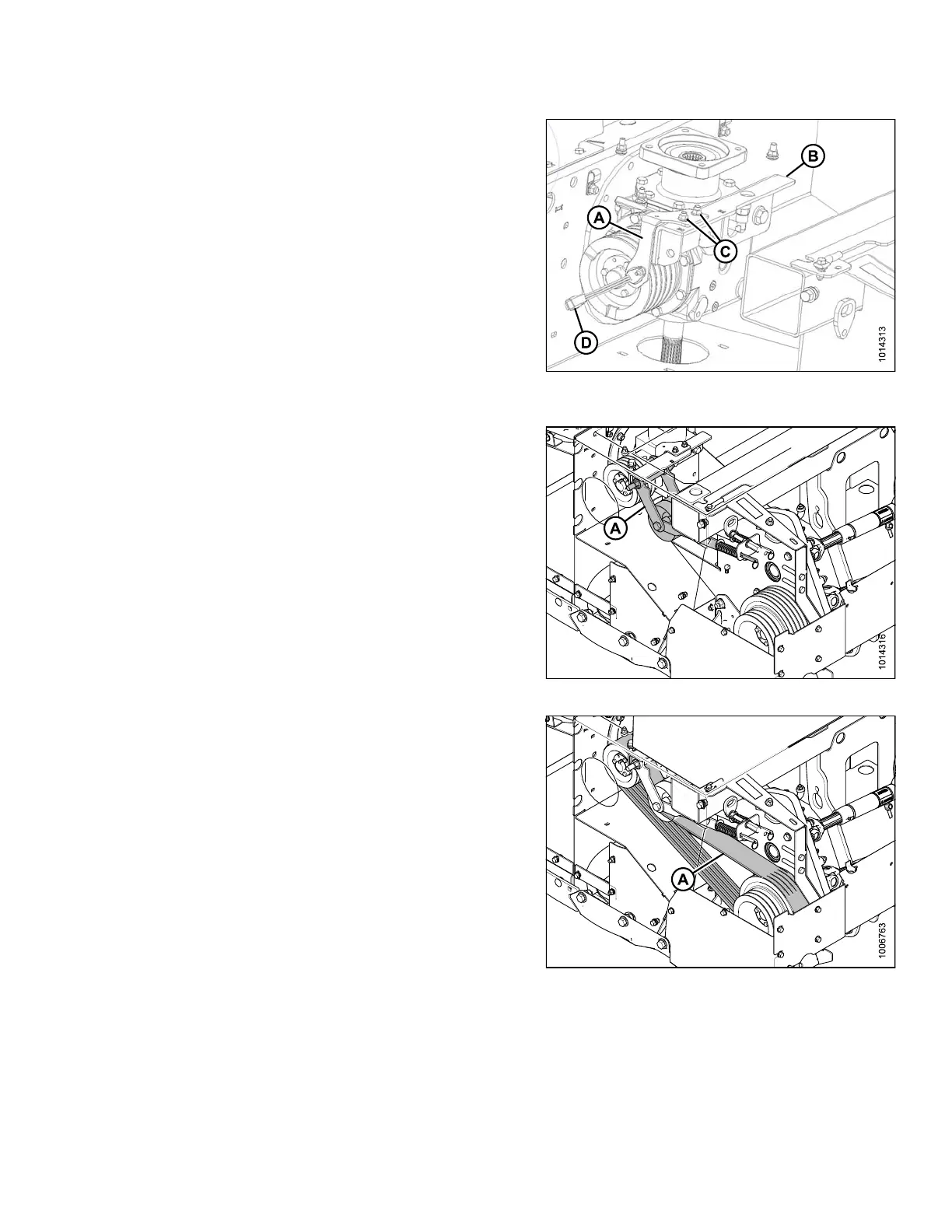

Figure 3.25: Speed Sensor Bracket and Speed
Sender Installed on Windrower Header
15. Reattach t
he tensioner/speed sensor components (A)
tied back i
nStep3, page 13.
Figure 3.26: Tensioner/Speed Sensor Assembly
16. Reins
tall the belts (A) onto the gearbox pulley.
17. Windr
ower headers only: Using feeler gauges, set a
clear
ance of 2 mm (0.08 in.) between the sensor and
the pu
lley.
Figure 3.27: Belts
