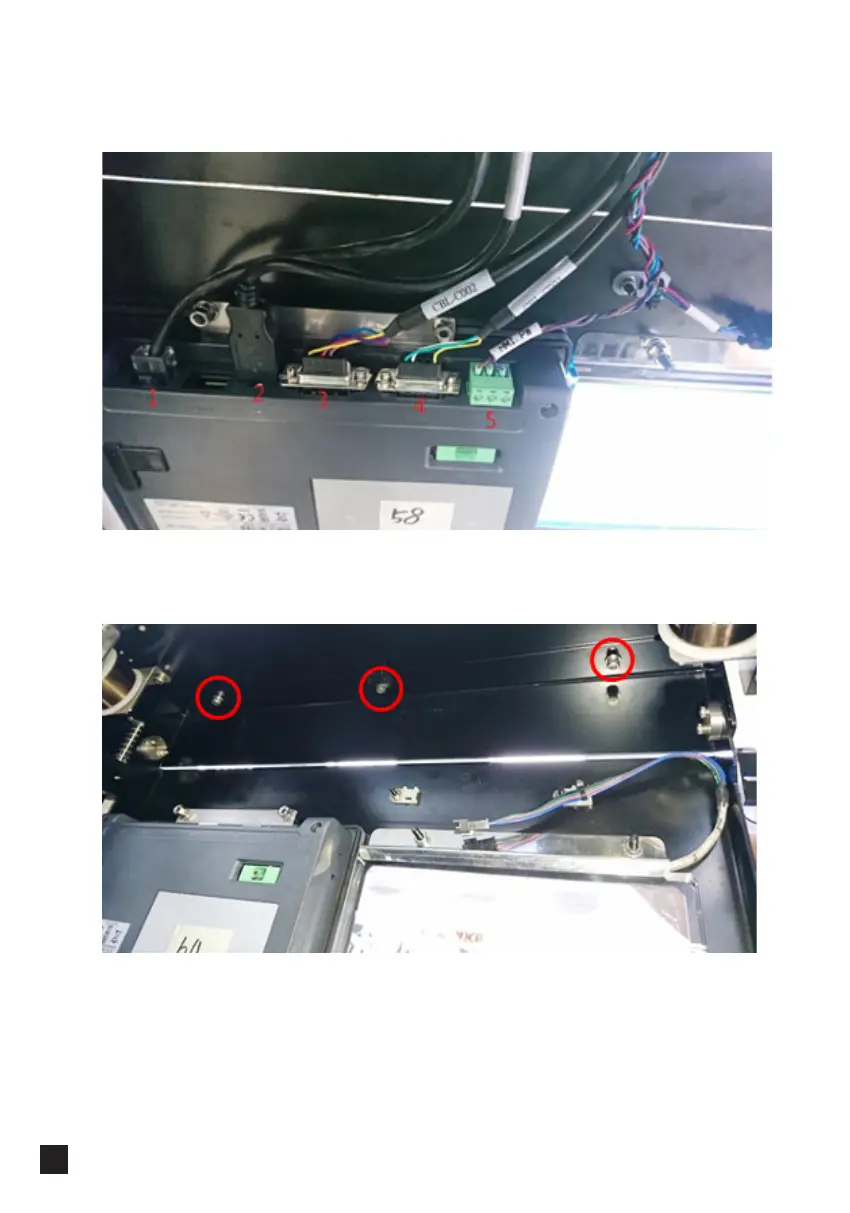

3. Cut off the cable tie on LED cable, loosen the screws on sockets 3 and 4, unplug all
the cables on HMI.
4. Unscrew the three screws on the top of the frame (marked with red circles), hold the
frame during unscrewing the last screw, then detach the frame.
