MagCore® Plus II

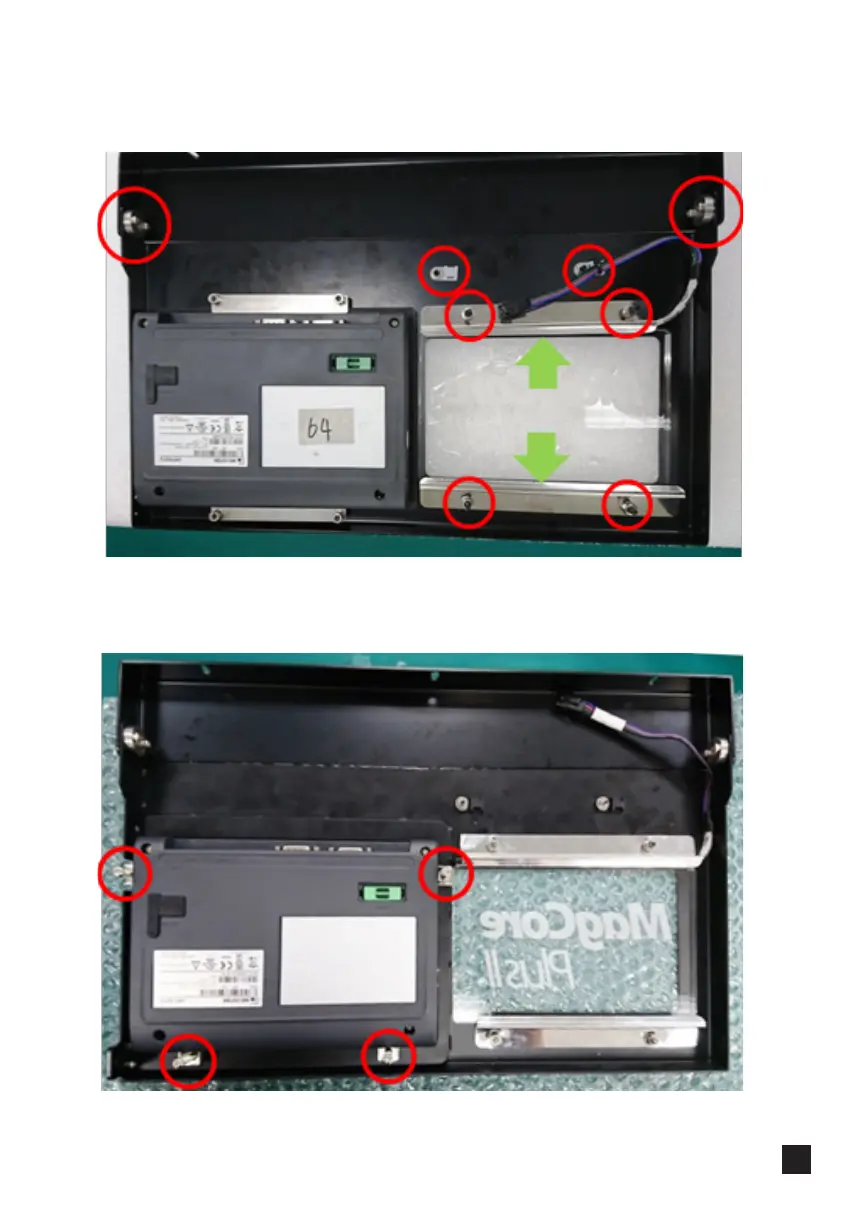

5. Detach HMI, acrylic board, LED strip, and all the components marked with red
circles, the two metal sheets marked with green arrows.
6. Install the fixing plates on the four positions marked with red circles, install HMI,
acrylic board, LED strip and all the components on the new frame.
