Magellan MG5000 Programming Guide

22 Programming Guide

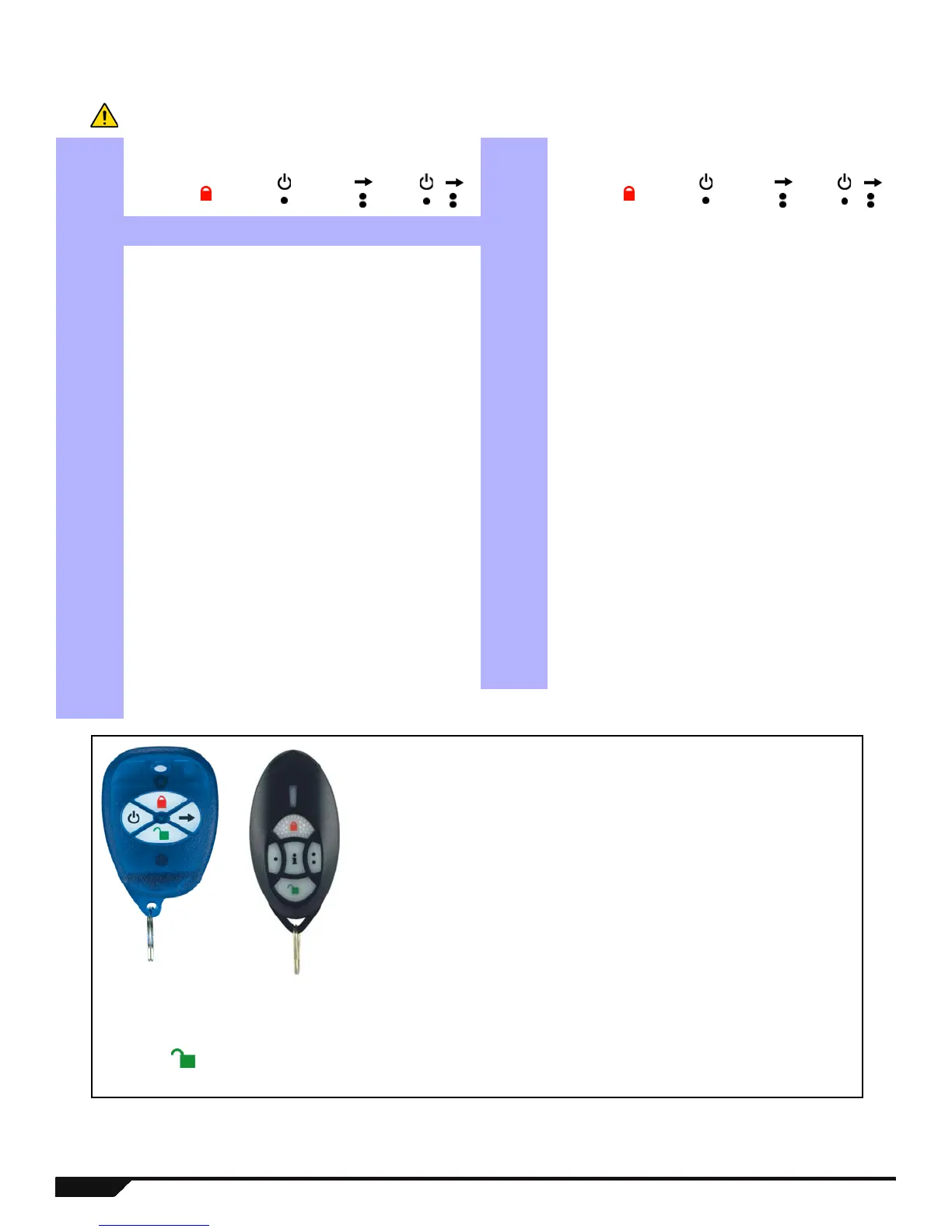

Remote Button Assignment
Programming the MG-REM1/MG-REM2
Warning: When section [610] is accessed, the MG5000 will copy the saved value of that section to all remotes.
Section RC# Data (Default: 1BC0) Section RC# Data (Default: 1BC0)
[610]
Default
______ ______ ______ ______
[627] 17
______ ______ ______ ______
[611] 1
______ ______ ______ ______
[628] 18
______ ______ ______ ______
[612] 2
______ ______ ______ ______
[629] 19
______ ______ ______ ______
[613] 3
______ ______ ______ ______
[630] 20
______ ______ ______ ______
[614] 4
______ ______ ______ ______
[631] 21
______ ______ ______ ______
[615] 5
______ ______ ______ ______
[632] 22
______ ______ ______ ______
[616] 6
______ ______ ______ ______
[633] 23
______ ______ ______ ______
[617] 7
______ ______ ______ ______
[634] 24
______ ______ ______ ______
[618] 8
______ ______ ______ ______
[635] 25
______ ______ ______ ______
[619] 9
______ ______ ______ ______
[636] 26
______ ______ ______ ______
[620] 10
______ ______ ______ ______
[637] 27
______ ______ ______ ______
[621] 11
______ ______ ______ ______
[638] 28
______ ______ ______ ______
[622] 12
______ ______ ______ ______
[639] 29
______ ______ ______ ______
[623] 13
______ ______ ______ ______
[640] 30
______ ______ ______ ______
[624] 14
______ ______ ______ ______
[641] 31
______ ______ ______ ______
[625] 15
______ ______ ______ ______
[642] 32
______ ______ ______ ______
[626] 16
______ ______ ______ ______
+
+
+
+
Button Options Table
Empty* - Button disabled
1 - Regular/Regular Force arming
2 - Stay/Stay Force arming
3 - Instant/Instant Force arming
4 - Sleep/Sleep Force arming
5 - N/A
6 - N/A
7 - N/A
8 - Panic 1
9 - Panic 2
A - Panic 3
B - PGM Activation (Event Group #8, see PGM Programming)
C - PGM Activation (Event Group #9, see PGM Programming)
D - PGM Activation (Event Group #10, see PGM Programming)
E - PGM Activation (Event Group #11, see PGM Programming)
F - Paramedic alarm
* If you do not enter a value for a button, that button is disabled.
MG-REM1
MG-REM2
= Disarm Button
