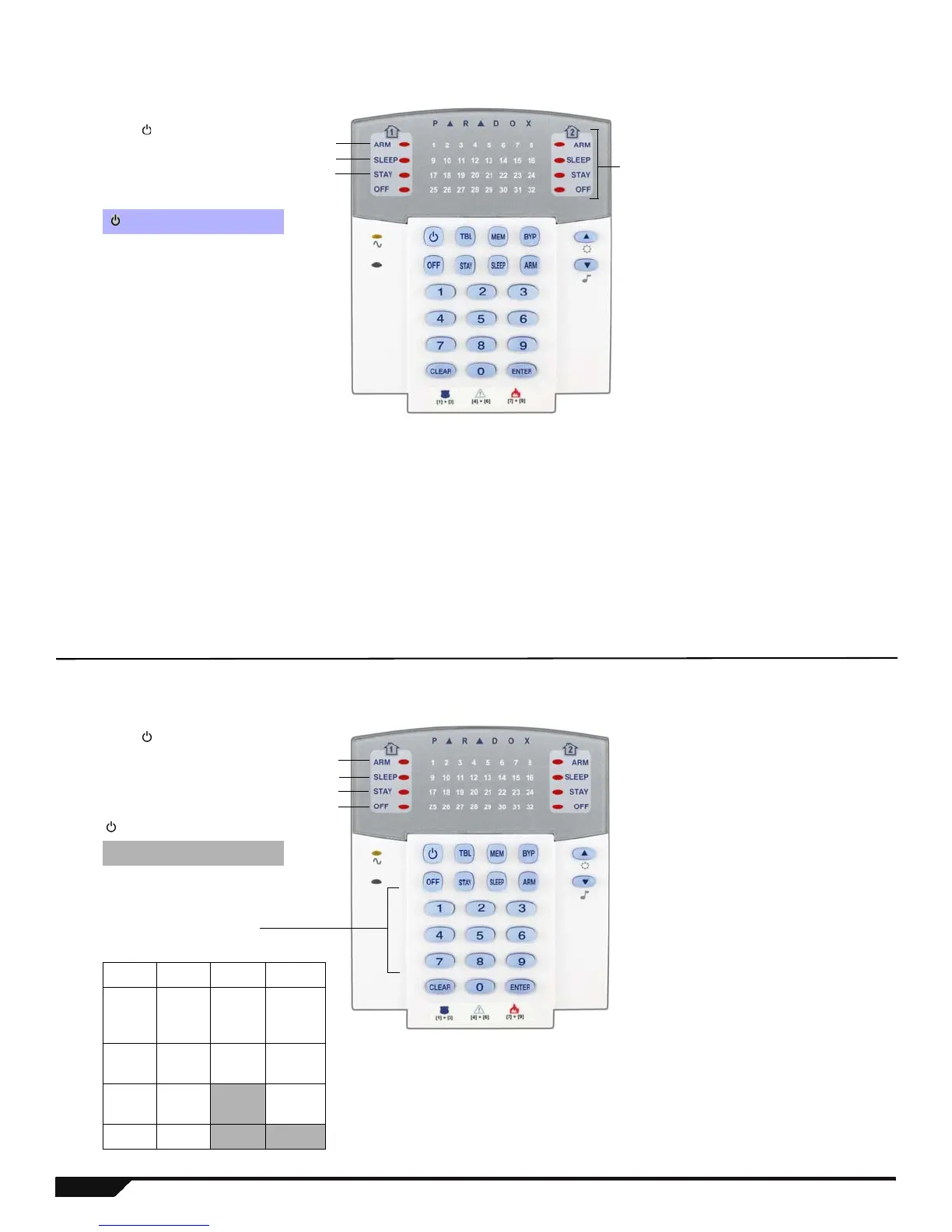

4 Programming Guide
Installer Quick Menu
Zone Programming
Delays & Passwords
Step 1:
Press []
Step 2: Enter Installer or Maintenance
Code (default: 0000/1111)
Step 3: Select a menu:
[ ] Zone Programming
[
TBL] Delays & Passwords
[
MEM] Communicator
[
BYP] PGM
Step 4: Enter the desired 2-digit zone
(01-32)*
Step 5:
Open/close cover, or press
[
ENTER
]
for a hardwire/keypad zone
Step 6: Enter 2-digit zone type (see
below)
Step 7: Press [1] and/or [2] to assign the
zone to a partition. Press [
ENTER]
Zone Types (Step 6)
00 = Zone Disabled (default) 08 = Instant 16 = 24Hr Burglary
01 = Entry Delay 1 09 = Instant/Stay 17 = 24Hr Hold-up
02 = Entry Delay 2 10 = Instant/Stay/Sleep 18 = 24Hr Gas
03 = Entry Delay 1/Stay/Sleep 11 = Instant Fire 19 = 24Hr Heat
04 = Entry Delay 2/Stay/Sleep 12 = Delayed Fire 20 = 24Hr Water
05 = Follow 13 = Instant Fire Silent 21 = 24Hr Freeze
06 = Follow/Stay 14 = Delayed Fire Silent
07 = Follow/Stay/Sleep 15 = 24Hr Buzzer
Step 1:
Press []
Step 2: Enter Installer or Maintenance
Code (default: 0000/1111)
Step 3: Select a menu:
[ ] Zone Programming
[TBL] Delays & Passwords
[
MEM] Communicator
[
BYP] PGM
Step 4: Select the desired setting by
pressing the corresponding key
[1] to [4]
[5] [7] & [8] [9]
Step 5: 3-digits
000 to
255
HH:MM* Code
Tel.# +
[
ENTER]
Step 6:
YYYY
Confirm
Code
Panel ID
Step 7:
MM
PC
Password
Step 8: DD
Step 5
Step 6
Step 7
Notes
* The keypad shows the first zone by
flashing its corresponding numerical
LED. When a numerical LED is lit, (not
flashing), the zone is already
programmed.
† If you select a zone that is already
programmed, the status LEDs will
indicate the signal strength of the
selected wireless zone module (1 LED
lit = weak signal, 4 LEDs lit = strong
signal). Also, No LEDs lit = keypad or
panel hardwire zone).
Entry Delay 1
Entry Delay 2
Exit Delay
Bell Cutoff Time & Date
Walk Test
Inst. Code
Mainte.Code
Winload Prg
Entry Delay 1
Entry Delay 2
Exit Delay
Bell Cutoff
Time & Date
Walk Test†
Inst.Code
Mainte.Code
WinLoad Prg
Notes
* If the hour is between 01 and 12,
select [1] for 24Hr format, [2] for AM, or
[3] for PM setting. If the hour is above
12, the system will automatically select
the 24Hr format.
† Press [6] in the Delays & Passwords
menu to toggle the Walk Test on and off.
Step 5
Step 6
Step 7
Step 8
Signal Strength LEDs†
