Form 07A –Frontier V6, V4 and Extreme X8 Owner’s Manual ENGLISH.docx Revision No.4
© Magic Mobility Page 25 of 65
6.7 LED Joystick Module

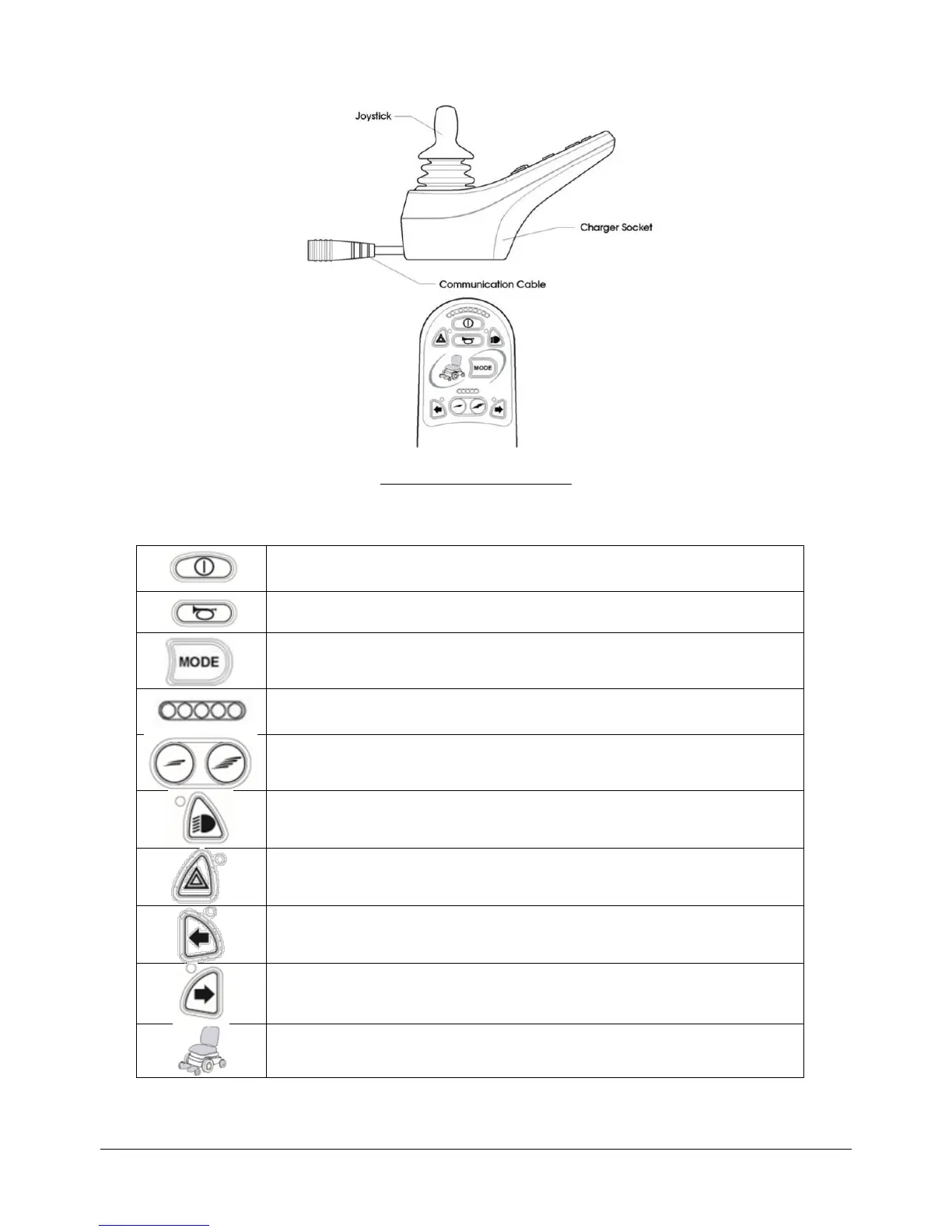

Figure 12 - LED Joystick Module
6.7.1
Control Panel
On/Off Button: This button turns the R-net on and off. Do not use this button
to stop the wheelchair, except in an emergency.
Horn Button: This button operates the wheelchair’s horn.
The Mode button allows the user to navigate through the available operating
Modes for the control system.
The maximum speed / profile indicator is a gauge which shows the maximum
speed setting for the wheelchair or the selected drive profile
Speed Decrease Button - decreases the maximum speed setting.
Speed Increase Button - increases the maximum speed setting.
This button activates and de-activates the wheelchairs Lights. When activated
the LED will illuminate.
This button activates and de-activates the wheelchairs Hazard lights. When
activated the LED will flash.
This button activates and de-activates the wheelchairs Left Indicators lights.
When activated the LED will flash.
This button activates and de-activates the wheelchairs Right Indicators lights.
When activated the LED will flash.
Actuator Indicator: This LED set displays which Actuator channel is currently
being controlled when the Control System is in Actuator Mode
