Appendix A – ISO 7176-19
The wheelchair is not provided with a wheelchair anchored belt restraint as standard. It must be
requested at the time of ordering the wheelchair or it can be retrofitted later on by a Magic Mobility
Dealer.
All Magic Mobility electric wheelchairs have been tested to and conform to the requirements of ISO
7176-19. The Frontier V6 Mid Wheel Drive and Extreme X8 also comply with the requirements of
ANRI/RESNA WC/19; further details of this are available on request.
The Magic Mobility wheelchairs were tested with either 4 point strap restraints or the Magic
Mobility 16mm (5/8”) retractable docking pin. The tie downs have a rectangular aperture
25x50mm. Any hook or loop of the restraining strap must fit through this hole
It is recommended that people who use wheelchairs should transfer to the vehicle seat and use the
vehicle-installed occupant restraint system when this is feasible.
When seat positioning options are fitted the following should be followed whenever feasible
Seat elevator: fully DOWN i.e. the seat at its lowest
Seat Tilt: Fully DOWN i.e. the seat parallel to the ground
Legrest: Fully DOWN i.e. feet close to the floor, knees bent at 90°
Backrest: Upright i.e. at or close to 90° to the seat

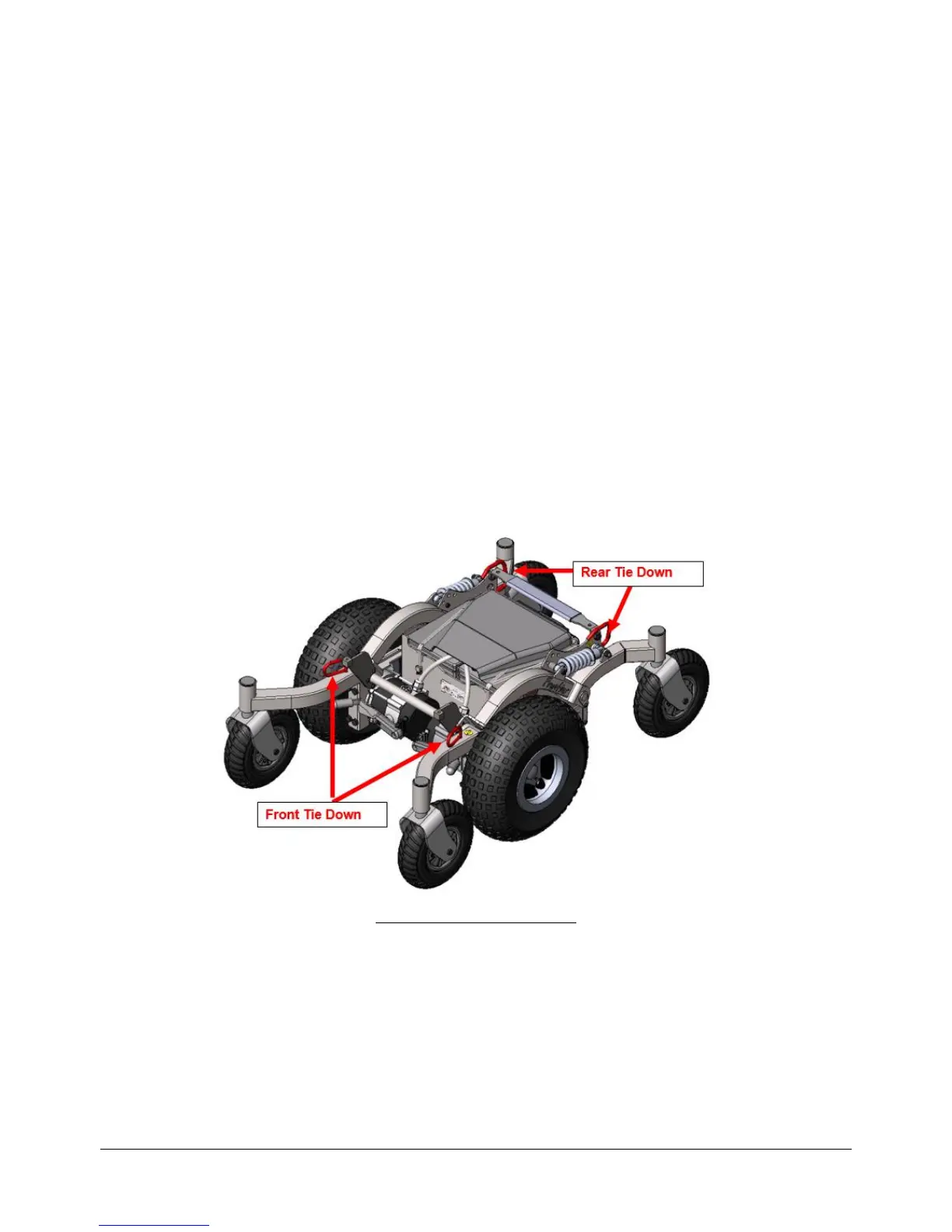

Figure 21 - V6 Tie down locations
