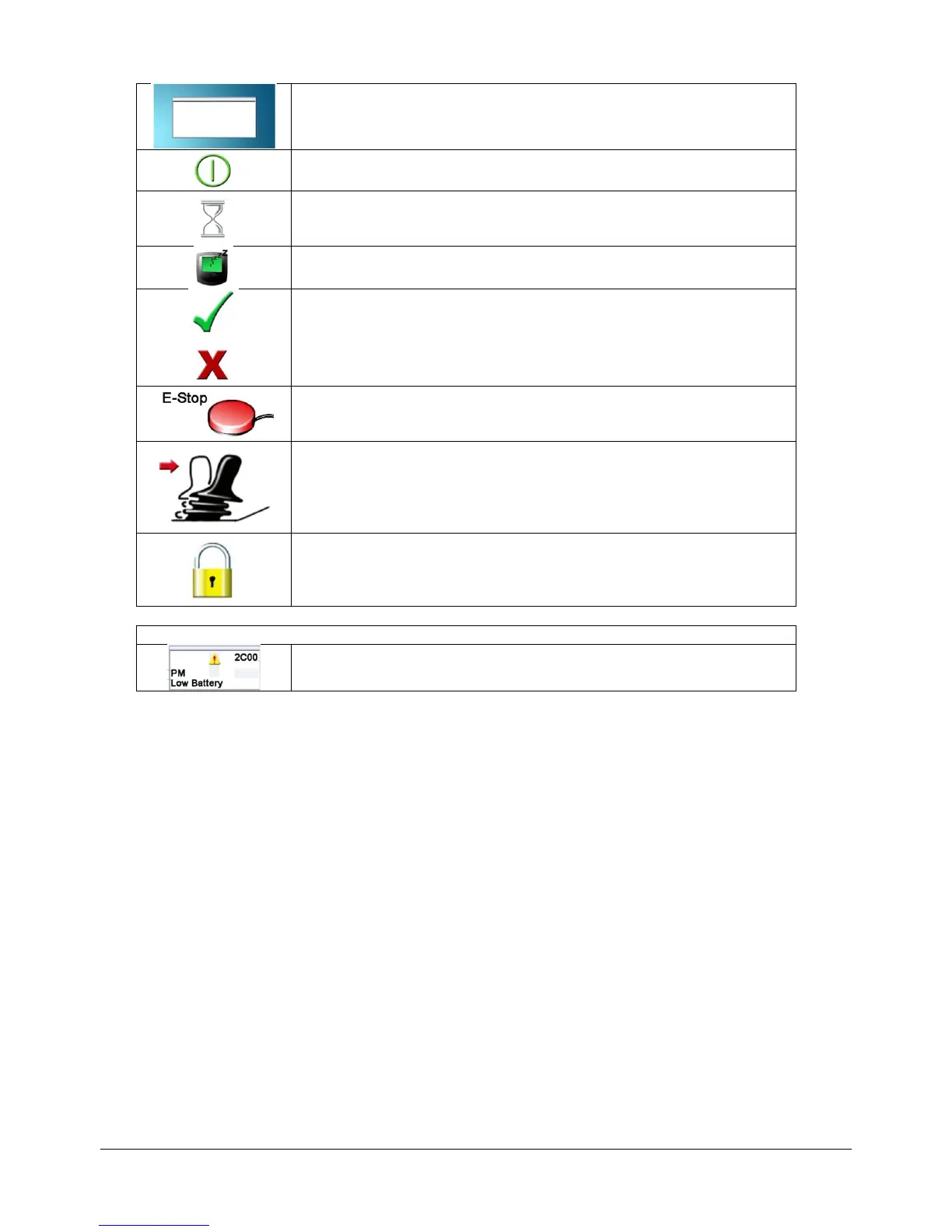

Message Window: The R-net displays warning icons and informational
messages, in a dedicated message window.
Restart: When the control system requires a reboot this symbol will flash.
Timer: This symbol is displayed when the control system is changing
between different states.
Sleep: This symbol will be displayed for a short time before the R-net
enters into a sleep state.
Cross and Tick: Displayed during configuration procedures:
Process completed correctly (Tick).
Process not completed correctly (Cross).
E-stop (emergency stop): If you have an External Profile Switch and
activate it while driving your chair or an actuator, the action will stop and
this symbol will be displayed.
Joystick Displaced: If you operate the Joystick before or just after you
switch the control system on, the screen will flash the joystick displaced
screen. If you don’t return the joystick to the central position within 5
seconds, your chair will not move. Turn the control system off and on
again to reset.
Control System Locked: The Control System can be locked either by using
a sequence of deflections with a Joystick or with a physical Key.
Refer to 6.9.5 Locking the Control System for a detailed description of the
Locking and Unlocking procedures.
Diagnostic Screen: When the control safety circuits have operated to
prevent the wheelchair from moving, a diagnostic screen is displayed
