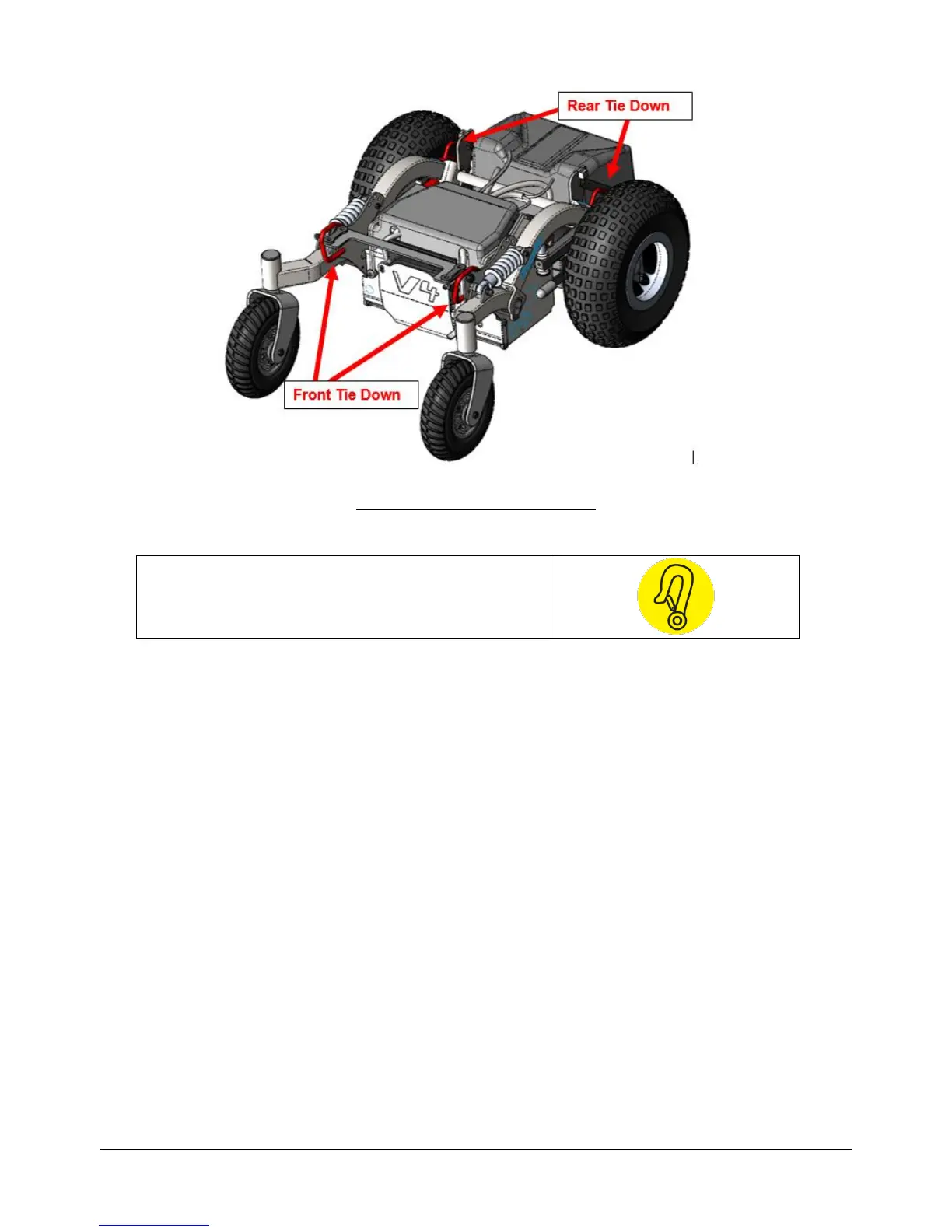

Figure 24 - V4 RWD tie down locations
The wheelchair provides for anchoring a pelvic belt restraint that conforms to the requirements of
ISO 7176-19. The seatbelt is anchored over a 14mm spigot by an M8 (minimum grade 8.8) bolt. The
pelvic belt restraint can be used in conjunction with a vehicle anchored shoulder belt with a standard
lower anchorage connector as a crashworthy three point belt restraint in motor vehicles.
Magic Mobility supply either a 600mm or 700mm compatible crashworthy wheelchair anchored
pelvic belt restraint when ISO 7176-19 tie downs are requested. This belt is designed to
accommodate use on either side of the vehicle. The belt is equipped with standard interconnect
hardware to enable attachment of suitably equipped vehicle anchored shoulder belts. The free end of
the vehicle anchored shoulder belt is installed over the shoulder belt connection pin.
