3.2.2. MOUNT WITH CLAMPS ONLY
This chapter describes the 100 kg Doughty Quick Trigger Clamps (MFX3104) as an
example. The 100 kg Doughty Half Couplers (MFX3106) follow a similar process.

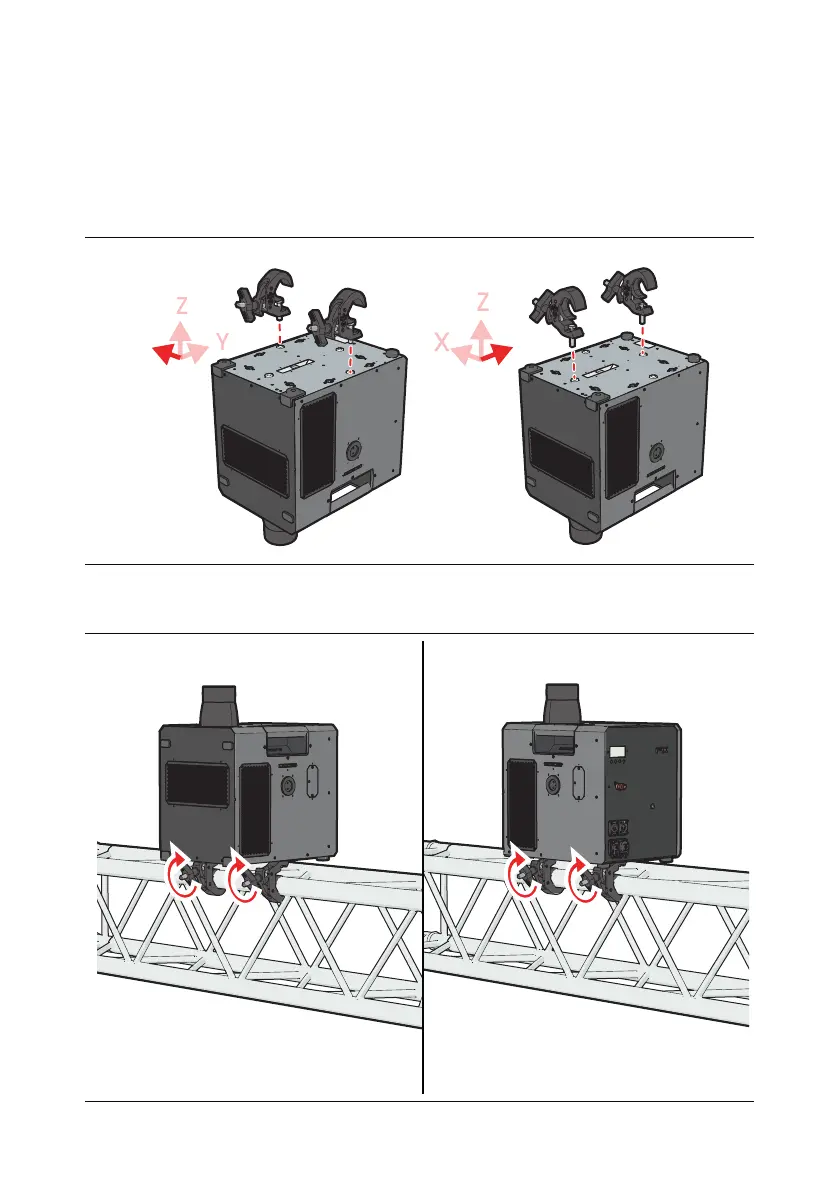

1. Attach the clamps (MFX3104 or MFX3106) to the M10 mounting holes on the
bottom side of the ECO2JET
®
with the provided bolts.
Y
Z
X
Y
Z
X
2. Mount the ECO2JET
®
in a horizontal position onto a horizontal truss. Vertical truss
mounting is not permitted.
