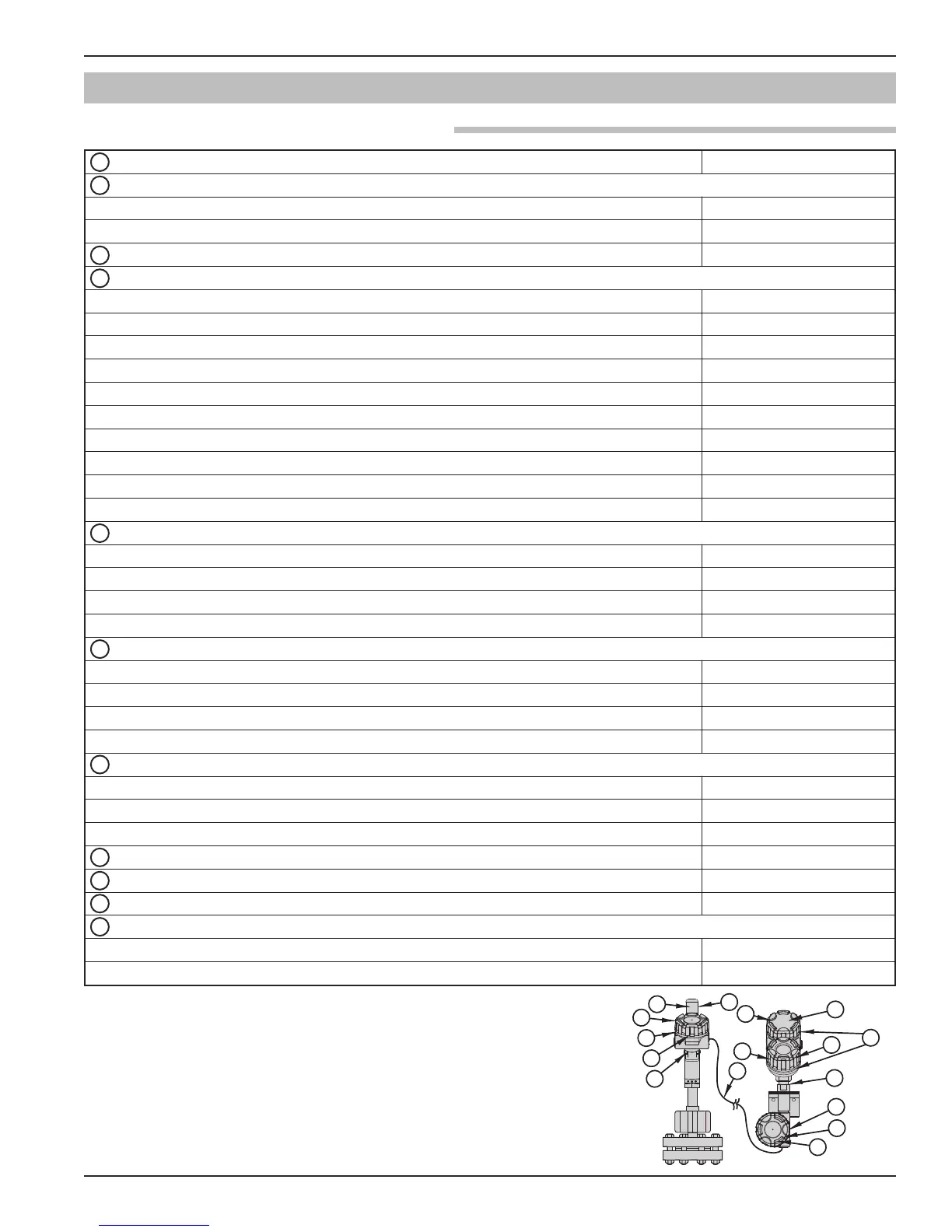

8.5 Parts
47
48-640 E3 Modulevel
®
Displacer Level Transmitter - FOUNDATION fieldbus
™
FO
UNDATION
fieldbus
Z31-2845-001*
FOUNDATION f
ieldbus XP
Z30-9151-003
FO
UNDATION
fieldbus IS
Z30-9151-004
012-2201-237
– Contains parts 4a and 4b
ATEX/IEC & FM/CSA, aluminum, IS, integral
089-6606-004
ATEX/IEC & FM/CSA, stainless steel, IS, integral
089-6606-005
FM/CSA, aluminum, XP, integral
089-6606-009
FM/CSA, stainless steel, XP, integral
089-6606-010
ATEX/IEC, aluminum, XP, integral
089-6606-013
ATEX/IEC, stainless steel, XP, integral
089-6606-014
FM/CSA, aluminum, XP, remote
089-6606-015
FM/CSA, stainless steel, XP, remote
089-6606-016
FM/CSA, aluminum, IS, remote
089-6606-017
FM/CSA, stainless steel, IS, remote
089-6606-018
Terminal Junction Box Covers (2 required)
FM/CSA, aluminum, XP, remote
Consult Factory
FM/CSA, stainless steel, XP, remote
Consult Factory
FM/CSA, aluminum, IS, remote
Consult Factory
FM/CSA, stainless steel, IS, remote
Consult Factory
– Contains parts 5, 8, 9, and 10
Low Temperature (9
th
digit 1 or 4)
089-7827-007*
Mid Temperature (9
th
digit 2 or 5)
089-7827-008*
High Temperature (9
t
h
digit 3 or 6)
089-7827-009*
Ultra High Temperature (9
th
digit 8) **
089-7827-010*
Aluminum
089-7837-001
Stainless Steel
089-7837-002
Stainless Steel (For Ultra High Temp LVDT)
089-7837-003
012-2222-123
030-3609-001
037-7917-001
(last two digits indicate cable length in feet)
Up to +400 °F (+204 °C)
037-3226-0xx
Up to +500 °F (+260 °C)
037-3227-0xx
* Field replacement of this part requires a user calibration of the repaired unit.
** Contains LVDT Core, Item 20.
Electronic Module
Wiring Board
Transmitter Housing O-rings (2)
Meter/Bezel Compartment Cover
Wiring Compartment Housing Cover
Terminal Junction Box Covers (2)
LVDT Assembly
LVDT Housing Cover
LVDT Cover O-ring
TFE Spacer
Grip Ring
Top LVDT Spacer
Remote Terminal Boards (2)
Remote Transmitter Jumper Cable
Remote Cable Assembly
