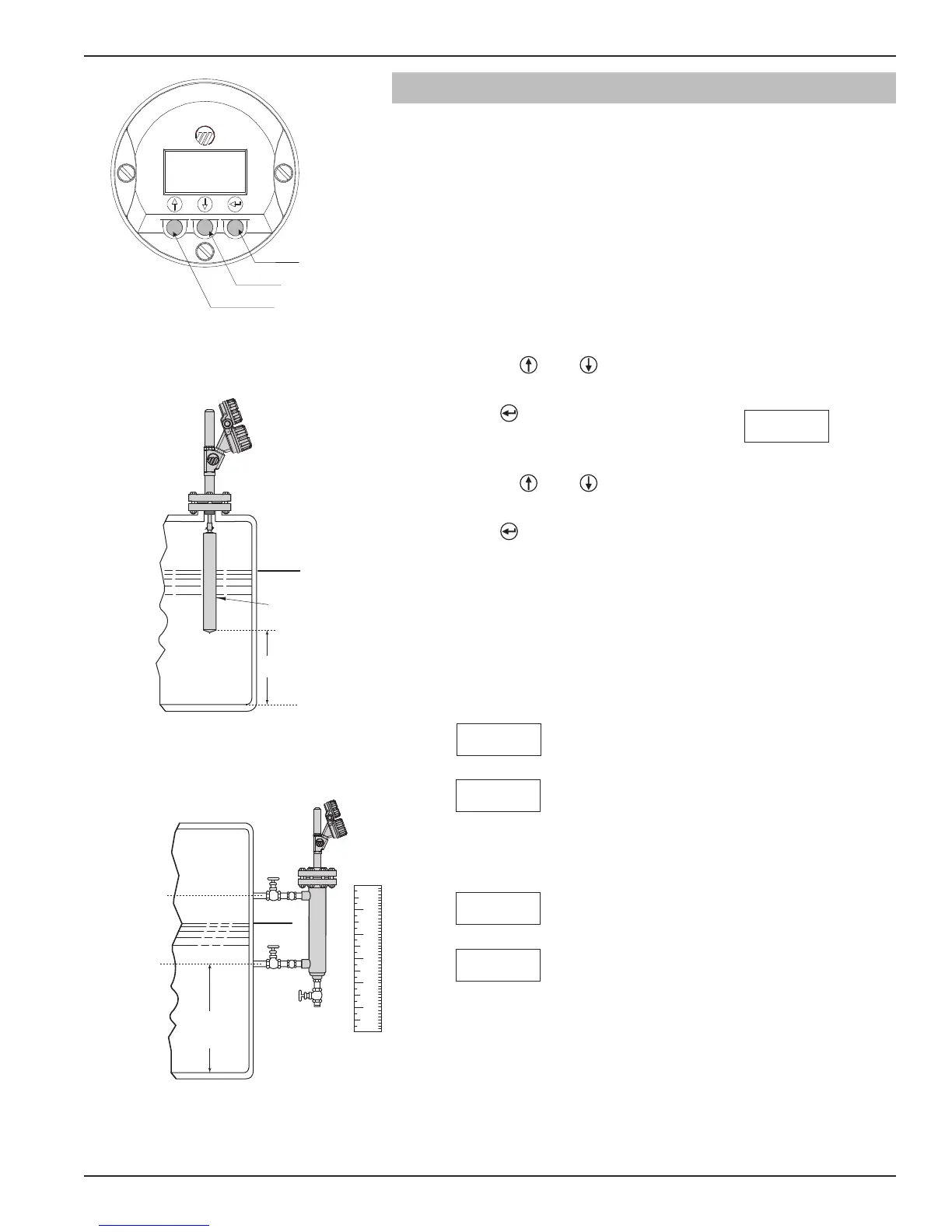

2.4 QuickStart Configuration
The E3 MODULEVEL transmitter comes configured with
default values from the factory but can be reconfigured
in the shop. The minimum configuration instructions
required in the field follow. Use the information from
the operating parameters table in Section 2.1.2 before
beginning configuration.
1. Power up the transmitter.
The display changes every 5 seconds to show one of three
values: Status, PV-Lvl (or PV-Ifc or PV-SG) and AI Out.
2. Remove the cover of the lower electronic compartment.
3. Use the and keys to move from one step of the
configuration program to the next step, see Figure 3.
4. Press key. The last character in the
first line of the display changes to an
exclamation point (!).
5. Use the and keys to increase or decrease the value in
the display or to scroll through the choices.
6. Press key to accept a value and move to the next step of
the configuration program (the default password is 1).
7. After entering the last value, allow 10 seconds before
removing power from the transmitter.
The following two configuration entries are the minimum required for
configuration (the default password is 1 from the LCD/keypad).
The following two parameters must be entered if the default values are
not satisfactory.
Lvl Ofst
(xxx)
LvlUnits!
xxx
Proc SG
(xxx)
Enter the actual specific gravity of the process liquid at
operating temperature (N/A for Interface or Density).
Enter the actual operating temperature of the process
Select the desired level units
(inches, cm, m, feet).
Enter the desired level reading when level is at the calibrated
zero reference (typically bottom of the displacer).
¿
¡
➂
➃
ProcTemp
xxx
LvlUnit
(select)
Liquid
Level
➂
In, cm, m, or ft.
➃
Level Offset
Process S.G.
Operating
Temp.
➀
➁
Liquid
Level
Displacer
➃
Level Offset
➀
Process
S.G.
➁
Operating
Temp.
48-640 E3 Modulevel
®
Displacer Level Transmitter - FOUNDATION fieldbus
™
