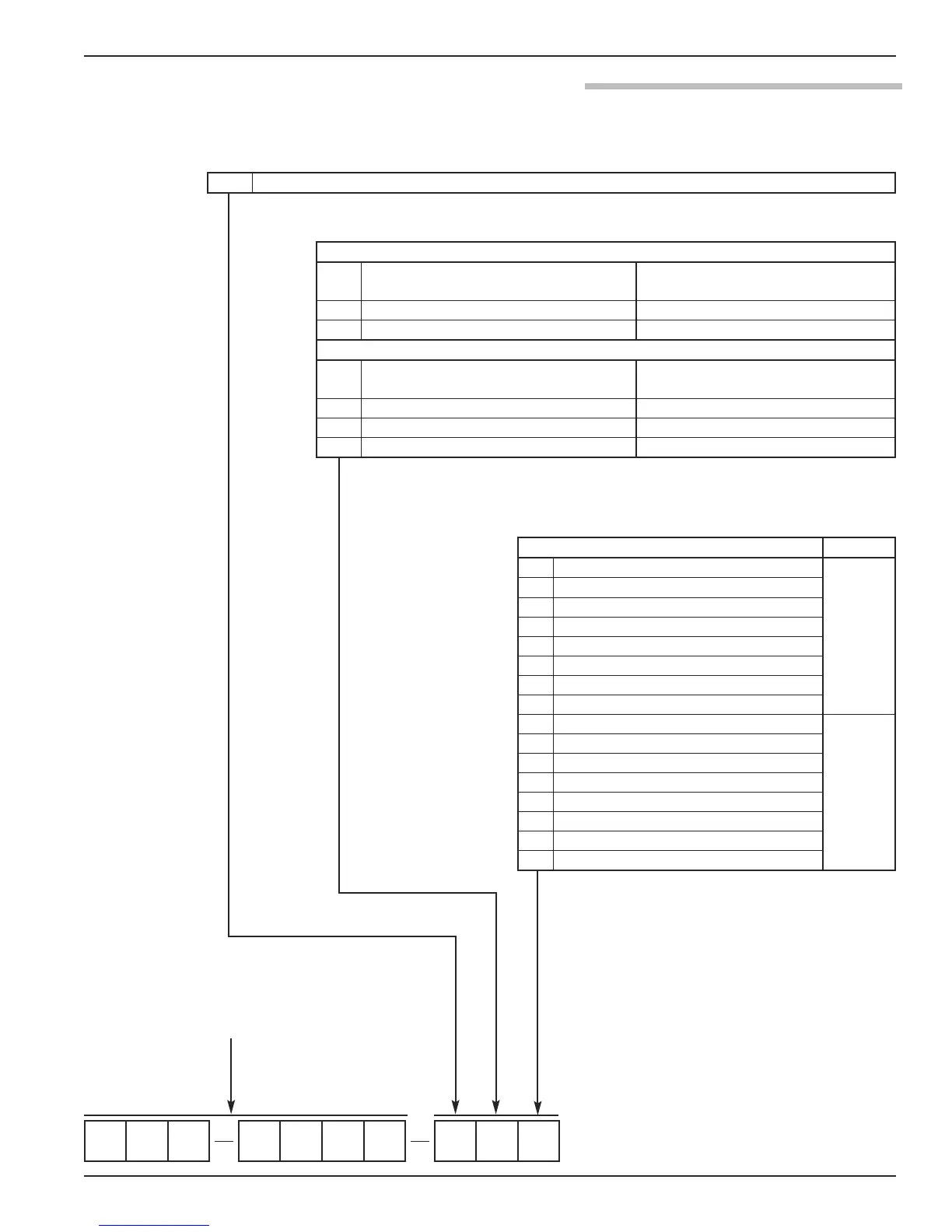

48-640 E3 Modulevel
®
Displacer Level Transmitter - FOUNDATION fieldbus
™
(see previous page)
FOUNDATION fieldbus
Maximum Process Temperature
Use with Specific Gravity and
Process Temperature codes (4th Digit):
+550 °F (+290 °C) J, K, L, A, B, C, M, N, P, D, E, F
+551 to +600 °F (+291 to +315 °C) M, N, P
∆
Maximum Process Temperature
Use with Specific Gravity and
Process Temperature codes:
+550 °F (+290 °C) J, K, L, A, B, C, M, N, P, D, E, F
+551 to +600 °F (+291 to +315 °C) M, N, P
+601 to +850 °F (+316 to +454 °C) E, N
∆ Cable for remote mounting transmitter is 037-3226-xxx up to +400 °F (+204 °C) and
037-3227-xxx (Belden 88777) above +400 °F (+204 °C) where -xxx is the length in feet
from 10 (-010) to 400 (-400) feet.
Cast aluminum, FM/CSA XP,
3
⁄4" NPT
1,3,4,6,8
Cast aluminum, FM XP, M20
Cast stainless steel, FM/CSA XP,
3
⁄4" NPT
Cast stainless steel, FM XP, M20
Cast aluminum, FM/CSA IS,
3
⁄4" NPT
Cast aluminum, FM IS, M20
Cast stainless steel, FM/CSA IS,
3
⁄4" NPT
Cast stainless steel, FM IS, M20
Cast aluminum, ATEX/IEC IS,
3
⁄4" NPT
1,3,4,6,8
«
Cast aluminum, ATEX/IEC IS, M20
Cast stainless steel, ATEX/IEC IS,
3
⁄4" NPT
Cast stainless steel, ATEX/IEC IS, M20
Cast aluminum, ATEX/IEC XP,
3
⁄4" NPT
Cast aluminum, ATEX/IEC XP, M20
Cast stainless steel, ATEX/IEC XP,
3
⁄4" NPT
Cast stainless steel, ATEX/IEC XP, M20
« 9th digit = 8 applies to ATEX only.
