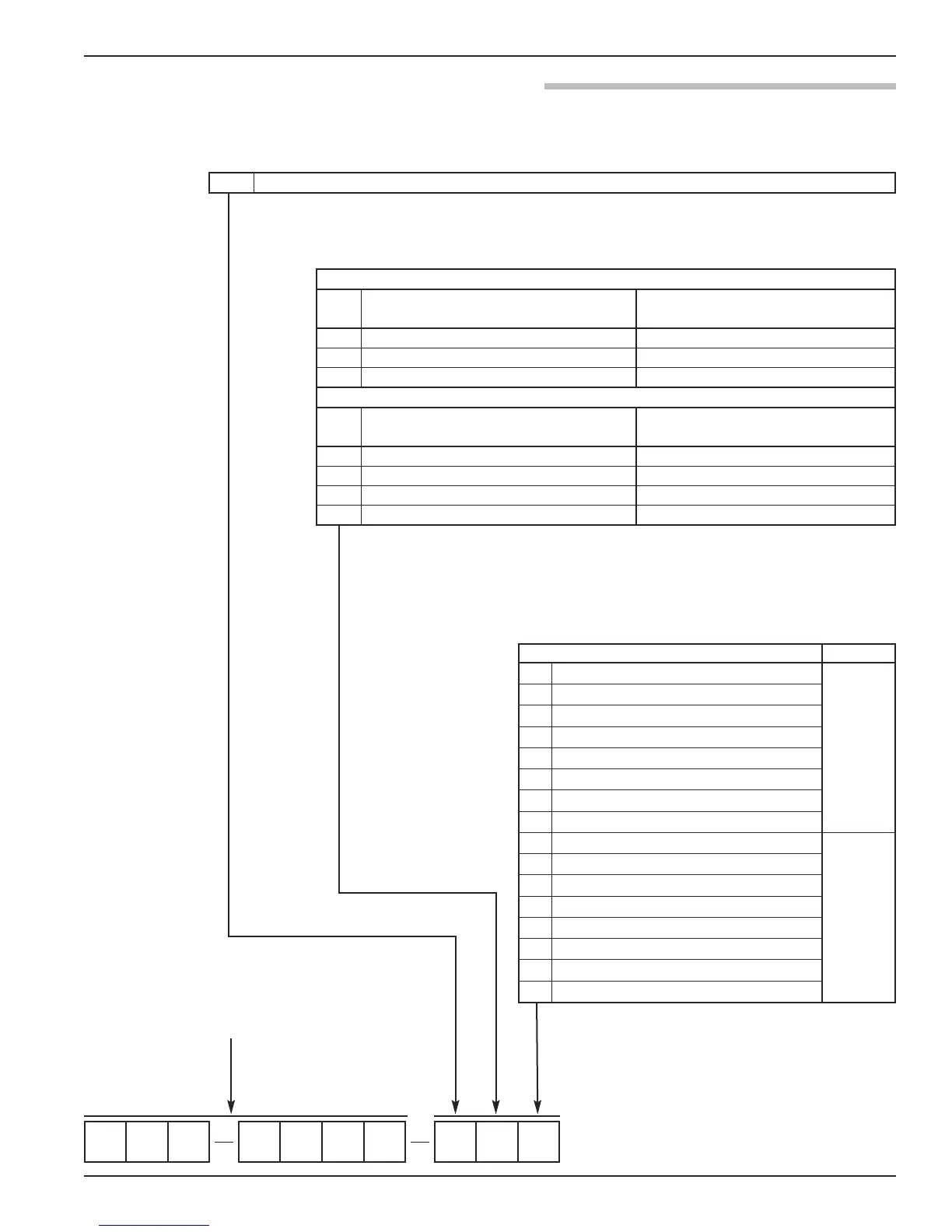

48-640 E3 Modulevel
®
Displacer Level Transmitter - FOUNDATION fieldbus
™
FOUNDATION fieldbus
Maximum Process Temperature
Use with Specific Gravity and
Process Temperature codes (4th Digit):
+300 °F (+150 °C) K
+301 to +450 °F (+151 to +230 °C) B, N
+451 to +500 °F (+231 to +260 °C) E
≈
Maximum Process Temperature
Use with Specific Gravity and
Process Temperature codes (4th Digit):
+300 °F (+150 °C) K
+301 to +450 °F (+151 to +230 °C) B, K, N
+451 to +500 °F (+231 to +260 °C) E, N
+501 to +800 °F (+261 to +427 °C)
E, N ∆
Cast aluminum, FM/CSA XP,
3
⁄4" NPT
1,2,3,4,5,6,8
Cast aluminum, FM XP, M20
Cast stainless steel, FM/CSA XP,
3
⁄4" NPT
Cast stainless steel, FM XP, M20
Cast aluminum, FM/CSA IS,
3
⁄4" NPT
Cast aluminum, FM IS, M20
Cast stainless steel, FM/CSA IS,
3
⁄4" NPT
Cast stainless steel, FM IS, M20
Cast aluminum, ATEX/IEC IS,
3
⁄4" NPT
1,2,3,4,5,6,8
«
Cast aluminum, ATEX/IEC IS, M20
Cast stainless steel, ATEX/IEC IS,
3
⁄4" NPT
Cast stainless steel, ATEX/IEC IS, M20
Cast aluminum, ATEX/IEC XP,
3
⁄4" NPT
Cast aluminum, ATEX/IEC XP, M20
Cast stainless steel, ATEX/IEC XP,
3
⁄4" NPT
Cast stainless steel, ATEX/IEC XP, M20
(see previous page)
«
9th digit = 8 applies to ATEX only
≈
Cable for remote mounting transmitter is 037-3226-xxx up to +400 °F (+204 °C) and
037-3227-xxx (Belden 88777) above +400 °F (+204 °C) where -xxx is the length in feet
from 10 (-010) to 400 (-400) feet.
∆
4th digit N with 9th digit 8 has a maximum temperature of +700 °F (+371 °C).
