57-600 Eclipse
®
Guided Wave Radar Transmitter

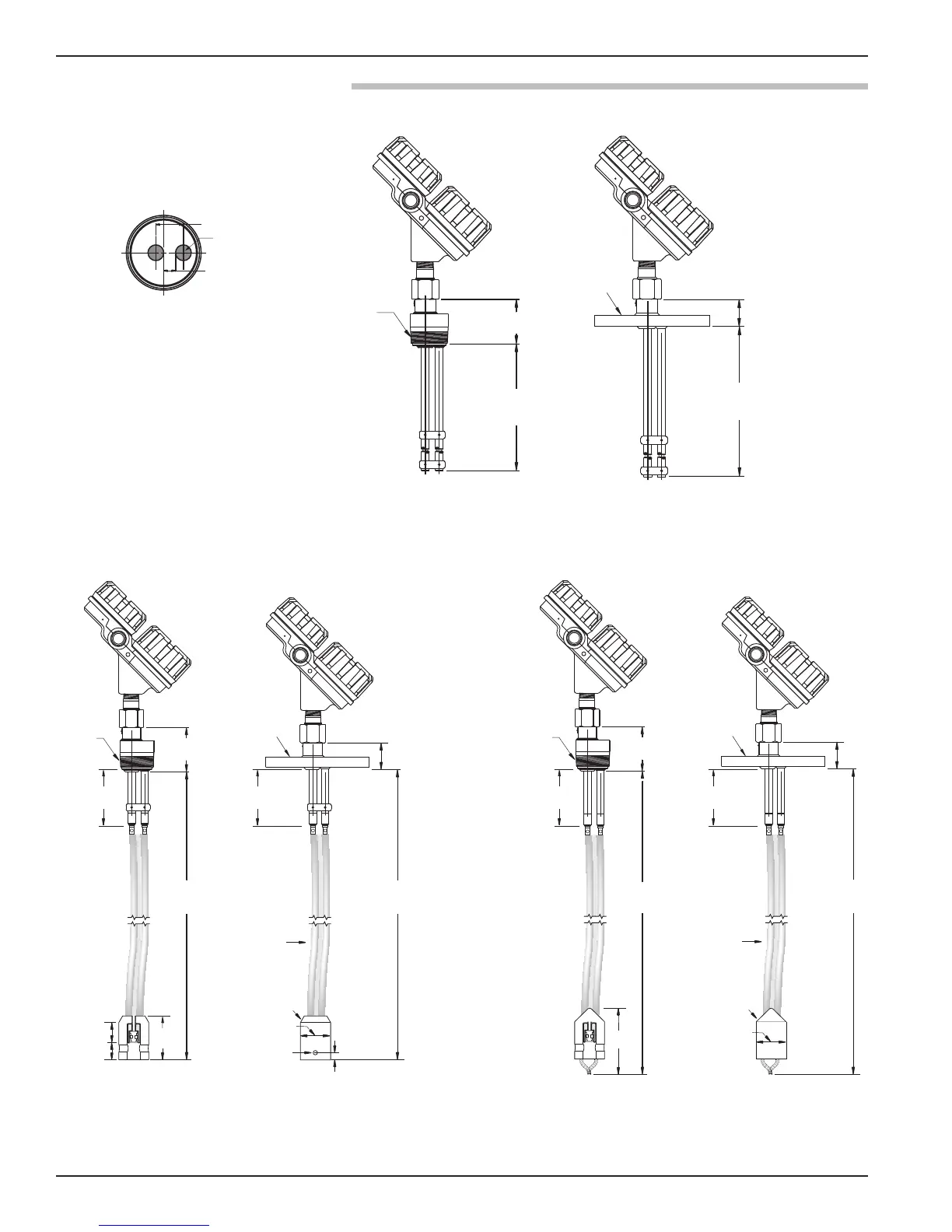

3.6.6 Physical – Twin Rod Probes
inches (mm)
Eclipse
®
with 7x7 Twin Rod Flexible Probe
Flanged or NPT Connection
1.75
(44)
Probe
Insertion
Length
0.1875" Ø Cable
0.75" (19)
Ø 0.50" (12) Hole
TFE Weight
Ø 2.0" (50)
Probe
Insertion
Length
2.80
(71)
NPT Process
Connection
Mounting
Flange
2.25"
(57)
1.25"
(32)
3.88
(99)
TFE Weight
10 oz. (284 grams)
3.00
(76)
3.00
(76)
Eclipse
®
with 7x5 Twin Rod Bulk Solids Flexible Probe
Flanged or NPT Connection
3.25
(83)
Probe
Insertion
Length
0.1875" Ø Cable
316SS Weight
Ø 2.0" (50)
Probe
Insertion
Length
3.13
(80)
NPT Process
Connection
Mounting
Flange
6.00
(152)
316SS Weight
5 lb. (2268 grams)
3.00
(76)
3.00
(76)
4.96
(
126)
Probe
I
nsertion
Length
P
rocess
Conn.
5.08
(
129)
Probe
I
nsertion
Length
Mounting
Flange
Eclipse
®
with 7xB Twin Rod
Probe – Flanged Connection
Eclipse
®
with 7xB Twin Rod
Probe – NPT Connection
0.88 (22)
0.38 (10)
Ø .50 (13)
Rods
Twin Rod Probe
End View
