Mahindra 2810 Service Manual

3.1 DISASSEMBLY

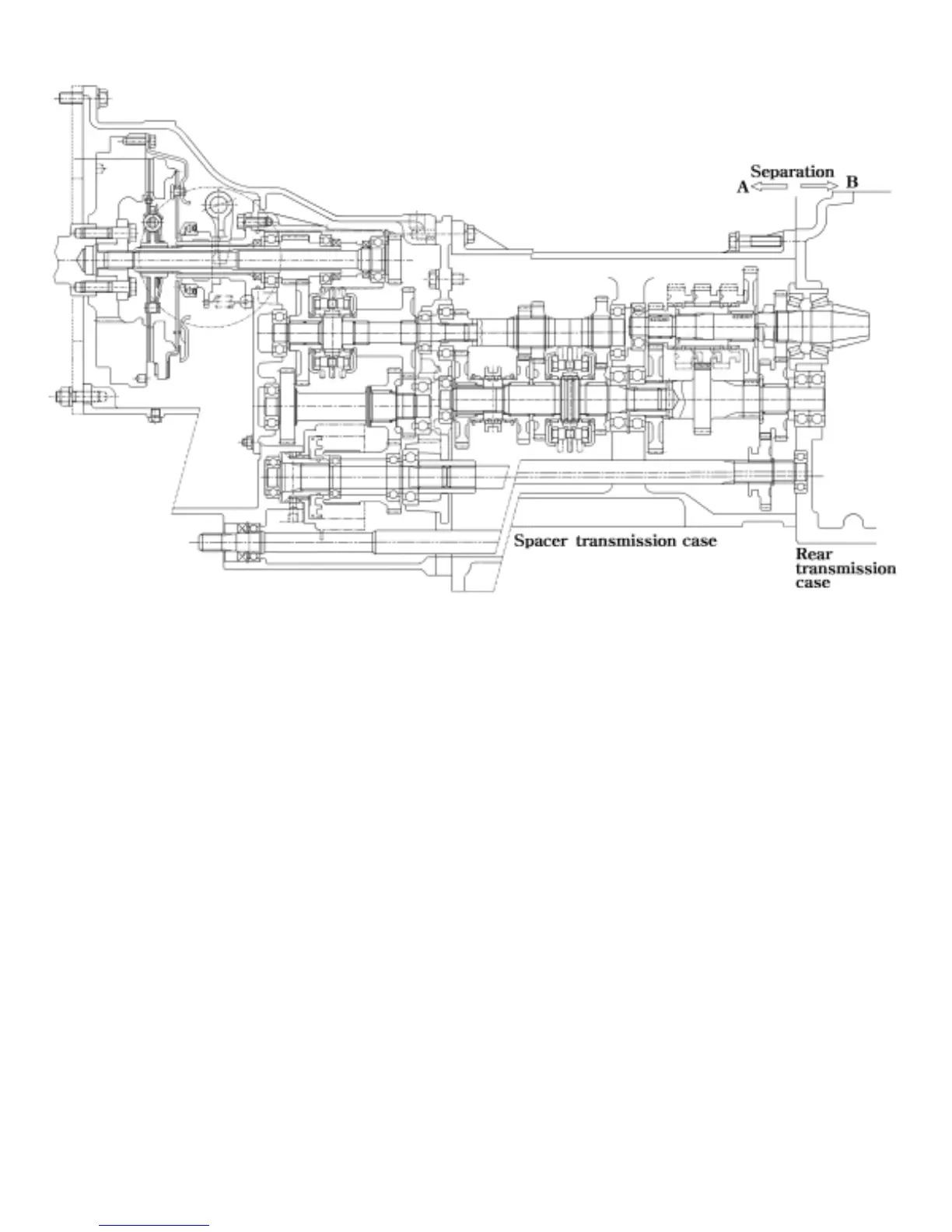

Fig.5-26
Separation the spacer transmission case and rear transmission case from each other referring
paragraph 5.(1) in SECTION 4.SEPARATION OF MAJOR COMPONENTS in chapter 2.
With this operation,the transmission is divided into parts A and B part A includes main speed shift and
mechanism and part B includes speed shifting and 4WD shifting mechanisms.(fig.5-26)
Note:
The separation of the gears mentioned in the figure is possible without dividing the front transmission
and the spacer transmission from each other
5-17

Mahindra 2810 Specifications

General

Engine Power	28 HP
Engine Cylinders	3
Drive	2WD
Engine Type	Diesel
Transmission	8 Forward + 2 Reverse
Steering Type	Manual
Clutch Type	Single
