Mahindra 60 Series User Manual

30
60 Series 2WD/4WD, Model - 8560
Controls
1. F-R Shuttle Shift Lever
2. Parking Brake Lever
3. Tilt Steering Pedal
4. Clutch Pedal
5. Hand Throttle Lever
6. Brake Pedal LH
7. Brake Pedal Latch
8. Brake Pedal RH
9. Foot Throttle
10. Auxiliary Valve Levers
11. Draft Control Lever
12. Range Shift Lever
13. Position Control Lever
14. Speed Shift Lever
15. Differential Lock Pedal
16. Operator’s Seat
17. 4WD Engagement Lever
18. IPTO Clutch Lever
19. Can Holder
1

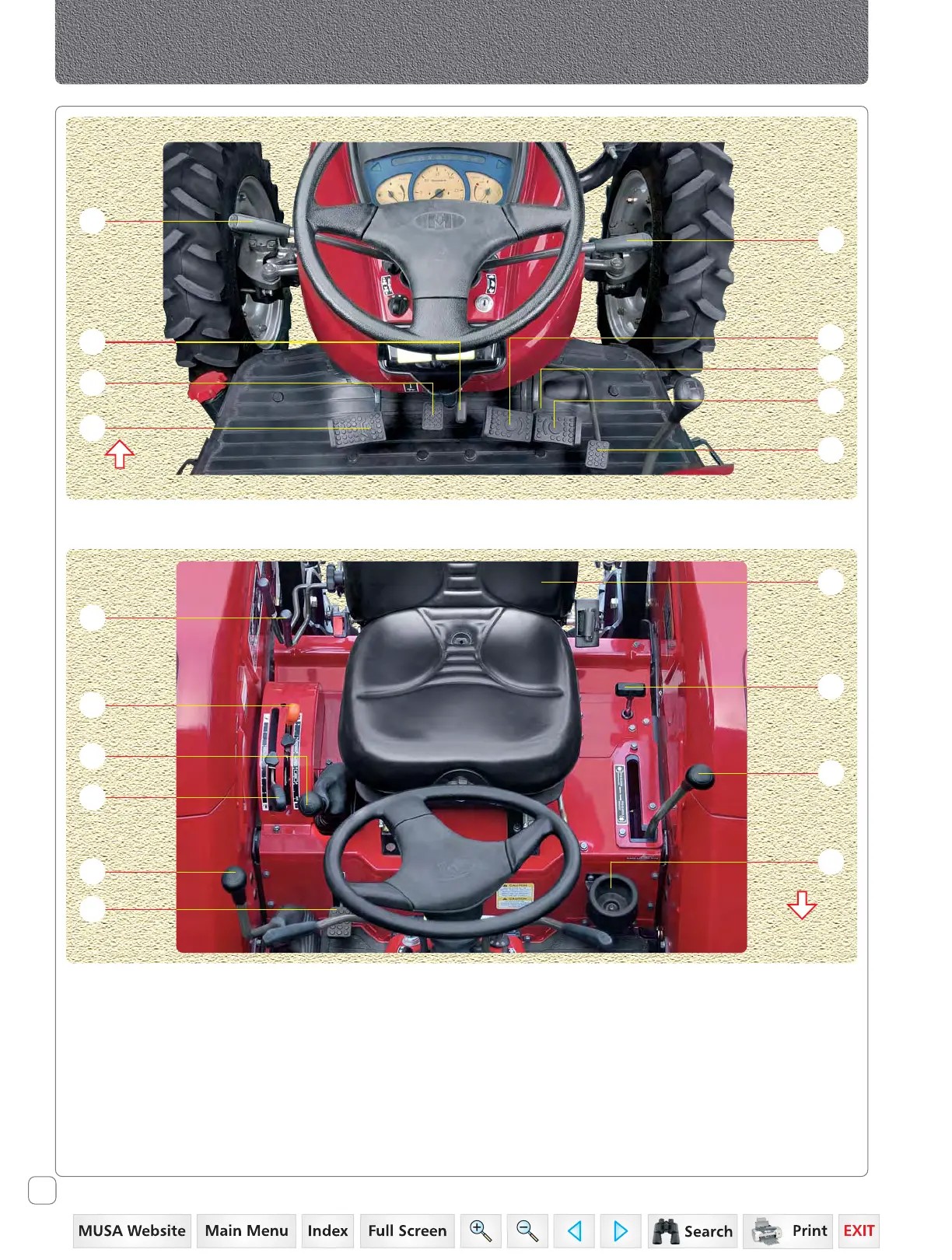

Operator’s Front Side Controls
Tractor Front
Operator’s LH & RH Side Controls
Tractor Front
11
3
2
9
8
7
17
18
13
12
10
4
6
5
16
14
15
19

Mahindra 60 Series Specifications

General

Engine Power	60 HP
Cylinders	4
Steering	Power Steering
Fuel Type	Diesel
Transmission	8 Forward + 2 Reverse
Brakes	Oil Immersed
Gears	8 Forward + 2 Reverse
Engine Type	4-Stroke, Direct Injection
