Mahindra 60 Series - Brake Pedal Free Play; Adjusting Brake Pedal Free Play

78
60 Series 2WD/4WD, Model - 8560

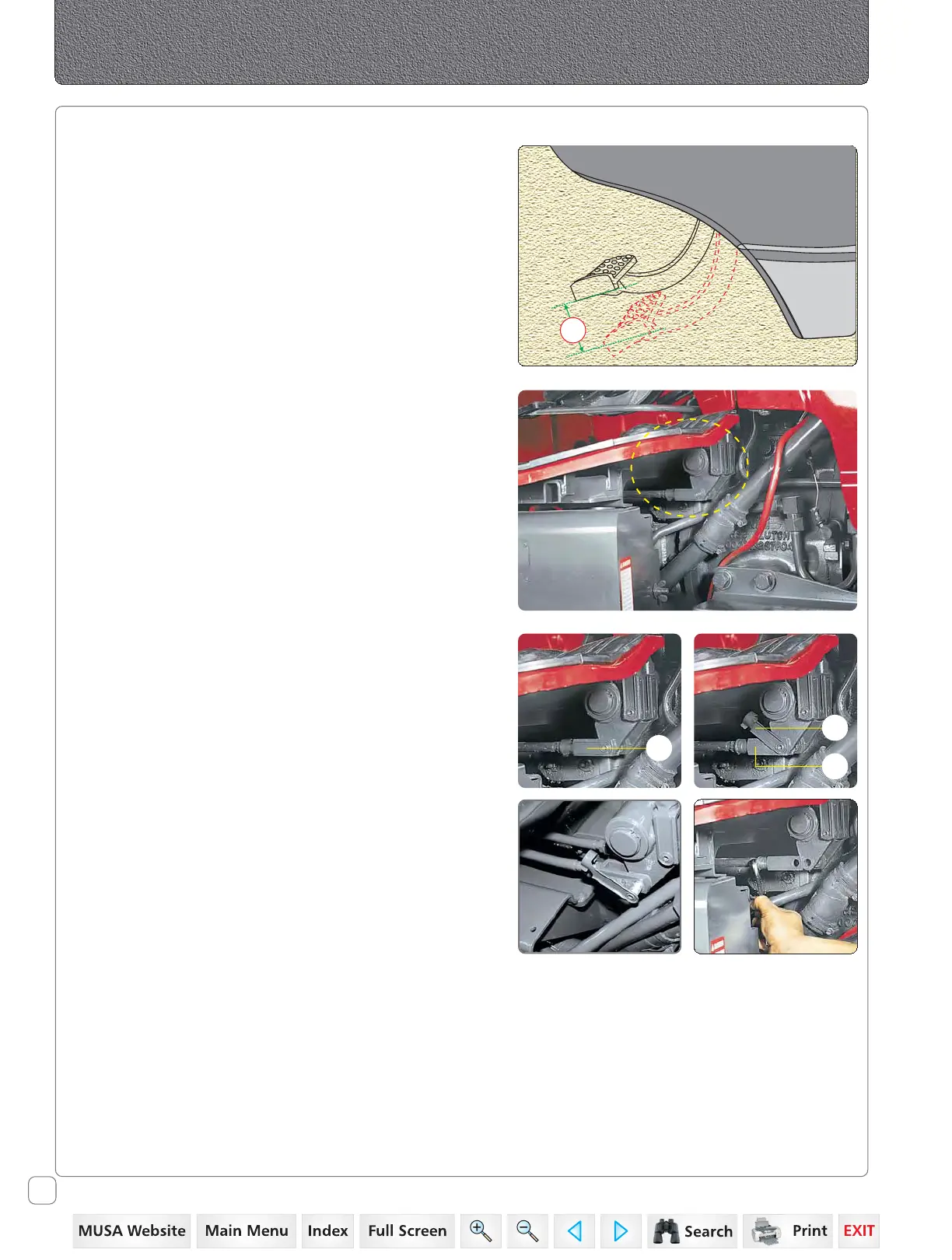

Check and adjust brake pedal free play
Measure free play of pedal stroke (A). Ensure free play is
within specified limits. If free play is not within specified
limits, adjust brake linkage as shown below.
Free Play - Distance 1 to 1.2 inch (25 to 30 mm)
1. Unlock the lock pin (B).
2. Pull out Lockpin (B) out of yoke (C).
3. Loosen jam nut (D).
4. Turn the yoke (C) anticlockwise to increase play and
clockwise to decrease play.
A
B
C
A
Brake Pedal Free Play
