37
60 Series 2WD/4WD, Model - 8560
Controls

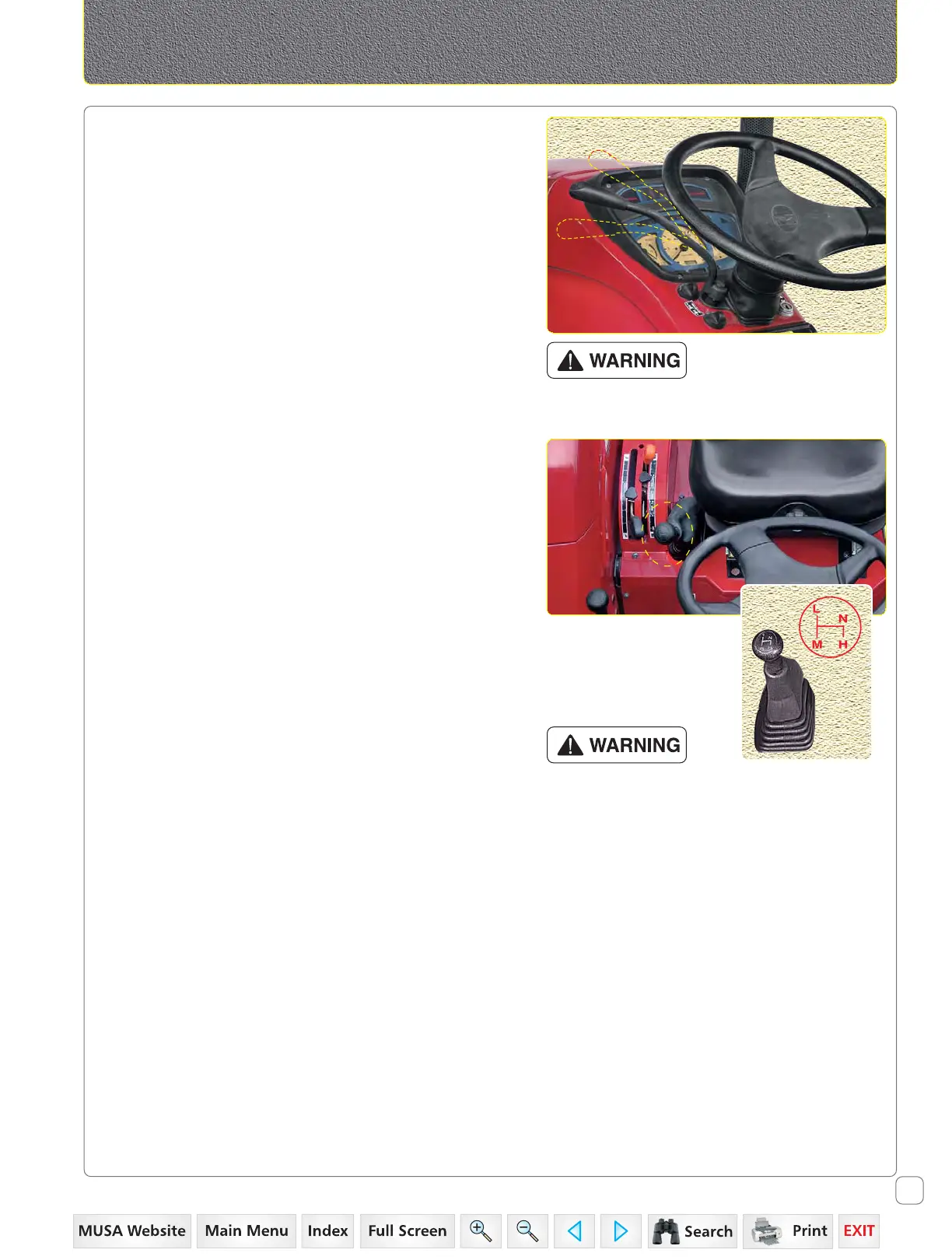

F-R Shuttle Shift Lever
This lever is located on L.H side of Steering. This lever
enables to choose the direction of tractor motion and has
three positions as follows:
1. Forward – for forward motion of tractor.
2. Reverse – for rearward motion of tractor.
3. Neutral
The lever can be engaged as follows.
1. Depress Clutch pedal and stop tractor motion
completely.
2. Choose Forward or Reverse mode as desired.
3. Release clutch pedal gradually.
Refer Chart for road speed of tractor in different positions.
Range Shift Lever
This lever is located on R.H side of operator’s seat. This lever
has four positions as follows:
1. High – for High speed range
2. Medium – for Intermediate speed range
3. Low – for Low speed range
4. Neutral
This lever enables 3 different speed options for every Speed
Gear selection. The lever can be engaged as follows.
1. Depress Clutch pedal and stop tractor motion
completely.
2. Choose H, M or L speed range to match work
application.
3. Release clutch pedal gradually.
Refer Chart for road speed of tractor in different positions.
Do not engage the F-R Shift lever while the
tractor is in motion.
Never shift Range shift lever while the tractor is
in motion.
